Philips 32PFL3406D/78 - Diagram B04 MT5363 Power, Type MT5363 (IC7700)

IC Data Sheets
EN 39L11M1.1L LA 8.
2011-Jun-24
back to
div. table
8.4 Diagram B04 MT5363 Power, Type MT5363 (IC7700)

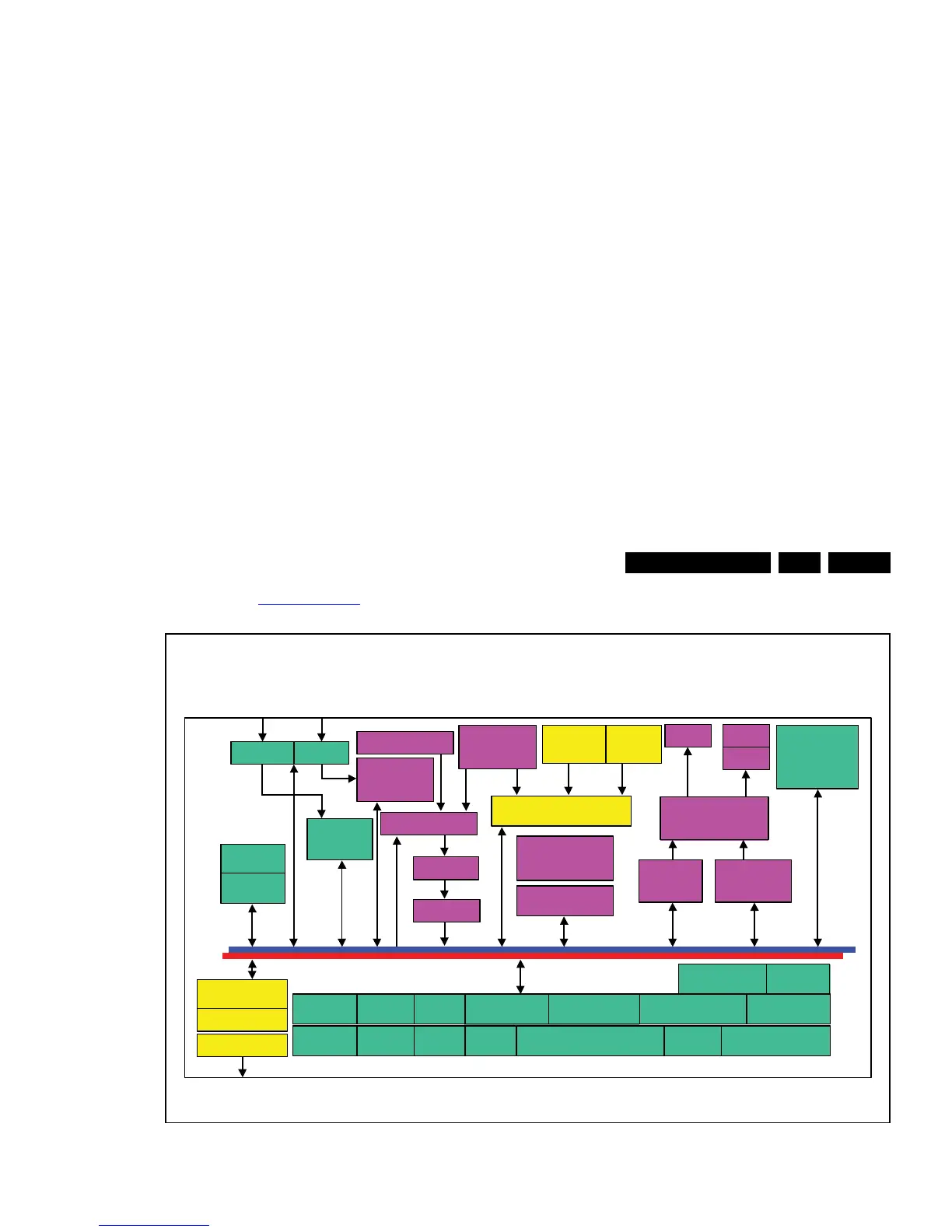

Figure 8-4 Internal block diagram
18850_300_100107.eps
100222
Block diagram
DVB-T ATD
CVBS/
YC Input
VADCx4
TV
Decoder
HDMI
Rx
HDMI In
I/F
Audio
Demod
Audio
Input
Audio
ADC
Panel
LVDS
CVBS
VDAC
TVE
DDR
DRAM
Controller
ARM
BIM
TS
Demux
VDO-In
PreProc
MDDi
Audio In
JPEG,MPEG
H.264
2-D Graphic
Mix andPost
Processing
OSD
scaler
Vplane
scaler/PIP
Audio DSP
IO Bus
Standby uP CKGEN
Audio I/F
Audio DAC
SPDIF, I
2
S
BScan PVR RTC
UART
MS,SD PWM NAND Flash
JTAG IrDA SIF USB2.0 Watchdog Serial Flash Servo ADC
