Philips 32PFL4007D/78 - Mechanical Instructions; Cable Dressing; Service Positions; Assembly;Panel Removal

Mechanical Instructions
EN 9TPM9.2L LA 4.
2012-Mar-30
back to
div. table
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal
4.4 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

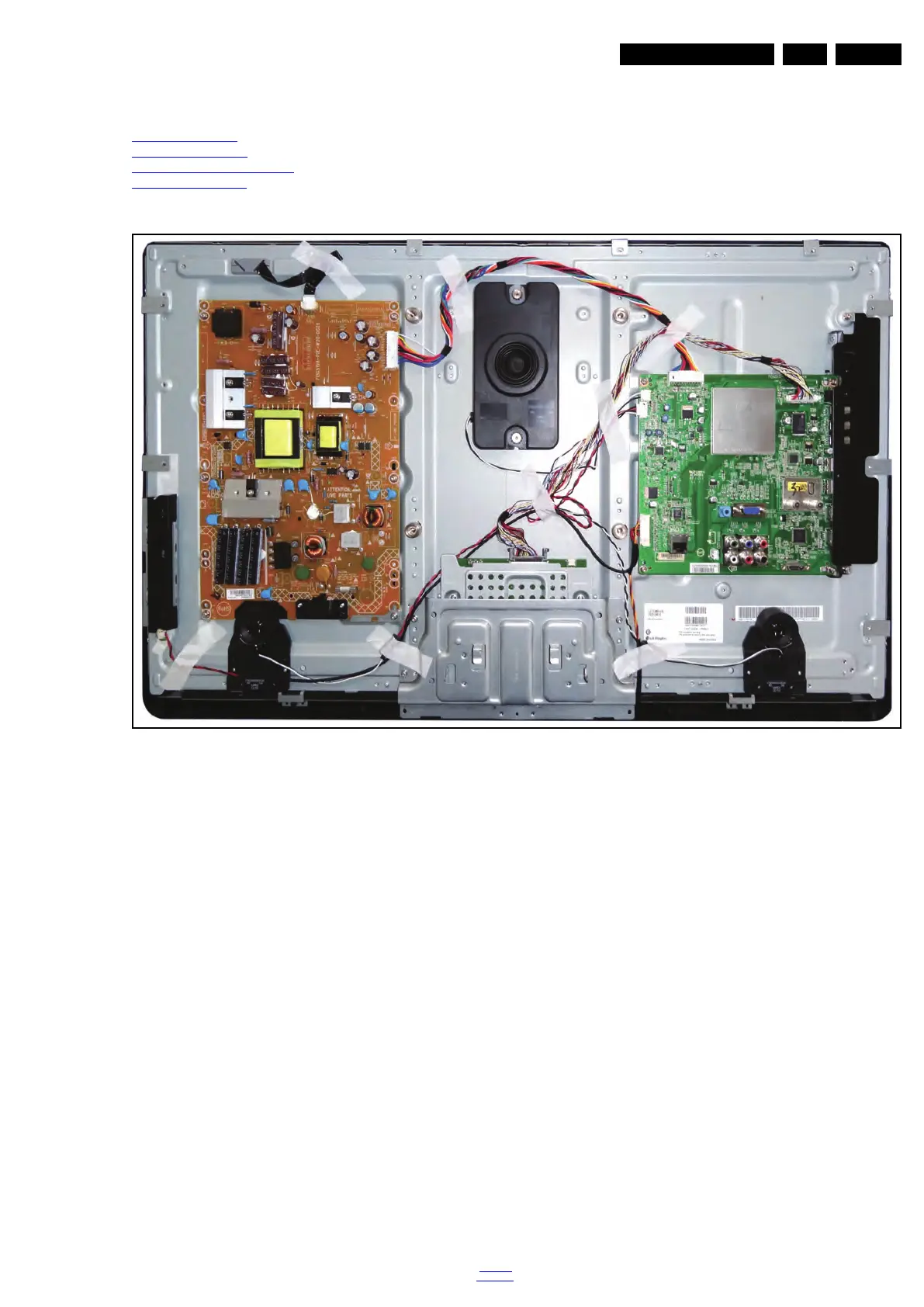

Figure 4-1 Cable dressing (32")
19260_100_120322.eps
120323
