Philips 32PFL5615D/7 - Page 4

Technical Specifications, and Connections
EN 4 Q552.1L LA2.
2010-Dec-29
back to
div. table
5 - CT Centre Tap: DC level fixation
6 - RD- Receive signal j
7 - GND Gnd H
8 - GND Gnd H
5 - CVI 2: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Rd - Audio - R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm jq
6 - Service Connector (UART)
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
7 - Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
8 - S-Video (Hosiden): Video Y/C - In (optional)
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
9 - Head phone (Output) (optional)
Bk - Head phone 32 - 600 ohm / 10 mW ot
2.3.3 Rear Connections - Bottom
10 - CVI 1: Video RGB - In, CVBS - In/Out, Audio - In/Out
See 5 - CVI 2: Cinch: Video YPbPr - In, Audio - In
11 - Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 ohm kq
12 - HDMI 2 (& 3 optional): Digital Video, Digital Audio - In
See 3 - HDMI: Digital Video, Digital Audio - In
13 - HDMI 1: Digital Video - In, Digital Audio with ARC - In/
Out

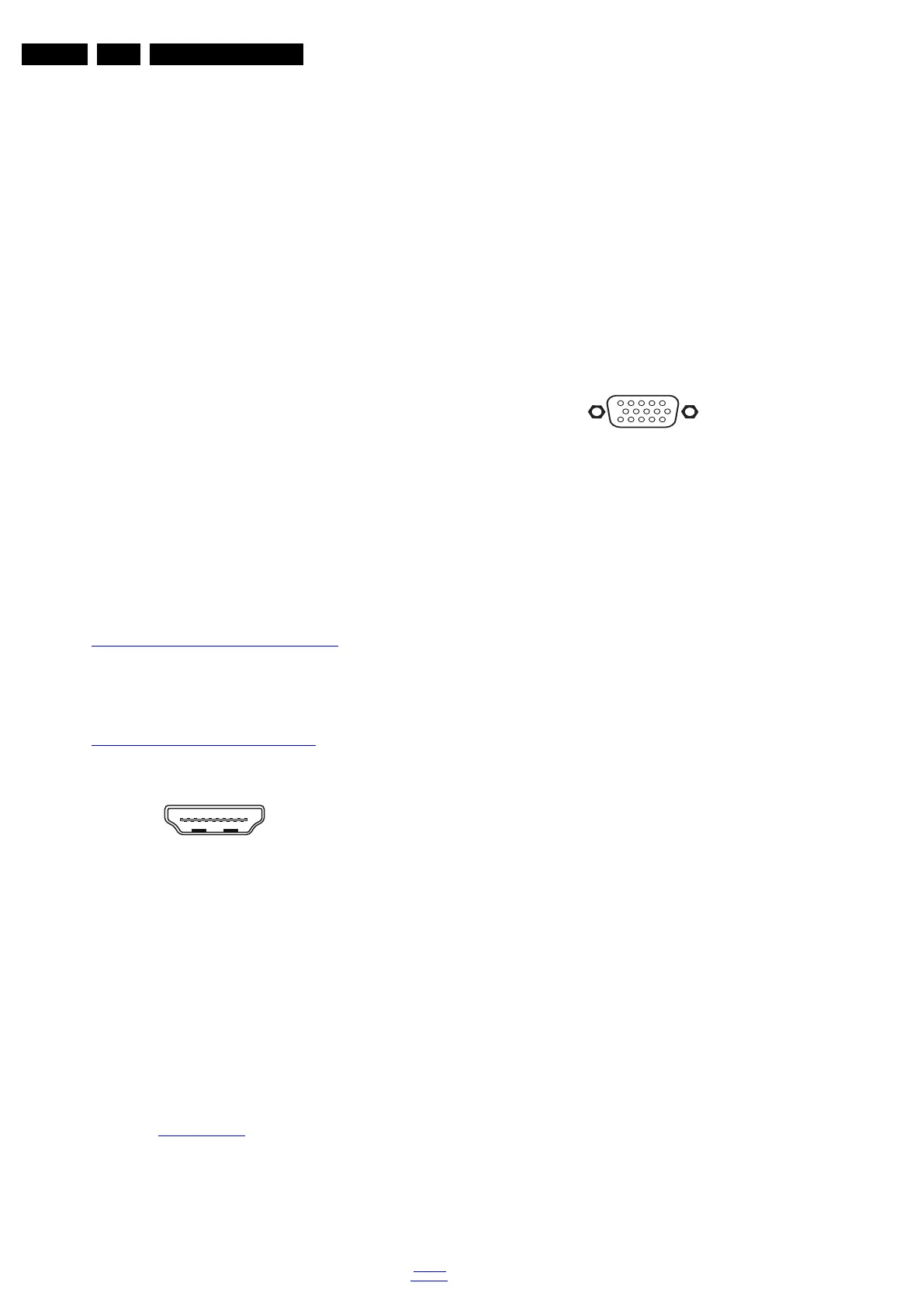

Figure 2-5 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
14 - Cinch: Audio - In (VGA/DVI)
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
15 - Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
16 - VGA: Video RGB - In
Figure 2-6 VGA Connector
1 - Video Red 0.7 V
PP
/ 75 ohm j
2 - Video Green 0.7 V
PP
/ 75 ohm j
3 - Video Blue 0.7 V
PP
/ 75 ohm j
4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 - n.c.
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
2.4 Chassis Overview
Refer to chapter Block Diagrams for PWB/CBA locations.
10000_017_090121.eps
090428
19
1
18 2
1
6
10
11
5
15
10000_002_090121.eps
090127
