7.2 Power Supply

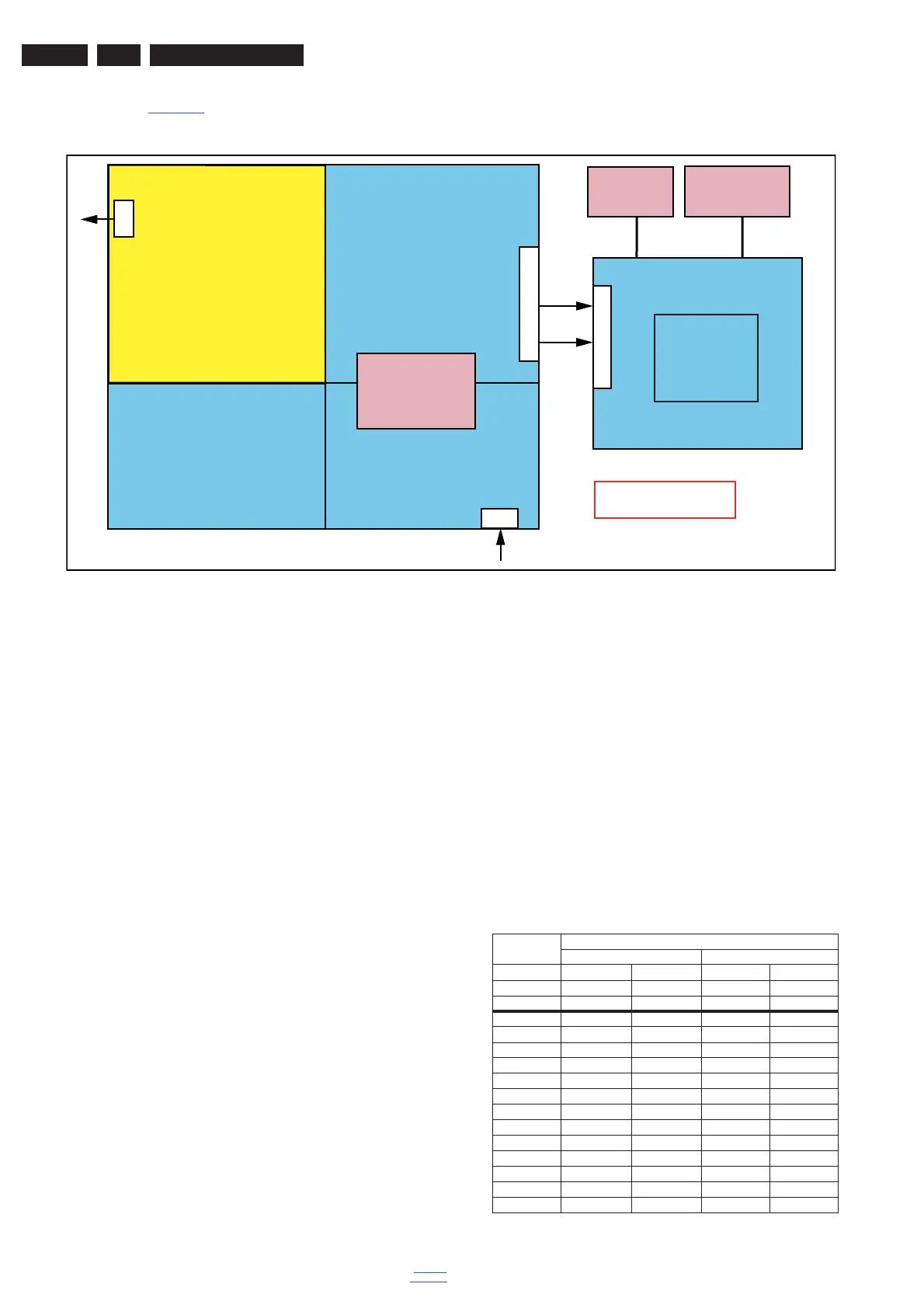

Refer to figure Figure 7-3 for the power architecture of this
platform.
Figure 7-3 Power Architecture
7.2.1 Power Supply Unit
All power supplies are a block box for Service. When defective,
a new board must be ordered and defective one must be
returned,unless the main fuse of the board is broken. Always
replace a defective fuse with one with the correct
specifications! This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.
Important delta’s with the AP 3000 series platform are:
• New power architecture for LED backlight
• “Boost” signal is now a PWM-signal + continuous variable.
The control signals are:
• Stand-by
• Lamp “on/off”
• DIM (PWM) (not for PSDL)
In this manual, no detailed information is available because of
design protection issues.
The output voltages to the chassis are:
• +3V3-STANDBY (Stand-by mode only)
• +12V (on-mode)
• +Vsnd (+24V) (audio power) (on-mode)
• +24V (bolt-on power) (on-mode)
• Output to the display; in case of
- IPB: High voltage to the LCD panel
- PSL and PSLS (LED-driver outputs)
- PSDL (high frequent) AC-current.
7.2.2 Diversity
The diversity in power supply units is mainly determined by the
diversity in displays.
The following displays can be distinguished:
• CCFL/EEFL backlight: power board is conventional IPB
• LED backlight:
- side-view LED without scanning: PSL power board
- side-view LED with scanning: PSLS power board
- direct-view LED without 2D-dimming: PSL power board
- direct-view LED with 2D-dimming: PSDL power board.
PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers
with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight
with 2D-dimming.
7.2.3 Connector overview
Table 7-1 Connector overview
Display power
Platform
MST6931
PFC
Platform power
1 power- PCB
AMP
LVDS
AMP
Low stby
power
Ac-input + Mains filter
BL-ON/OFF
AC IN
DIM
12V
12V24V
24V
5V
Display Interfacing
CN8901 for 715G5654
CN8101 for 715G5670
CN9901
CN701
19450_202_130128.eps
130128
Connector
32PFL3008/98/39PFL3008/98 42PFL3008/98
no. CN8901 CN9902 CN8101 CN9102
Descr. to panel to SSB to panel to SSB
Pin CN8901 CN9902 CN8101 CN9102
1 LED-source n.c. VLED+ n.c.
2 n.c. +5.2V n.c. +5V
3LED-1+5.2VLED1+5V
4n.c.PS_ONLED2PS_ON
5n.c.+24Vn.c.+24V
6n.c.+24Vn.c.+24V
7n.c.GNDn.c.GND
8n.c.GNDn.c.GND
9 n.c. GND LED4 GND
10 LED-1 +12V LED3 +12V
11 n.c. +12V n.c. +12V
12 LED-source DIM VLED+ PDIM
13 - ON/OFF - ON/OFF
