Philips 39PFL3008/98 - Video and Audio Processing - MST6931 XP

Circuit Descriptions
EN 30 TPS10.1A LA7.
2013-Jul-05
back to
div. table

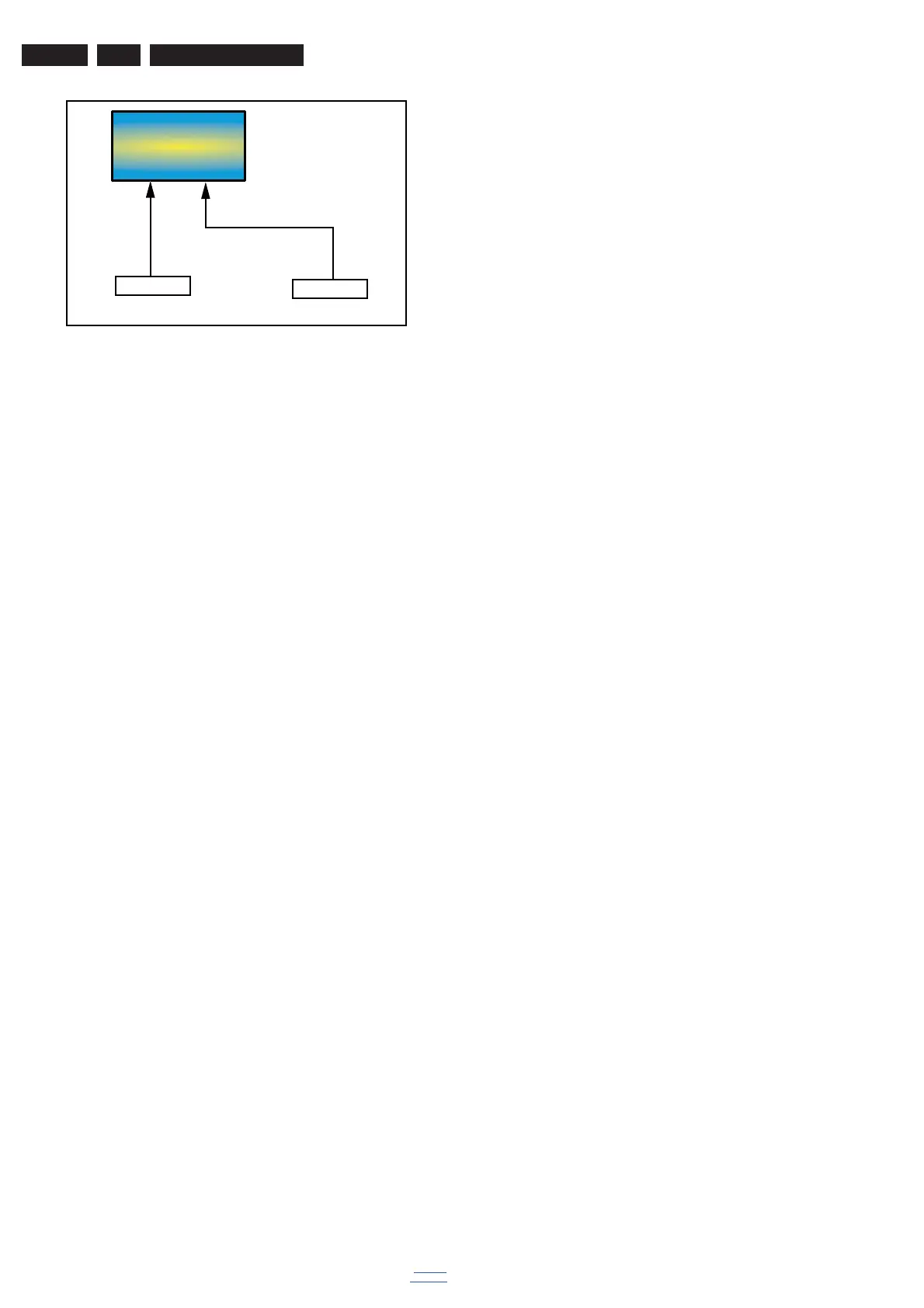

Figure 7-6 HDMI input configuration
The HDMI connector has the following specifications:
• +5V detection mechanism
• Stable clock detection mechanism
• Integrated EDID
• HPD control
• Sync detection
• TMDS output control
• CEC control
7.6 Video and Audio Processing - MST6931XP
The MST6931XP is the main audio and video processor (or
System-on-Chip) for this platform. It has the following features:
• Multi-standard digital video decoder (MPEG-2, H.264,
MPEG-4)
• Integrated NTSC/PAL/SECAM Video decoder
• Integrated motion accurate picture processing
• High definition ME/MC
• Extended colour gamut and colour booster
• Integrated USB2.0 host controller
• Multi-standard TV Sound Processor
• High Performance Micro-processor
• RealMedia Decoder
The MST6931XP combines front-end video processing
functions, such as NESC/PAL/SECAM Video Decoder,
MPEG-2/H.264 decoding, analog video decode and HDMI
reception, with advanced back-end video picture
improvements. It also includes next generation Motion
Accurate Picture Processong. High flat panel screen
resolutions and refresh rates are supported with formats
including 1280 × 720 @ 60Hz and 1920 × 1080 @ 60Hz. On
top of that, optional support is available for 2D dimming in
combination with LED backlights for optimum contrast and
power savings up to 50%.
19450_205_130128.eps
130128
MST6931
ARX
BRX
CN501
HDMI 1
CN502
HDMI 2
