3.2 Assembly/Panel Removal( For 6432 series)
3.2.1 Rear Cover
Warning: Disconnect the mains power cord before removing the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set
2. Remove the fixation screws [2], [3] and [4] that secure the rear cover
3. Unplug the connector [5] from SSB, then gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear
cover from the set.

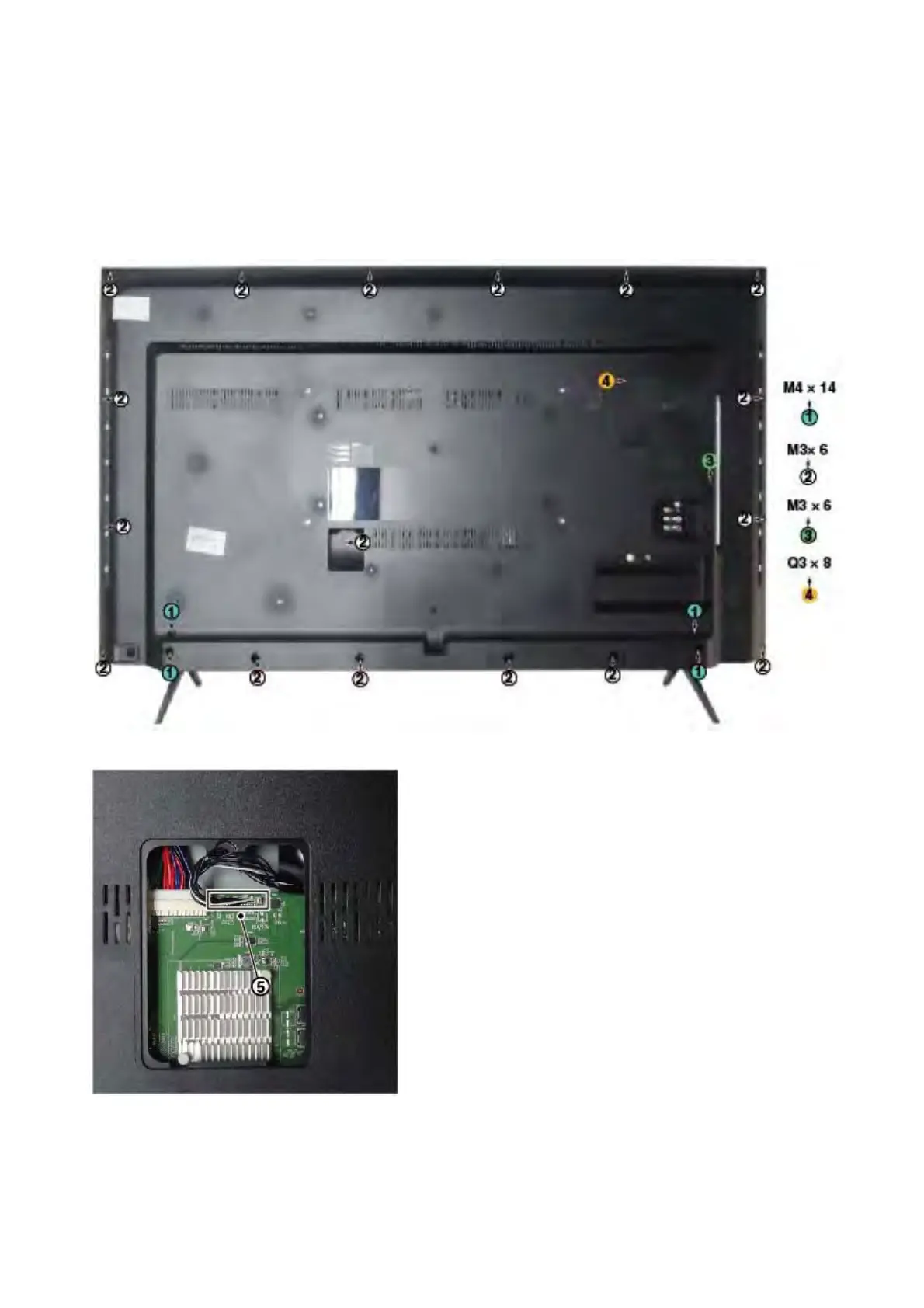

Rear cover removal[1]
Rear cover removal[2]
