3.2.8 WIFI module
1. Unplug the connector from the SSB..
2. Remove fixation screw that secure the WIFI module,
When defective, replace the whole unit.
3.2.9 LCD Panel
1. Remove the SSB as described earlier.
2. Remove the PSU as described earlier.
3. Remove the keyboard control panel as described earlier.
4. Remove the stand bracket as described earlier.
5. Remove the IR/LED as described earlier.
6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.
7. Remove all other metal parts not belonging to the panel.
8. Lift the LCD Panel from the bezel.
When defective, replace the whole unit.
3.3 Assembly/Panel Removal (for 72x2 series))
3.3.1 IR/LED Board
1. Remove the fixation screws [1] from the stand bracket
2. The IR/LED Board catch on the Back cover, need to slide it just like sliding out the battery door in the Remoter Control. Be kindly noted, the arrow [2]
indicates the direction to slide out the IR/LED module.
3. After carefully pull out the assy from the set, then unplug the connector [3] from the IR/LED board. The IR/LED Board can now be lifted and taken out
from the cover

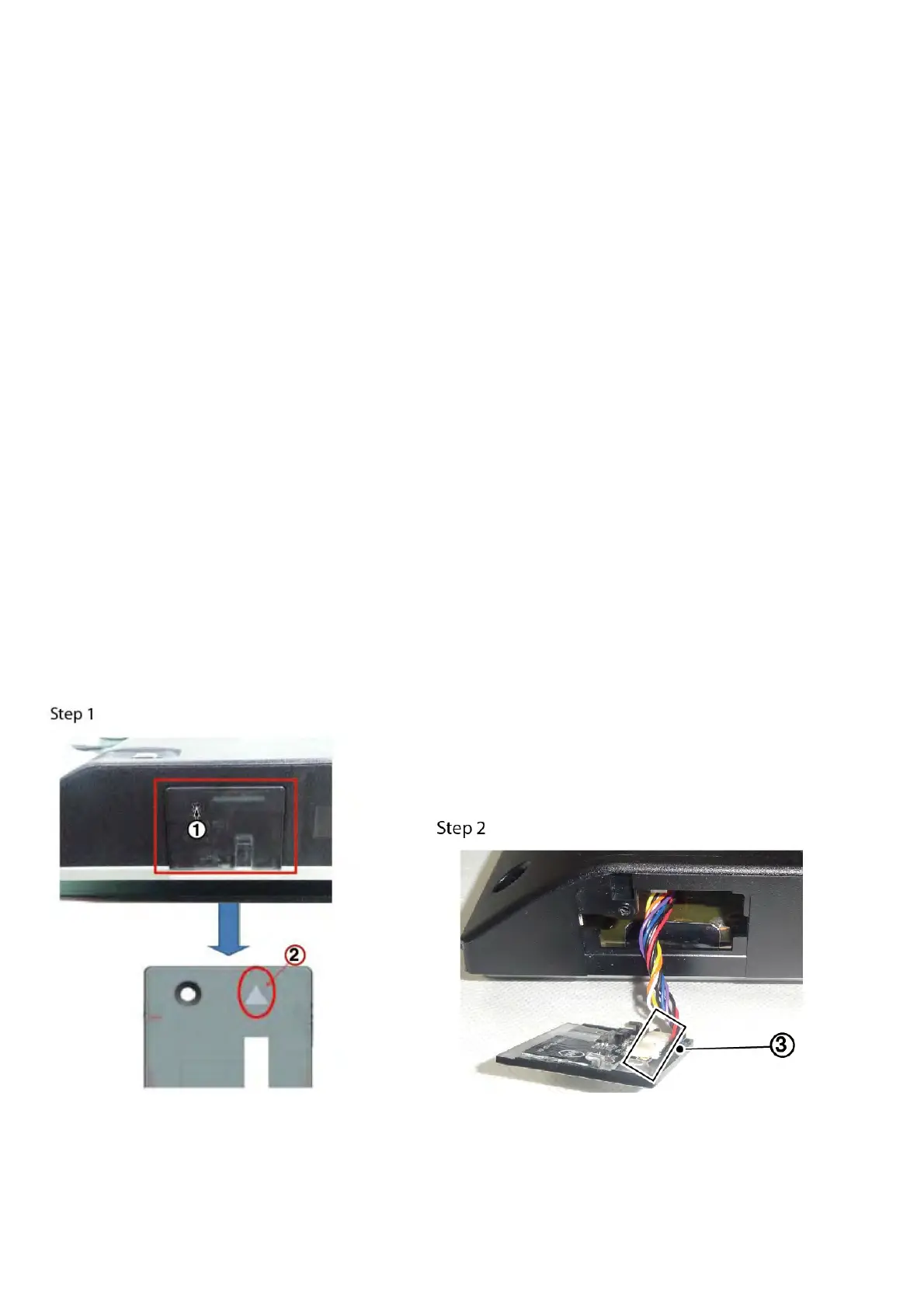

IR/LED Board removal[1] IR/LED Board removal[2]
