3.2.5 Power Supply Unit (PSU)
Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the
PSU.
1. Gently unplug all connectors from the PSU.
2. Remove all fixation screws from the PSU.
3. The PSU can be taken out of the set now.
3.2.6 IR board Control Unit

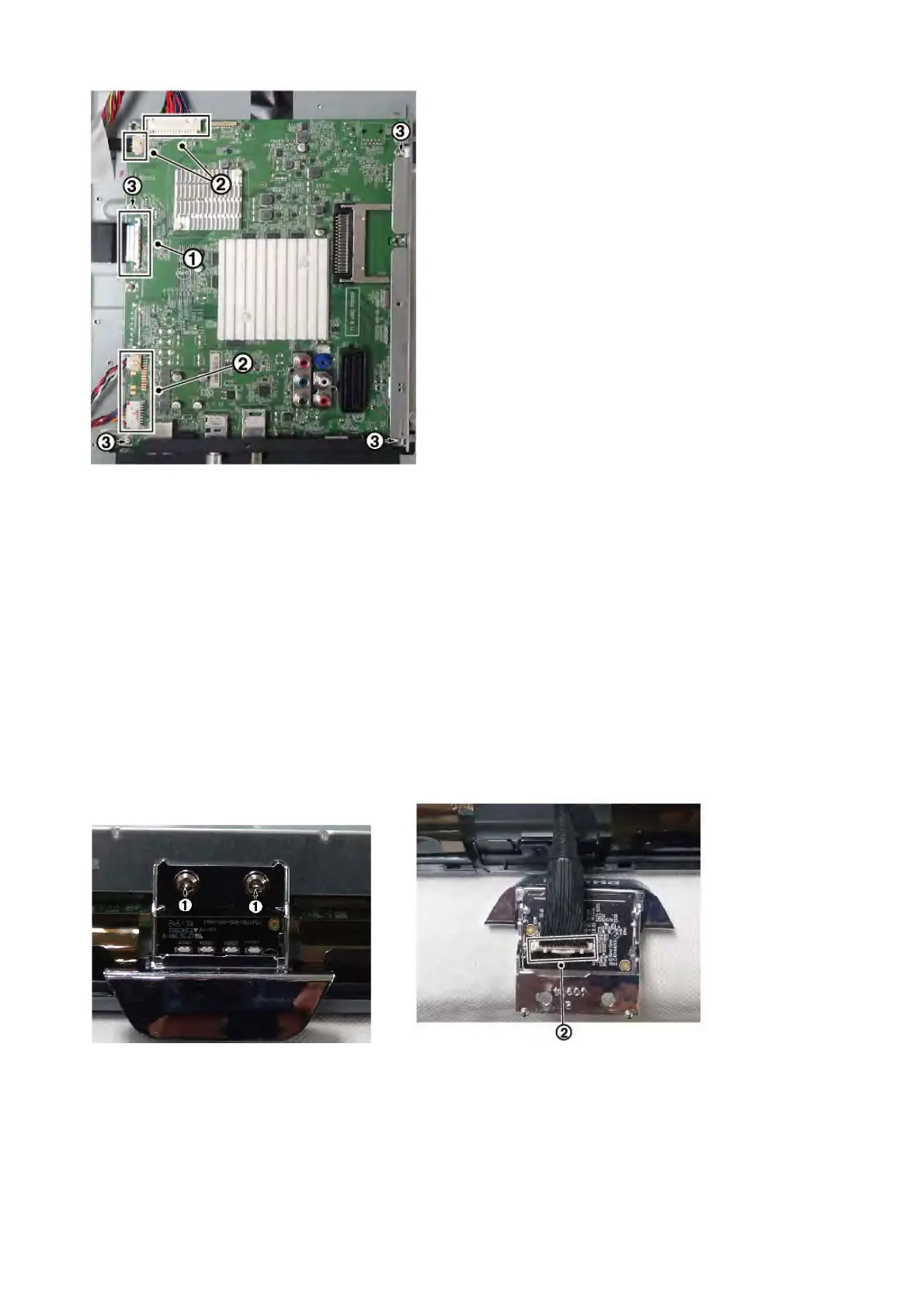

1. Remove the fixation screws [1] from the stand bracket, pull out the assy from the set.
3. Carefully Releas the cover secured by clips, then unplug the connector [2] from the IR/LED board. The IR/LED Board can now be lifted and
taken out from the cover.
IR/LED Board removal[1] IR/LED Board removal[2]
3.2.7 Speakers
1. Gently release the tapes that secure the speaker cables.
2. Unplug the speaker connector from the SSB.
3. Take the speakers out.
When defective, replace the both units.
