6. Circuit Descriptions
6.1 Introduction
The QM17.3E LA is a new chassis launched in Europe in 2017. The whole range is covered by MT5593U+ platform. The major deltas versus its
predecessor support DVB-C; DVB-T/T2; DVB S2, with also USB3.0,WIFI/BT, multi-media, smart TV functionality
The QM17.3E LA chassis comes with the following stylings:
 series xxPUS6432/xx
 series xxPUS7272/xx
6.1.1 Implementation
Key components of this chassis are:
 SCALER NT72324BG-35 PBGA-1057
 SCALER NT72333TBG/C TFBGA_484
 SCALER MT5593UGIJ HSBGA-900
 DEMODULATOR Si2168-C50-GMR QFN-48
 FLASH MX25L1606EM2I-12G 16Mb SOP-8(200m)
 FLASH W25Q16DVSSIG 16Mb SO-8
 NAND FLASH THGBMBG7D2KBAIL 16G BGA-153
 AUDIO Amplifier. TAS5760LDDCAR 20W TSSOP-48
 TUNER EUROPE TDSY-G480D
 TUNER EUROPE TDQS-A701F

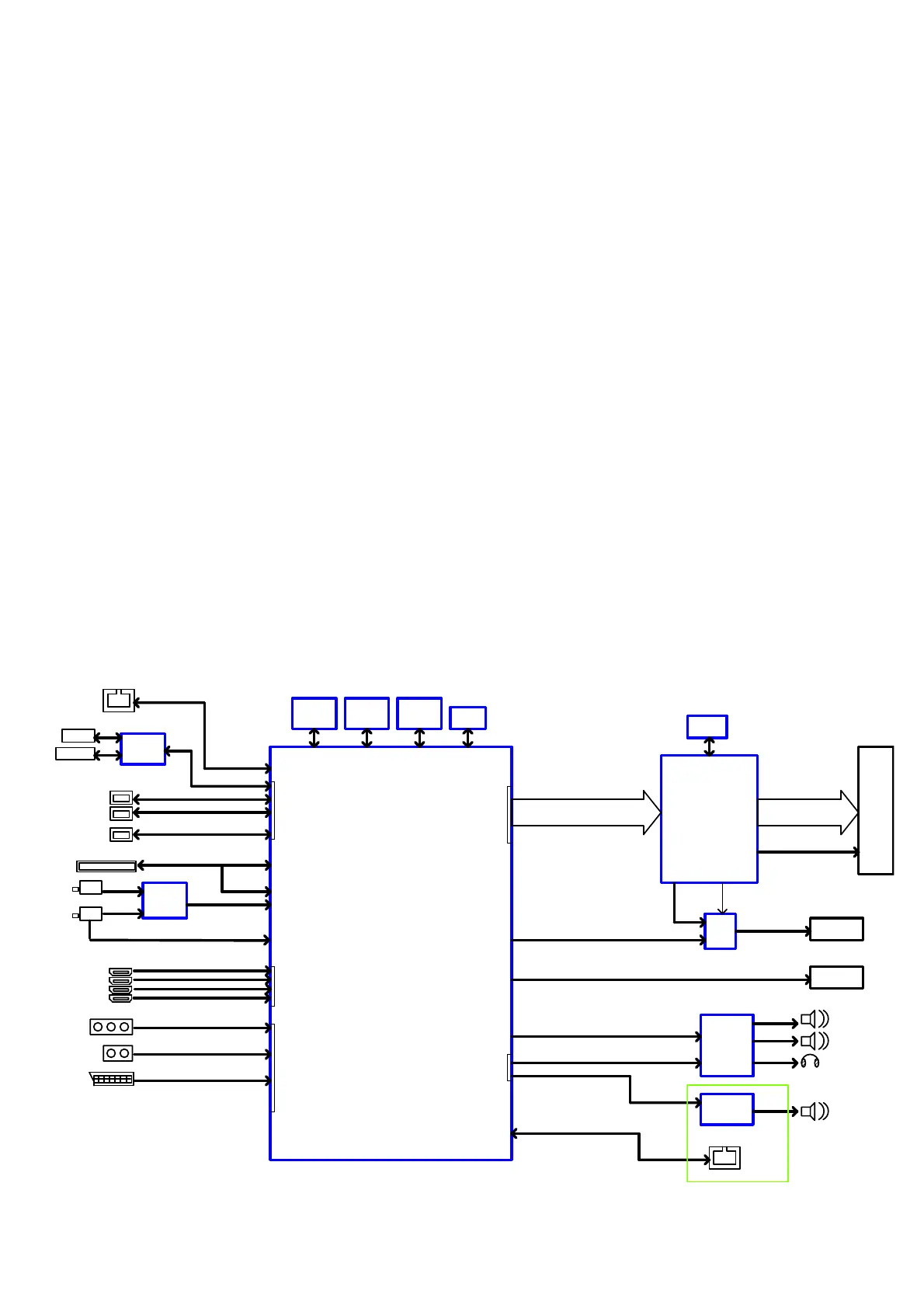

6.1.2 Block diagram
2 X (DDR2 512M bits)
1333 MHz
OPWM1
GPA22
2 X DDR3
1833
4G bit
2 X DDR3
1833
4G bit
1 X DDR3
1833
4G bit
eMMC
8 GB
Ethernet
USB 2.0
USB 2.0
USB 3.0
USB 2.0
USB 2.0
USB 2.0
USB 3.0
CA
SPI
TS input
Parallel TS[D0:D7]
DVB-
T/T2/S/S2
DEMOD
sI216X
MT5593U+
Dual CA17 + 2xCA7
1MB L2 CAche
Mali T624 MP3
ME/MC
HEVC UHD50/60
LVDS/Vx1
Transmitter
IF input
HDMI
Rx
Analog
I/O
HDMI port0 + MHL
HDMI port1
HDMI port2
HDMI port3
RGB/CVBS
Audio L/R
YPbPr
PCMCIA
8-Lane V X 1
Tcon
UHD50
NT72333
UHD50 FRC
MEMC
Audio AMP
TAS5760
ADAC
ADAC
Digital
I2S
PWM
Audio AMP
APA2010
SPI Flash
16Mb
PWM
IF
Disp Control (X4)
Wi-Fi 11AC
BT
Wi-Fi
Bluetooth
RJ45
Satelite
Tuner
Hybrid
Tuner
DVB S/S2
DVB-C/T/T2
8-Lane V X 1
Bathroom SPK
(Mono)
Headphone
Speaker
AMBI-SPI-OUT
SPI
switch
SPI-select
AMBI-SPI-NVT
(Dynamic)
AMBI-SPI-MTK(Static)
AMBI-LIGHT
BL-DIMMING
BACKLIGHT
SCART
Audio
Video
Dp/Dn
Dp/Dn
Dp/Dn
Dp/Dn + Dp/Dn_TxRx
CI interface
TxRx-p/n
TS input
HDMI
U0TxRx RJ48 SXP
Uart & RS232
Uart/RS232
For HTV only
FHD 50 Hz UHD 50 Hz
