PHILIPS

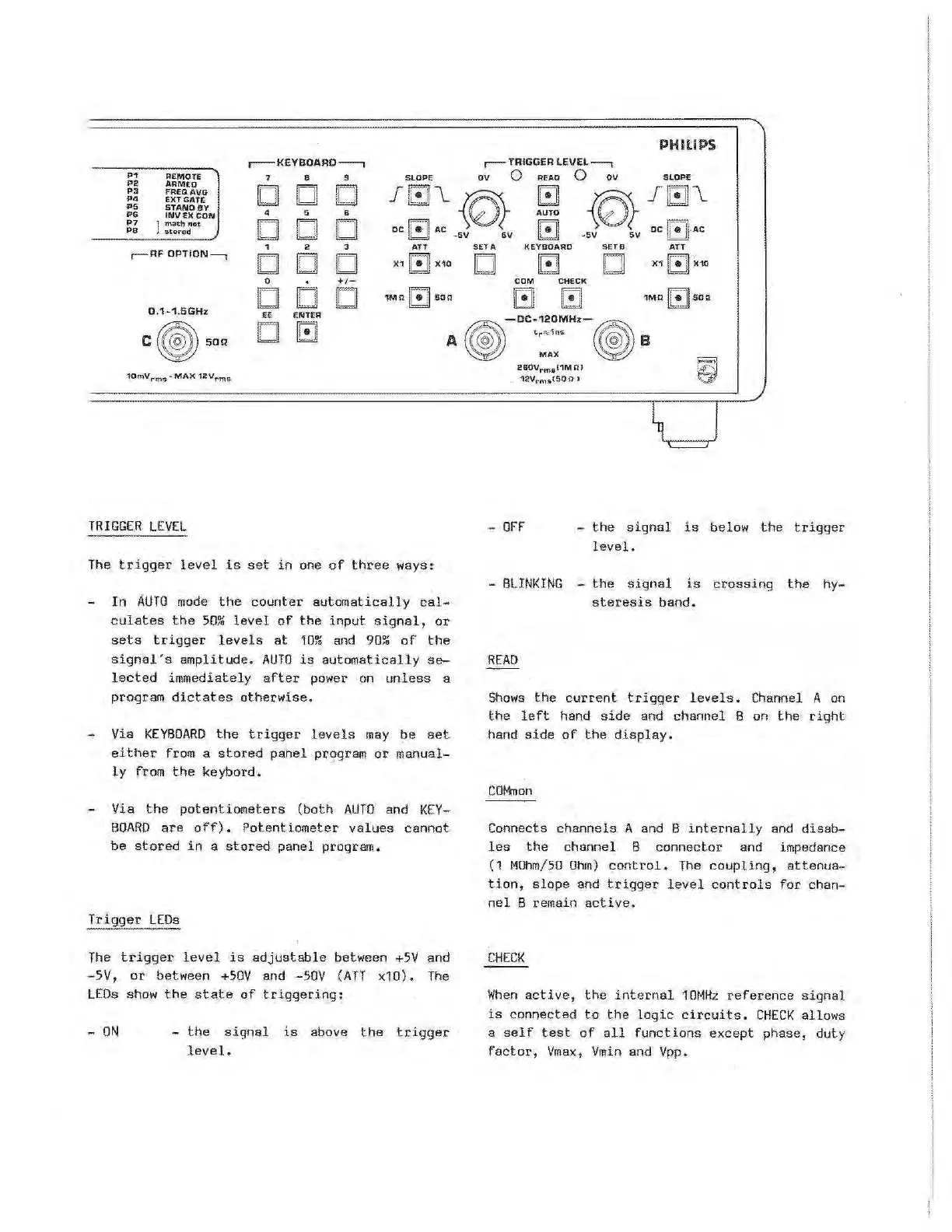

,-KEYBOARD---, ,.-TRIGGER LEVEL--,
8 9 SLOPE OV 0 READ 0 OV SLOPE
P1
P2
P3
P4
P5
P6
P7
PB
REMOTE
ARM EO
FREQAIIG
EXT GATE
STANO BY
INVEX CON
J
math not
stored
0
D
'
~
4 5
DO
D
6
D
_[ [8] \_ -(0)-
DC [8] AC -SV SV
m £f
GJ _}VL
oc rr;1 . Ac
ll:JJ
r-RF OPTION---,
3
D
KEYBOARD
G
SETA
D
ATT
x1 [l!Jjx10
SETS
D
,
D
2
D
J
ATT
X1 G X10
0 . +1- COM CHECK
D
D
'
D
1Mfl G 500
m GJ
1Mfl [l!J]son
0.1-1.5GHz
C~sor~
A ~ -oc~~::~Hz- ~ B
EE
D
ENTER
GJ
10mVrms .. MAX 12Vrms
TRIGGER LEVEL
The trigger level is set in one of three ways:
In AUTO mode the counter automatically cal-
culates the 50% level of the input signal, or
sets trigger levels at 10% and 90% of the
signal's amplitude. AUTO is automatically se-
lected immediately after power on unless a
program
dictates otherwise.
Via KEYBOARD the trigger levels may be set
either from a stored panel program or manual-
ly from the keybord.
Via the potentiometers (both AUTO and KEY-
BOARD are off). Potentiometer values cannot
be stored in a stored panel program.
Trigger LEOs
The trigger level is adjustable between +5V and
-5V, or between +50V and -50V (ATT x10). The
LEDs show the state of triggering:
- ON - the signal is above the trigger
level.
260Vrm•€1MQ J
12llrms<50n l
- OFF
- BLINKING
READ
~ 1
the signal is below the trigger
level.
the signal is crossing the hy-
steresis band.
Shows the current trigger levels. Channel A on
the left hand side and channel B on the right
hand side of the display.
COM'non
Connects channels A and B internally and disab-
les the channel B connector and impedance
(1 MOhm/50 Ohm) control. The coupling, attenua-
tion, slope and trigger level controls for chan-
nel B remain active.
CHECK
When active, the internal 10MHz reference signal
is connected to the logic circuits. CHECK allows
a self test of all functions except phase, duty
factor, Vmax, Vmin and Vpp.
