MEASURING FUNCTION
Frequency A
Frequency C
Period A
Ratio
A/B
Ratio C/B
Time interval A-B
Pulse width A
Phase A-B
Rise/Fall time A
Duty
factor A
Tot A
gated by B
Tot A start/stop by B
Tot A Manual start/stop
Vmax • Vmin A
vPP A
Vmax• Vmin B
vPP a
Vmax• Vmin• Vpp B
MEASURING/DISPLAY TIME
PROGRAMMING CODE
F1
F2
F3
F4
FS
F6
F7
F8
F9
FHl
F11
F12
F13
F14
F15
(on)
F14QB1
1 )
(on)
F1SQB1
1 )
(off)
QB0
PROGRAMMING CODE
Set measuring time (100 ~s ••• 99 s) SM ••• 2)
Single/min, meas.time (on, off) SS1, SS0
Read meas.time (on, off) RM1, RM0
Display-hold (triggered mode) TE1
Display-hold off ("free run") TE0
I "RESET" (start new measurement) X or RE
TRIGGER LEVELS PROGRAMMING CODE
Trigger level-auto
Trigger level-keyboard
Trigger level-potentiometer
Set trigger level (channel A, B)
Read A and B levels (on, off)
Tl2
TL1
TL0
AL ••• 2)
BL ... 2)
RL1, RL0
INPUT SETTING PROGRAMMING CODE
Positive slope
Negative slope
Attenuator: x1
Attenuator: x10
Coupling: DC
Coupling: AC
Termination 1M0hm
Termination 50 Ohm
Common via A
(A, B)
(A, B)
(A, B)
(A, B)
(A, B)
(A, B)
(A, B)
(A, B)
(on, off)
AS0,
AS1,
AA.0,
AA1,
AC0,
AC1,
AT0,
AT1,
CE1,
BS0
851
BA0
BA1
BC0
BC1
BT0
BT1
CE0
1) QB1 and HE2 can only be activated from the
bus.

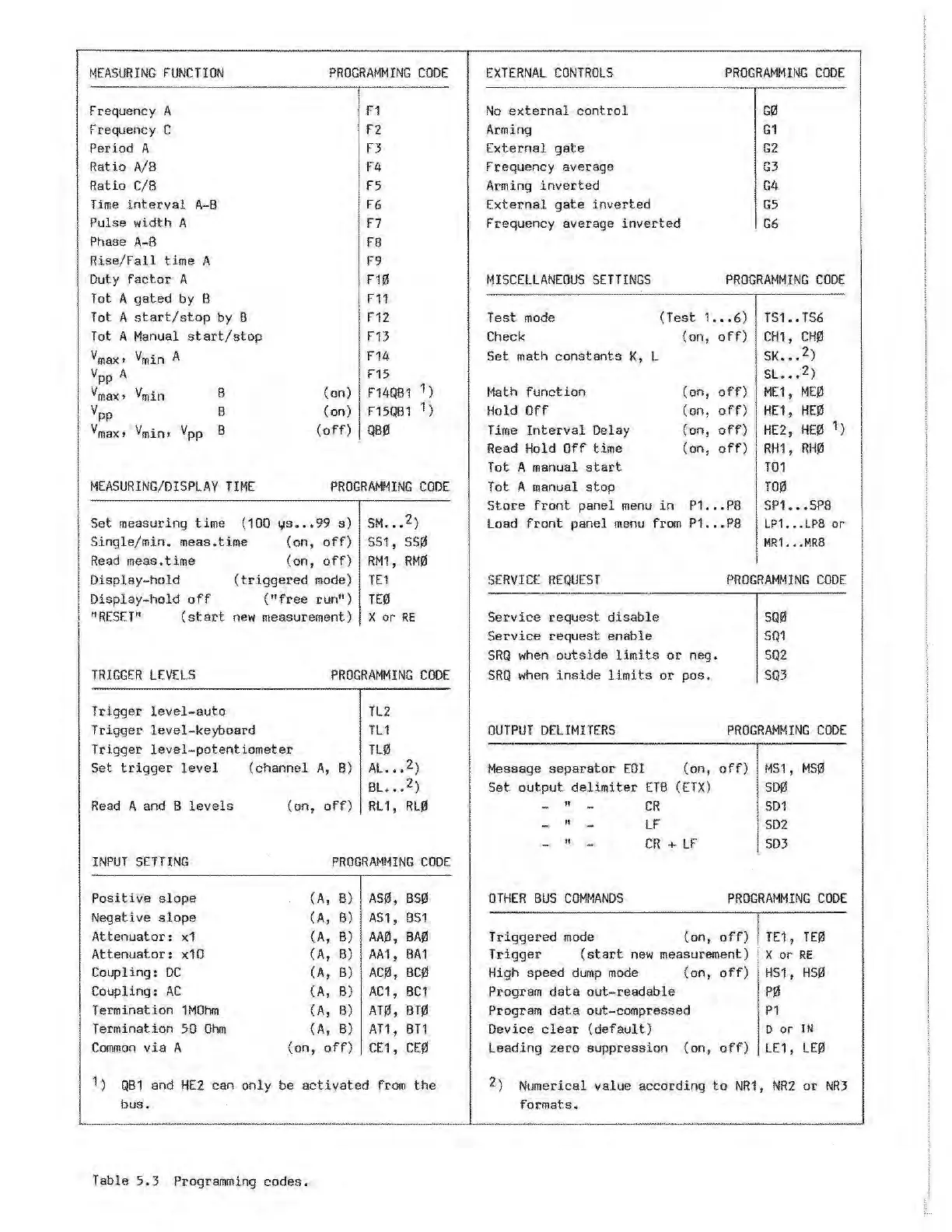

Table 5.3 Programming codes.
EXTERNAL CONTROLS PROGRAMMING CODE
No external control
G0
Arming
G1
External gate G2
Frequency average
G3
Arming inverted
G4
Ex t ernal gate inverted
GS
Frequency average inverted
G6
t-!ISCELLANEOUS SETTINGS PROGRAMMING CODE
Test mode
Check
(Test 1 ••• 6) TS1 •. TS6
(on, off) CH1, CH0
Set math constants K, L
Math function
Hold Off
Time Interval Delay
Read Hold Off time
Tot A manual
start
Tot A manual stop
SK ... 2)
SL .. ,2)
(on, off) ME1, ME0
(on, off) HE1, HE0
(on, off) HE2, HEfl 1)
(on, off) I RH1 , RHfl
T01
T00
Store front panel menu in P1 ••• P8 SP1 ••• SP8
Load front panel menu from P1 .•• P8 LP1 ••. LP8 or
MR1. •• MRS
SERVICE REQUEST PROGRAMMING CODE
Service request disable SQfl
Service request enable SQ1
SRQ when outside limits or neg. SQ2
SRQ when inside limits or pos. SQ3
OUTPUT DELIMITERS
Message separator
EOI
Set output delimiter
-
"
-
-
"
-
-
"
-
ETB
CR
LF
CR
PROGRAMMING CODE
(on, off)
(ETX)
+ LF
MS1, MS0
SD0
SD1
SDZ
SD3
OTHER BUS COMMANDS PROGRAMMING CODE
Triggered mode (on, off) ! TE1, TE0
Trigger (start new measurement) ! X or RE
High speed dump mode (on, off) HS1, HS0
Program data out-readable P0
P1 Program data out-compressed
Device
clear (default) 0 or IN
(on, off) I LE1, LE0
Leading zero suppression
2) Numerical value according to NR1, NRZ or NR3
formats.
I
