Byte 1 ,2
Byte 3
Byte 4
Byte 5 ••• 8
Byte.9
Byte 10
Function code VM or TL
Space character.
Sign + or - for channel A (TL) or
for Vmax (VM).
XXXX indicates the level for chan-
nel A (TL) or Vmax (VM) in Volts. 3
characters are digits and one is a
floating decimal point .
Separating comma(,).
Sign + or - for channel B ( TL) or
for Vmin (VM).
Byte 11 ... 14 XXXX indicates the level for chan-
nel B (TL) or Vmin (VM) in Volts.
3 characters are digits and one is
Byte 15
Byte 16
a
floating decimal point.
Delimiter CR, LF, ETX or ETB
Second delimiter LF (only if deli-
miter combination CR+lf has been
selected).
Function codes
Codes
Df
FA
FC
HT
MT
PA
PH
PW
RA
RC
RT
fG
TI
TL
TM
TS
VM
VP
Functions
Duty
Factor A
Frequency A
Frequency C
Hold-off Time
Measuring Time
Period A
Phase A-8
Pulse Width A
Ratio AlB
Ratio C/B
Rise/Fall Time A
Tot A gated by B
Time Interval A-B
Trigger levels A, B
Tot A, Manual
Tot A, Start/Stop by B
Vmax• Ymin A
Vpp A
Table

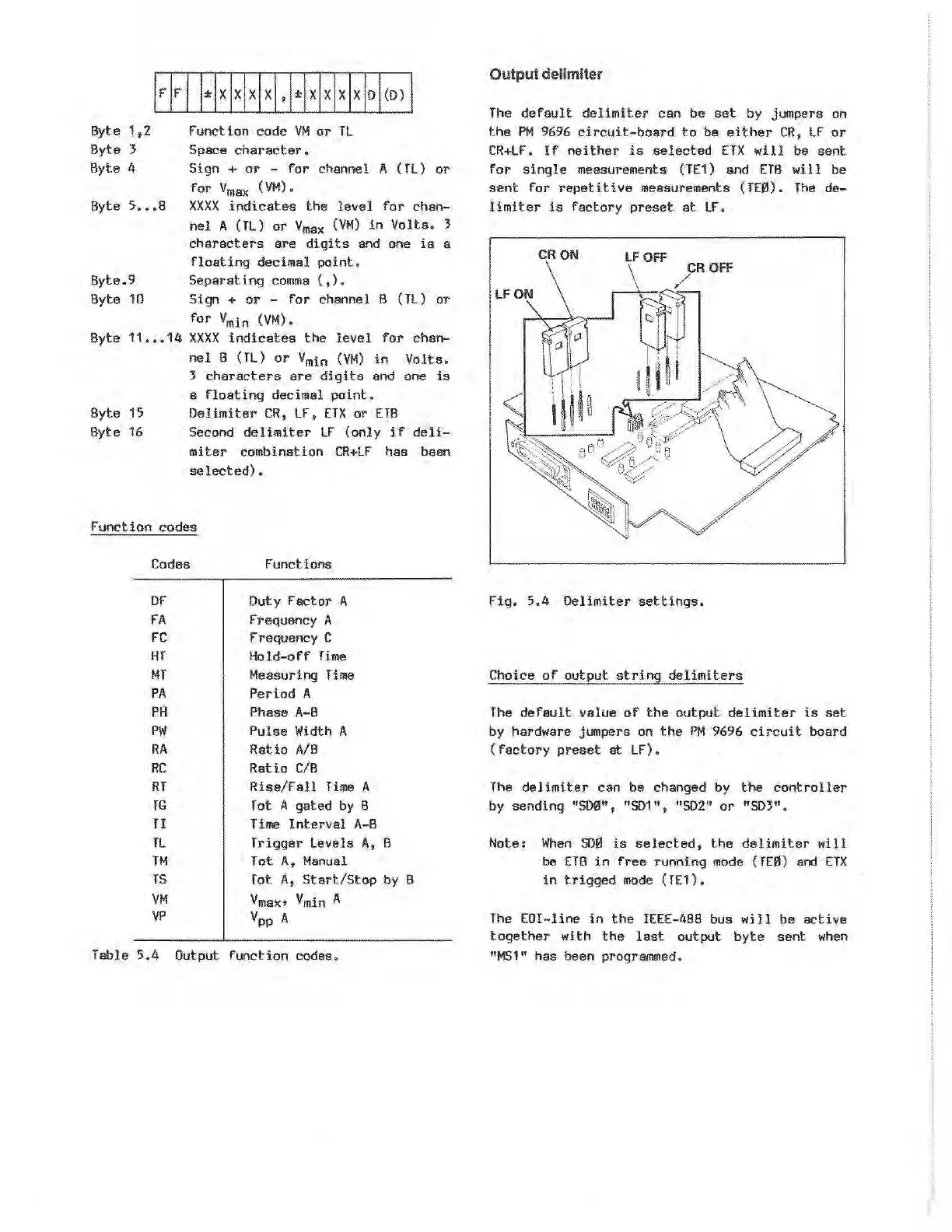

5.4 Output function codes.
Output delimiter
The default delimiter can be set by jumpers on
the PM 9696 circuit-board to be either CR, LF or
CR+LF. If neither is selected ETX will be sent
for single measurements (TE1) and ETB will be
sent for repetitive measurements (TE0). The de-
limiter is factory preset at LF.
Fig. 5.4 Delimiter settings.
Choice of output string delimiters
The default value of the output delimiter is set
by hardware jumpers on the PM 9696 circuit board
(factory preset at LF).
The delimiter can be changed by the controller
by sending "SD0"; "501"; "502" or "503".
Note: When 50!11 is selected, the delimiter will
be ETB in free running mode (TE0) and ETX
in trigged mode (TE1).
The EOI-line in the IEEE-488 bus will be active
together with the last output byte sent when
"M51" has been programmed.
