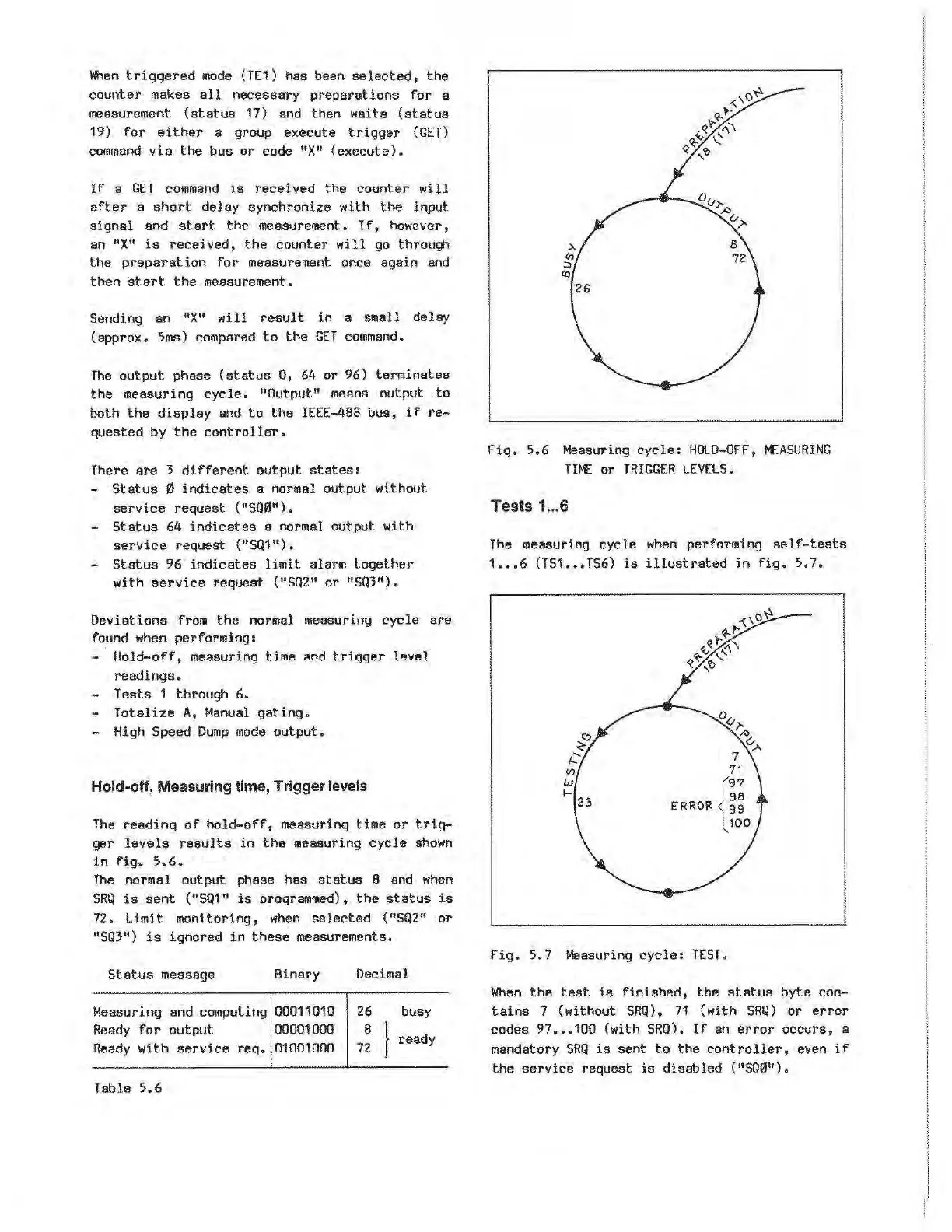

When
triggered
mode
(TE1)
has been
selected,
the
counter
makes
all
necessary
preparations
for
a
measurement
(status
17)
and
then
waits
(status
19)
for
either
a group
execute
trigger
(GET)
command
via
the
bus
or
code
"X"
(execute).
If
a
GET
command
is
received
the
counter
will
after
a
shor
t
delay
synchronize
with
the
input
signal
and
start
the
measurement.
If,
however ,
an
"X"
is
received,
the
counter
will
go
through
the
preparation
for
measurement once
again
and
then
start
the
measurement.
Sending an
"X"
will
result
in
a
small
delay
(approx.
5ms) compared
to
the
GET
command.
The
output
phase
(status
0,
64
or
96)
terminates
the
measuring
cycle.
"Output"
means
output
to
both
the
display
and
to
the
IEEE-488
bus,
if
re-
quested
by
the
controller
.
There
are
3
different
output
states
:
-
Status
0
indicates
a normal
output
without
service
request
(
"SQ~")
-
Status
64
indicates
a normal
output
with
service
request
(ttSQ1").
-
Status
96
indicates
limit
alarm
together
with
service
request
("SQ2"
or
"SQJI•).
Deviations
from
the
normal measuring
cycle
are
found when
performing:
-
Hold-off,
measuring
time
and
trigger
level
readings.
-
Tests
1
through
6.
Totalize
A,
Manual
gating.
- High Speed
Dump
mode
output.
Hold~off
,
Measuring time, Trigger levels
The
reading
of
hold-off,
measuring time
or
trig-
ger
levels
results
in
the
measuring
cycle
shown
in
fig.
5.6.
The
normal
output
phase
has
status
8 and
when
SRQ
is
sent
(nSQ1
••
is
programmed),
the
status
is
72.
Limit
monitoring,
when
selected
(nSQ2"
or
"SQ3
11
)
is
ignored
in
these
measurements.
Status
message
Binary
Measuring
and
computing 00011010
Ready
for
output
00001000
Ready
with
service
req.
01001000
Table 5. 6
Decimal
26 busy
8 }
72
ready
Fig
.
5,6
Measuring
cycle:
HOLD-OFF,
MEASURING
TIME
or
TRIGGER
LEVELS.
Tests 1
...
6
The
measuring
cycle
when
performing
self-tests
1
•••
6
(TS1
•••
TS6)
is
illustrated
in
fig.
5.7.
Fig.
5. 7 Measuring
cycle:
TEST.
When
the
test
is
finished,
the
status
byte
con-
tains
7
(without
SRQ),
71
(with
SRQ)
or
error
codes
97
•••
100
(with
SRQ).
If
an
error
occurs,
a
mandatory
SRQ
is
sent
to
the
controller,
even
if
the
service
request
is
disabled
("SQ!Il").
