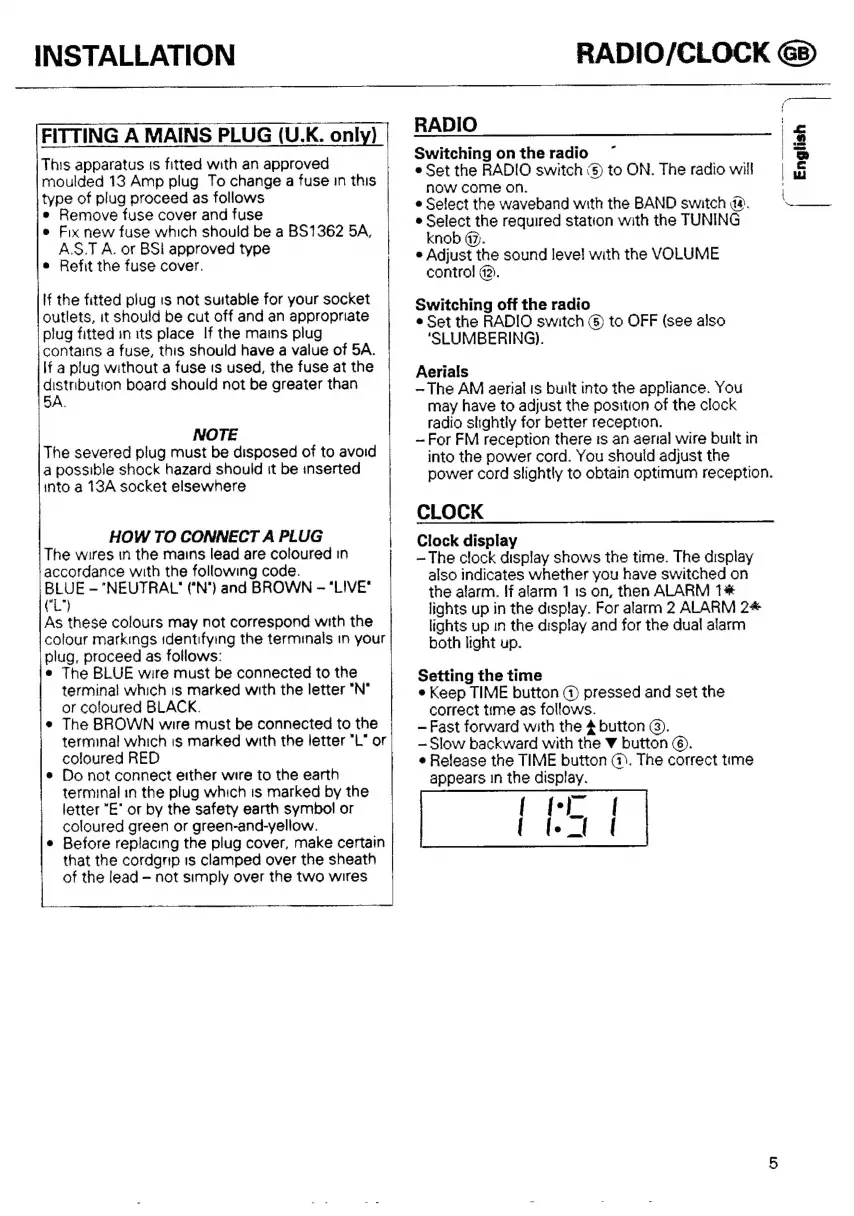

INSTALLATION
FITTING A MAINS PLUG (U.K. only)
This apparatus is fitted with an approved
moulded 13 Amp plug To change a fuse in this
type of plug proceed as follows
e Remove fuse cover and fuse
e Fix new fuse which should be a BS1362 5A,
A.S.T A. or BSI approved type
e Refit the fuse cover.
if the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place If the mains plug
contains a fuse, this should have a value of 5A.
If a plug without a fuse is used, the fuse at the
ee board should not be greater than
SA.
NOTE
The severed plug must be disposed of to avoid
a possible shock hazard should it be inserted
into a 13A socket elsewhere
HOW TO CONNECT A PLUG
The wires in the mains lead are coloured in
accordance with the following code.
BLUE ~ “NEUTRAL CN") and BROWN - "LIVE"
CL)
As these colours may not correspond with the
colour markings identifying the terminals in your
plug. proceed as follows:
e The BLUE wire must be connected to the
terminal which is marked with the letter "N"
or coloured BLACK.
e The BROWN wire must be connected to the
terminal which is marked with the letter "L" or
coloured RED
e Do not connect either wire to the earth
terminal in the plug which ts marked by the
letter "E` or by the safety earth symbol or
coloured green or green-and-yellow.
e° Before replacing the plug cover, make certain
that the cordgrip is clamped over the sheath
of the lead — not simply over the two wires
RADIO/CLOCK
RADIO
Switching on the radio ~
e Set the RADIO switch © to ON. The radio will
now come on.
e Select the waveband with the BAND switch de.
e Select the required station with the TUNING
knob 07.
e Adjust the sound level with the VOLUME
control 42.
Switching off the radio
e Set the RADIO switch © to OFF (see also
‘SLUMBERING).
Aerials
-The AM aerial is built into the appliance. You
may have to adjust the position of the clock
radio slightly for better reception.
— For FM reception there ts an aerial wire built in
into the power cord. You should adjust the
power cord slightly to obtain optimum reception.
CLOCK
Clock display
—The clock display shows the time. The display
also indicates whether you have switched on
the alarm. If alarm 1 1s on, then ALARM 1%
lights up in the display. For alarm 2 ALARM 2%
lights up in the display and for the dual alarm
both light up.
Setting the time
e Keep TIME button 7 pressed and set the
correct time as follows.
— Fast forward with the 4 button ©).
— Slow backward with the Y button ©.
e Release the TIME button (4). The correct time
appears in the display.
H
t
|
|
|
|
l
—
English
A B —F—
