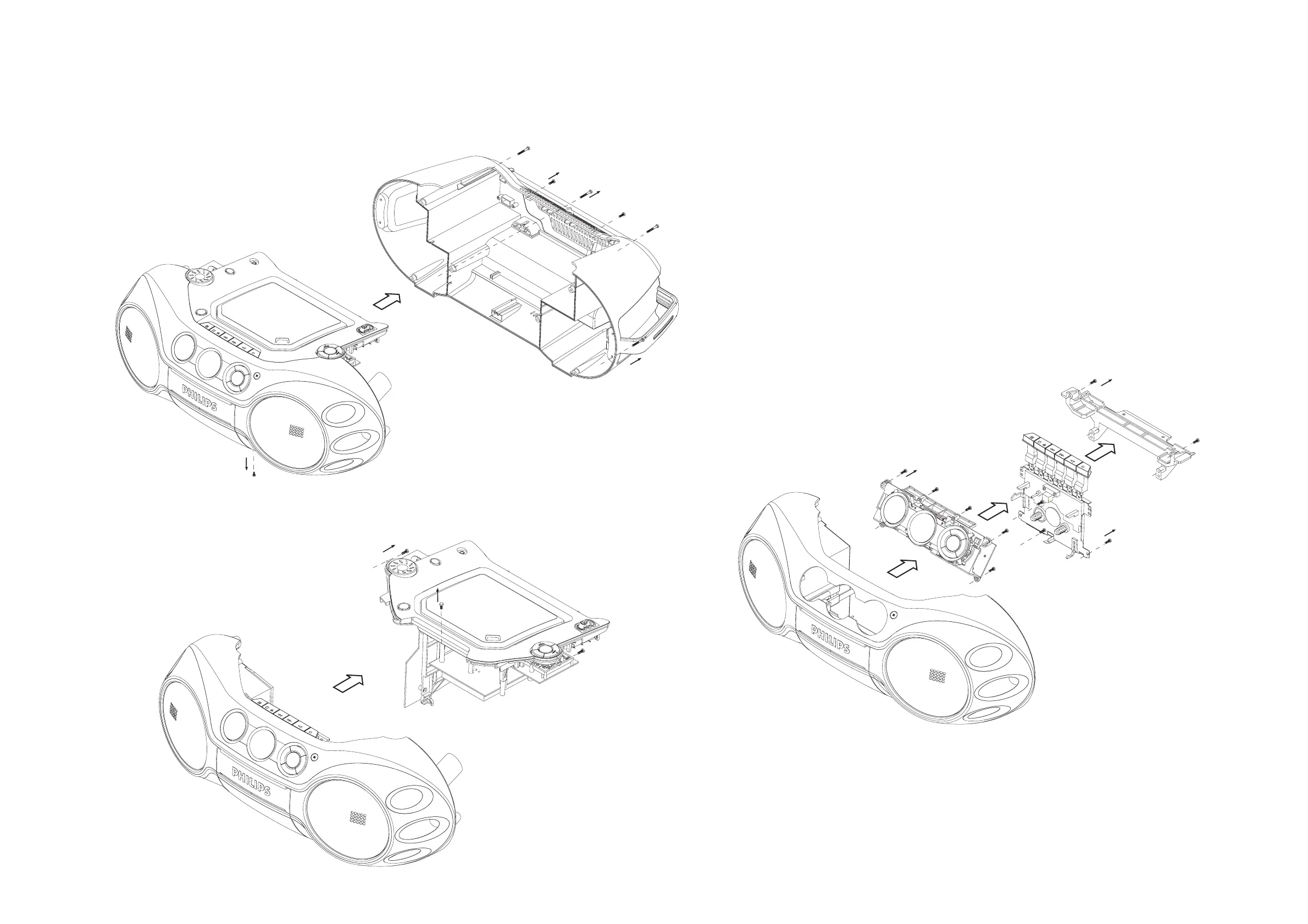

Philips AZ 2536 - Disassembly Diagram

A1 (x10)
A2 (x2)
A3 (x1)
C6 (x4)
C7 (x2)
C8 (x6)
B5 (x2)
B4 (x2)
A. REMOVE REAR CABINET ASSEMBLY
- REMOVE SCREWS A1 (3X20) 10 PCS
- REMOVE SCREWS A2 (3X12) 2PCS
- REMOVE SCREW A3 (3X5) 1PS
(UNDER FRONT CABINET ASSY)
C. REMOVE LCD BOARD
- REMOVE SCREWS C6 (3X10) 4 PCS
- REMOVE CASSETTE BRACKET
- REMOVE SCREWS C7 (3X10) 2 PCS
- REMOVE CASSETTE SET
- REMOVE SCREWS C8 (3X10) 6 PCS
- REMOVE LCD BOARD
B. REMOVE CD TRAY ASSEMBLY
- REMOVE SCREWS B4 (3X10) 2 PCS
- REMOVE SCREWS B5 (3X8) 2PCS
(IN CD DOOR)
4 - 14 - 1
DISASSEMBLY DIAGRAM
