Philips AZ2030 - Disassembly Diagram; Top Cabinet and Front Panel Removal; Tape Deck and Front Board Removal

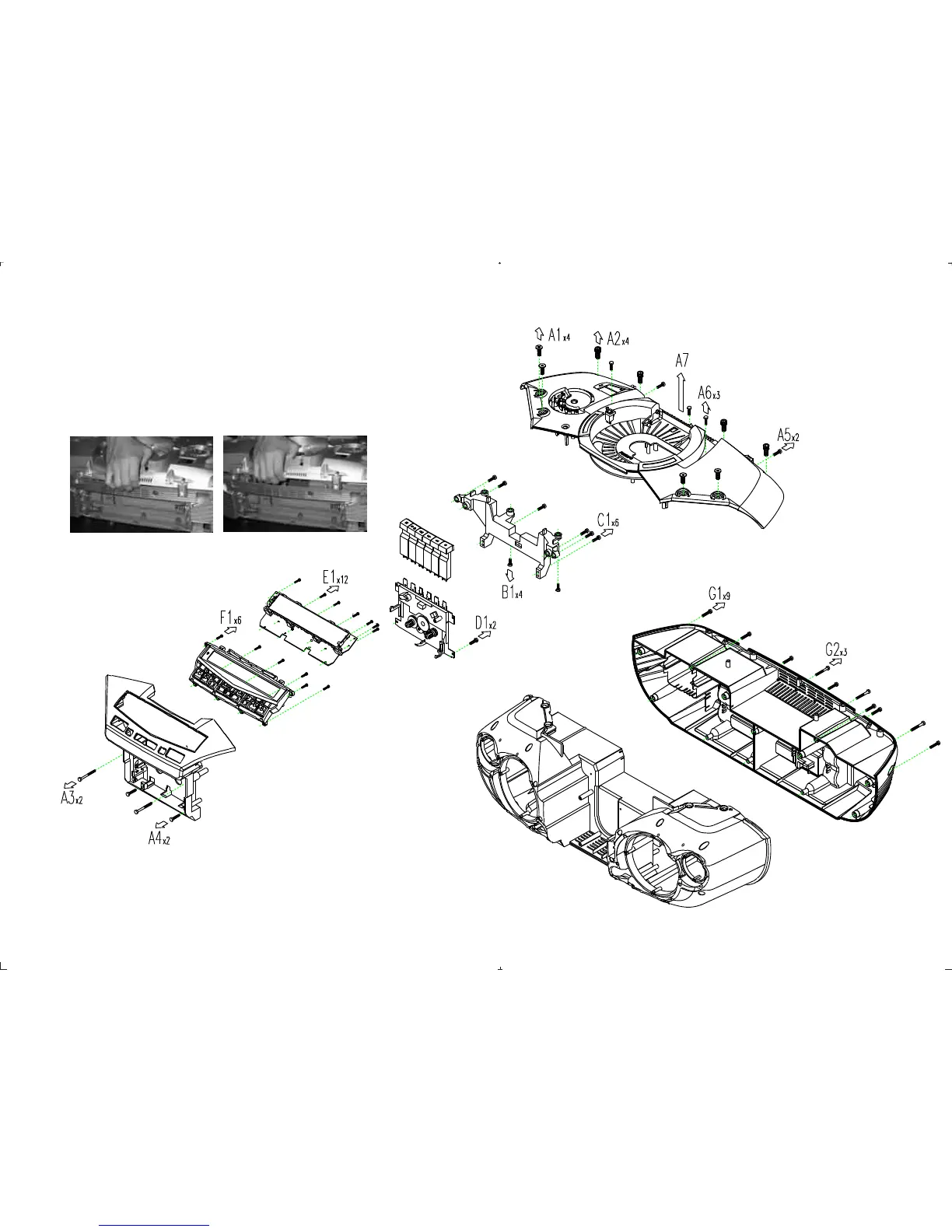

DISASSEMBLY DIAGRAM
4-1 4-1
PCS 107 279
A. To remove the Top Cabinet and Front Panel Assy
A7. Lift from the centre back (ventilation slot) to remove Top Cabinet (see fig. 1 & 2)
B. To separate Top Cabinet and Top Cabinet Bracket
C. To separate Front Panel Assy and Top Cabinet Bracket
D. To reomve Tape Deck
E. To remove Front Board
F. To remove Panel LCD Assy
G. To separate Front Cabinet and Rear Cabinet
fig.1
fig.2
·
