Philips AZ2030 - Exploded View Diagram - Tape Deck; Tape Deck Mechanical Parts List; Tape Deck Assembly Diagram

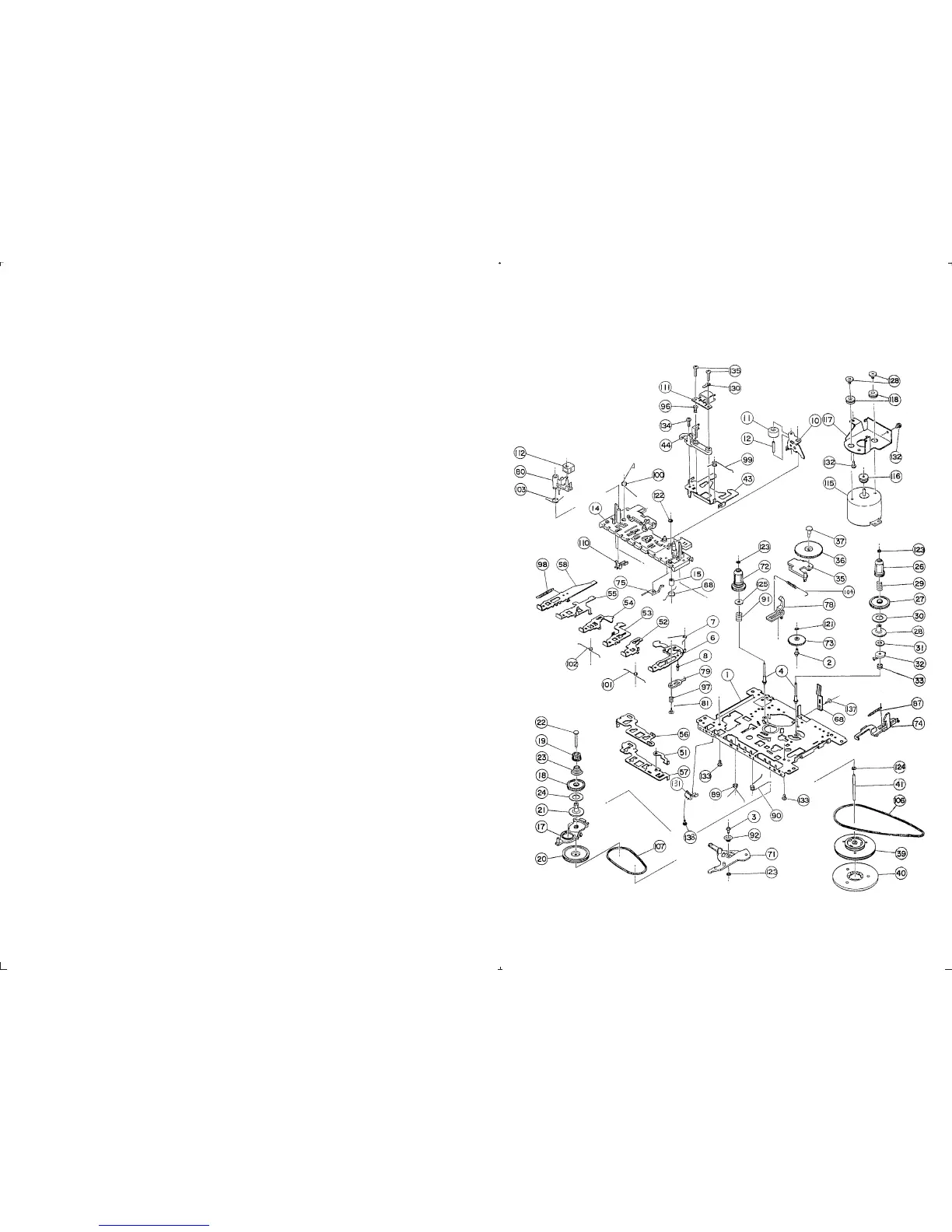

EXPLODED VIEW DIAGRAM - TAPE DECk
12-2 12-2
PCS 107 290
MECHANICAL PARTSLIST - TAPE DECK
10 4822 528 70849 Pinch Roller Arm (B) 110 4822 278 90721 Leaf Switch
11 4822 528 70695 Pinch Roller Assy 111 4822 249 30218 MS18R-AKONI
74 4822 403 70968 Eject Hook (A) 112 4822 249 40306 E. Head
106 4822 358 31325 Main Belt 45.2 x 1.2 115 4822 361 21565 Motor EG-530AD-9B
107 4822 358 31124 Sub Belt 44.7 x 1.2 116 4822 528 81497 Motor Pulley
Note: Only these parts mentioned in the list are normal
service parts.
MECHANICAL PARTSLIST - CABINET
401 9965 000 08536 CASS DOOR COVER 442 9965 000 08527 BUTTON IS
402 3140 114 28570 DOOR-TECHNICAL 443 9965 000 08526 BUTTON DBB
403 9965 000 08508 CASS DOOR SPRING 444 9965 000 08528 BUTTON UHC
404 4822 529 10322 DAMPER ASSY 446 3140 114 31840 LENS-IS
406 9965 000 08478 CONTROL KNOB (PLAY) 447 9965 000 08516 ANTENNA
407 9965 000 08480 CONTROL KNOB (STOP) 448 9965 000 08507 CD SPRING
408 9965 000 08486 CONTROL KNOB (CD MODE) 449 4822 466 12255 CHUCKING PLATE
409 9965 000 08487 CONTROL KNOB (PREV) 451 9965 000 08479 CHUCKING RING
411 9965 000 08488 CONTROL KNOB (PROG) 452 4822 256 10586 CHUCKING PLATE HOLDER
412 9965 000 08489 CONTROL KNOB (NEXT) 453 9965 000 08515 MAGNET-ID
413 9965 000 08490 CONTROL KNOB (BAND) 454 9965 000 08501 VOL KNOB (FOR -/00/10/11/14/16/17)
414 9965 000 08484 CONTROL KNOB (PRESET) 454 9965 000 08586 VOL KNOB (FOR -/05)
416 9965 000 08485 CONTROL KNOB (RESET) 456 9965 000 08540 CD DOOR COVER
417 9965 000 08539 DISPLAY LENS 457 9965 000 08532 HANDLE BRACKET
418 9965 000 08492 BRACKET (BACKLIGHT) 458 9965 000 08537 HANDLE TOP
419 9965 000 08491 LENS (BACKLIGHT) 459 9965 000 08538 HANDLE BOTTOM
421 4822 691 10612 TAPE DECK MECHANISM 461 9965 000 08534 SPK CLOTH FRAME (L)
422 9965 000 08506 REC SPRING 462 9965 000 08535 SPK CLOTH FRAME (R) (FOR AZ2030)
423 9965 000 08494 CASS KNOB (PAUSE) 462 9965 000 08587 SPK CLOTH FRAME (R) (FOR AZ2035)
424 9965 000 08495 CASS KNOB (STOP) 463 9965 000 08509 COMP.SPRING (+,-)
426 9965 000 08496 CASS KNOB (F.F.) 464 9965 000 08514 CONTACT PLATE
427 9965 000 08497 CASS KNOB (REW) 466 9965 000 08510 COMP.SPRING (-)
428 9965 000 08498 CASS KNOB (PLAY) 467 9965 000 08533 DOOR BATTERY
429 9965 000 08493 CASS DOOR MTG.BKT 468 9965 000 04959 REMOTE RC331401/01 (FOR AZ2035)
429 9965 000 08499 CASS KNOB (REC.) 469 4822 321 10249 MAINS CORD (FOR -/00/11/14/16)
429 3140 114 20430 BRACKET ECO-MTF-SD 469 4822 321 10886 MAINS CORD (FOR -/05)
431 3140 114 33810 BRACKET ISOLATION 469 4822 321 10954 MAINS CORD (FOR -/10)
432 4822 529 10387 DAMPER RUBBER (40 DEG) 469 4822 321 11466 MAINS CORD (FOR -/17)
433 4822 529 10386 DAMPER RUBBER (30 DEG) 9965 000 08505 LED BRACKET
434 3103 309 05290 CD DA11N DRIVE ASSY 9965 000 08581 SENSOR BRACKET (FOR AZ2035)
436 4822 442 01905 LENS COVER 9965 000 08541 INSTR MANUAL (FOR -/00/05)
437 4822 529 10322 DAMPER ASSY 9965 000 08588 INSTR MANUAL (FOR -/10/11/16)
438 9965 000 08500 FUNCTION SWITCH 9965 000 08684 INSTR MANUAL (FOR -/14)
439 3140 114 31830 LENS-UHC 9965 000 08582 INSTR MANUAL (FOR -/17)
441 3140 114 31820 LENS-DBB
Note:Only these parts mentioned in the list are normal
service parts.
