3-1

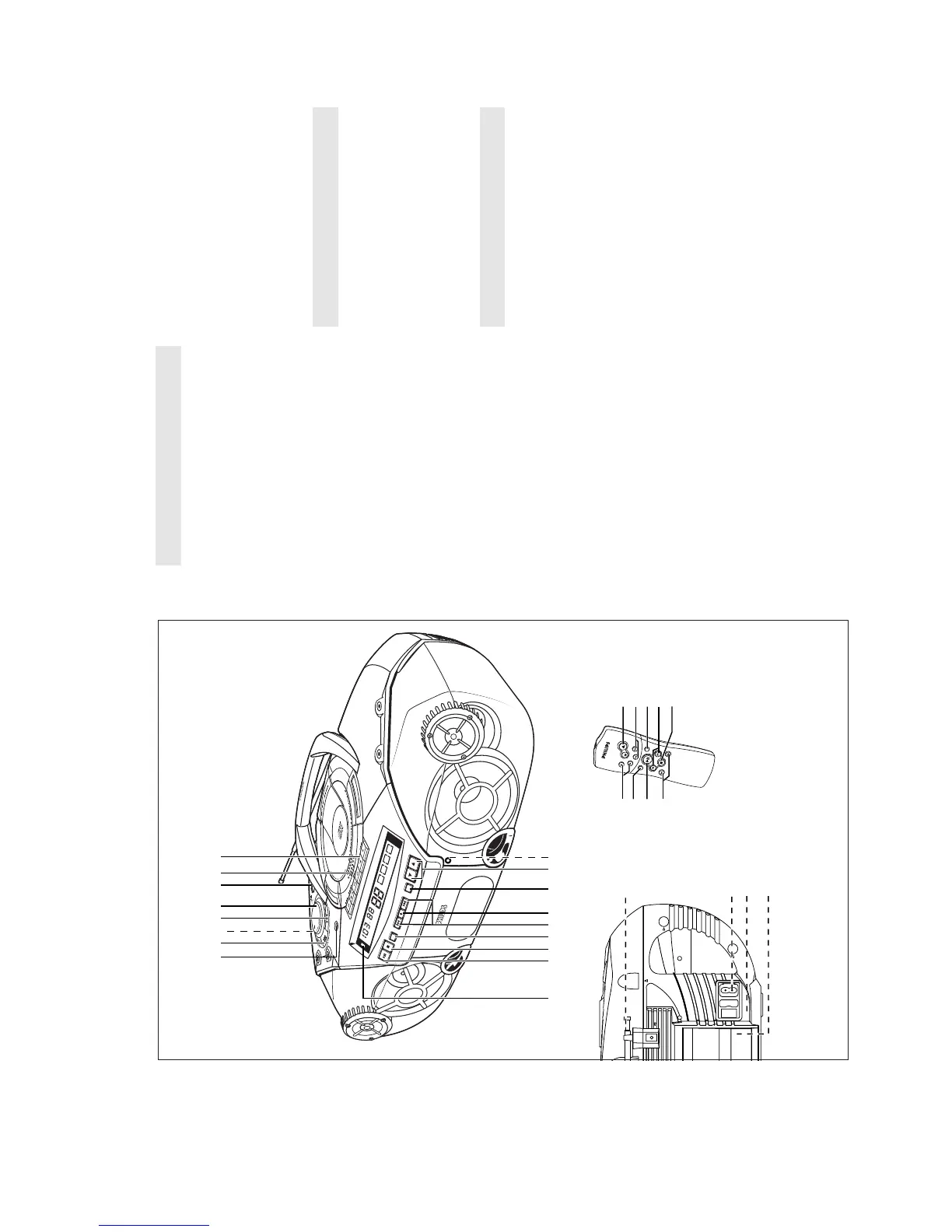

CONNECTIONS AND CONTROLS
TOP AND FRONT PANELS
1 p - 3.5 mm stereo headphone socket
Note: Connecting headphones will switch off
the loudspeakers.
2 ULTRABASS-
selects a more vivid bass response
3 ULTRA HIGH CLARITY -
adjusts the treble tones
4 INCREDIBLE SURROUND -
creates a super-enhanced stereo effect
5 VOLUME - to adjust volume level
6 POWER slider - selects the sound source for
CD/ TUNER / TAPE and also
the POWER OFF switch
7 OPEN•CLOSE - opens/ closes the CD door
8 CASSETTE RECORDER keys
RECORD 0 - starts recording
PLAY 1 - starts playback
SEARCH 5
/ 6
- fast winds/rewinds the
tape
STOP•OPEN 9/ - stops the tape;
- opens the cassette door
PAUSE ; - pauses recording or playback
9 BATT LOW - indicates when battery power
is running low
0 PLAY 2; - starts or pauses
CD playback
! STOP 9 - stops CD playback;
erases a CD programme
@ CD MODE - selects different play modes:
REPEAT or SHUFFLE (random) order
# SEARCH ∞
/ §
Tuner: - (down, up) tunes to radio stations;
CD: - searches back and forward within a
track;
- skips to the beginning of a current
track/ previous/ later track
$ PROG -
CD: programmes tracks and reviews the
programme;
Tuner: programmes preset radio stations
% BAND - selects waveband
^ PRESET 4, 3 - selects a preset tuner
station (down, up)
& REMOTE SENSOR -
for AZ2035 model only:
infrared sensor for
remote control
BACK PANEL
* Telescopic aerial - improves
FM reception
( AC MAINS - inlet for mains lead
) Voltage selector - (on the back of the set,
some versions only) before plugging in the
set, adjust selector to match the local
voltage
¡ Battery compartment - for eight batteries,
type R-20, UM-1 or D-cells
REMOTE CONTROL
(for AZ2035 only)
1
VOLUME
+
,
-
– adjusts volume level
2
PRESET 3,4 (up, down) – selects a preset
radio station
3
TUNING ∞, § (down, up) – tunes to radio
stations
4
SHUFFLE – to play CD tracks in random order
5
REPEAT – repeats a track/ CD programme/
entire CD
6
2; – starts and pauses CD playback/
interrupts CD playback
7
¡, ™ – skips to the beginning of a current
track/ previous/ later track
8
STOP 9 – stops CD playback or erases a
CD programme
9
SEARCH 5, 6 – searches backwards or
forwards within a track/CD
CAUTION
Use of controls or adjustments or performance of procedures other than herein
may result in hazardous radiation exposure.
PLA
Y
STOP
CD MODE
• • • SEARCH
SEARCH • • •
PROG
BAND
PRESET
FM
STEREO
BATT
LOW
D
I
G
IT
A
L
T
U
N
E
R
B
A
S
S
R
E
F
LE
X
S
P
E
A
K
E
R
S
Y
S
T
E
M
23 54 61 7 8
^#!0 @9 %$
&
*
(
¡
)
SHUFFL
E
RE
PE
A
T
TUNING
PR
ES
ET
SEA
RCH
SE
AR
CH
STOP
VOL
UME
D
igital
R
emote
C
ontrol
6
9
4
2
1
8
5
7
3
For AZ2035 model only
