5 Infra-Red Receiver
5.1 ReceiverRequirements
Parameters Requirement
Receiver Sensitivity
Receiver sensitivity
• E(0°) = 0.70 mW/m
2
on axis
• E(30°,h) = 1.12 mW/m
2
at= ± 30° off
horizontal axis
• E(45°,h) = 2.19 mW/m
2
at= ± 45° off
horizontal axis
• E(30°,v) = 1.12 mW/m
2
at = ± 30° off
vertical axis
Max Distance
10m
7.92m
5.65m
7.92m
Short Operating Distance  0.1 m

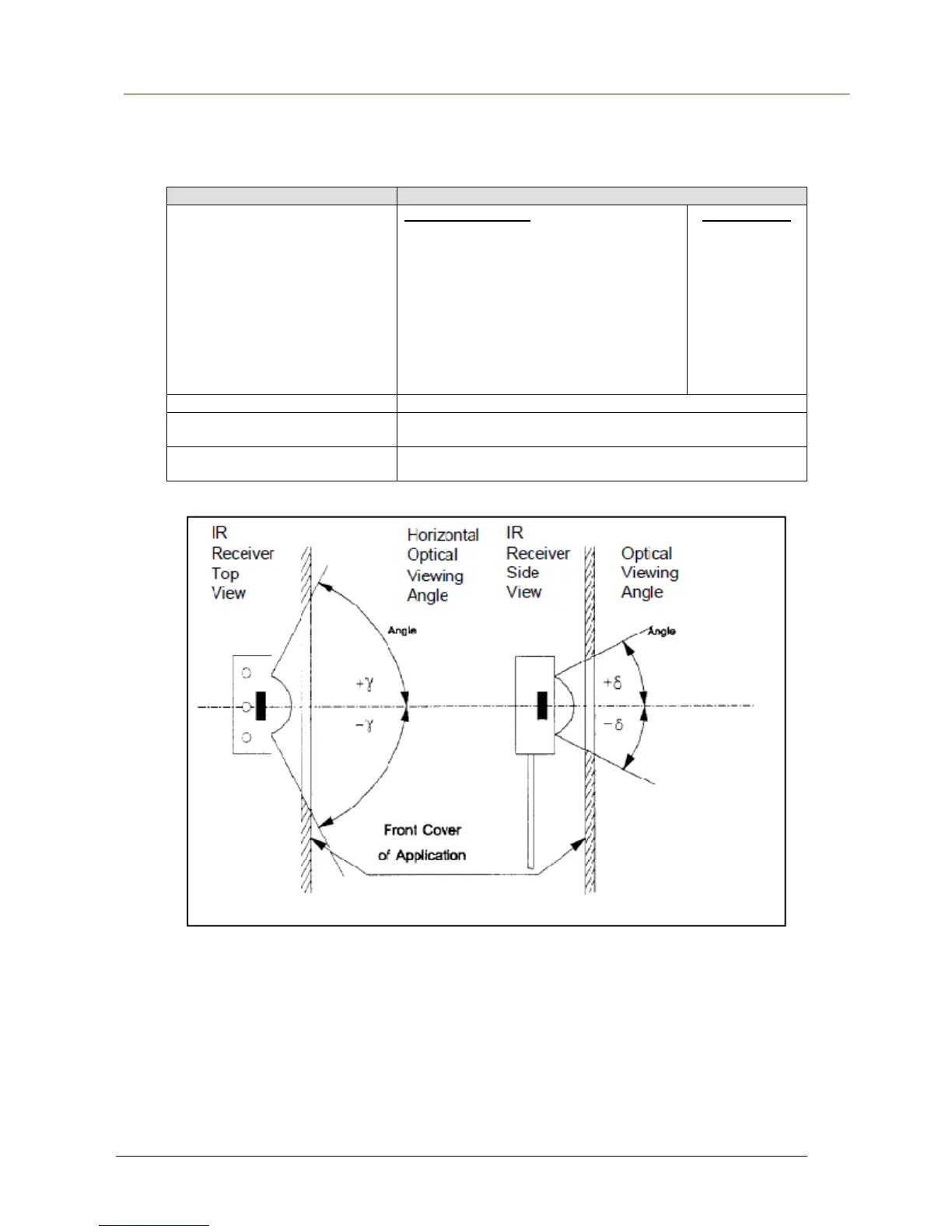

Minimum Optical Viewing Angle
Horizontal (  )  ± 60°
Vertical (  )  ± 30°
Electromagnetic Interference
Field-strength: E
q
 100 V/m at nominal36kHz carrier
frequency.
