Philips BVP528 - DMX and Electrical Connections; DMX Wiring and Pinout; Mains and Connection Box Specs

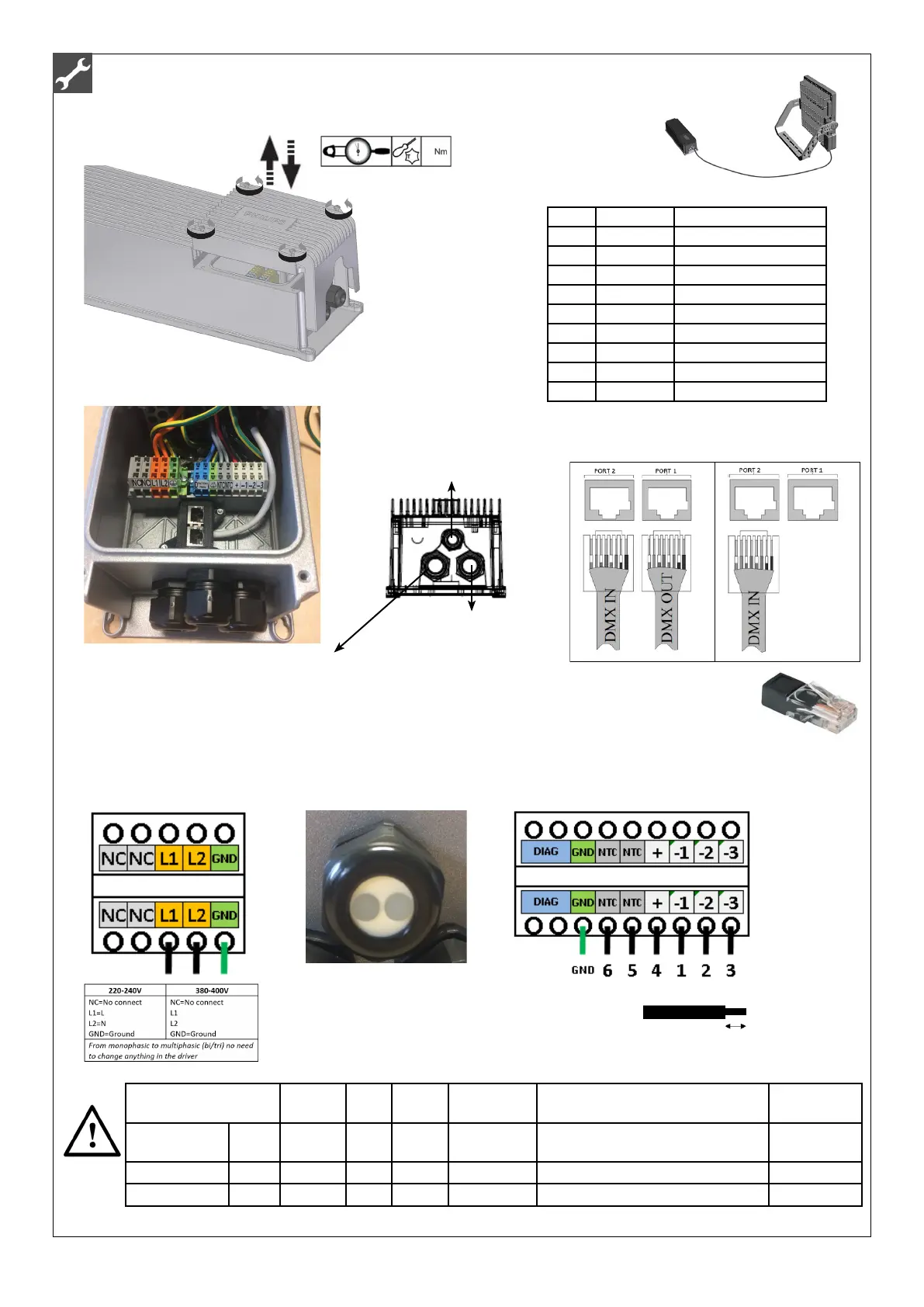

ELECTRICAL CONNECTION L< 50m (only on special requests)
MAINS
Cable from Driver box
to Connection Box
DMX (2 entries)
Ø min
(mm)
Ø max
(mm)
TORQUE MAX VOLTAGE
SUPPORTED
RECOMMENDED CABLE TYPE CONNECTOR
SECTION MAX
DMX Cable M20
2 x Ø6mm
+/-1mm
NA 4.5 Nm
1000 V 2x ETHERNET shielded cable CAT5
MAINS Cable M25
Ø13 Ø18
5 Nm
1000 V H07RN-F 450V/750V
4 mm2
Connection Box M25
Ø13 Ø18
4.5 Nm 1000 V
H07RN-F 450V/750 or A11VV U-600/1000V
2.5 mm2
TERMINATOR RJ45 (not supplied by Philips)
For safety reasons the terminator must have
isolated housing
CONNECTION BOX
DMX
1) Remove plugs only when needed
2) Slip the DMX cable without RJ45
plug through the cable gland
3) Crimp the RJ45 modular plug on
the DMX cable inside the driver
MAINS
Ø13-18mm
Pin numbering and color in accordance with ANSI/TIA/EIA-568
scheme T568B
PIN # COLOR FUNCTION
1 WHITE/ORANGE DATA 1+
2 ORANGE DATA 1-
3 WHITE/GREEN DATA 2+ (Optional)
6 GREEN DATA 2- (Optional)
4 BLUE Not assigned
5 WHITE/BLUE Not assigned
7 WHITE/BROWN Signal Common for data 1 (0 V)
8 BROWN Signal Common for Data 2 (0 V)
9 DRAIN
20
1.6
L
10/24
STRIPPING LENGTH:
8-9 mm
8-9 mm
