Philips BVP528 - Electrical Connections; DALI Connection (L < 50 m); Mains and Cable Specifications

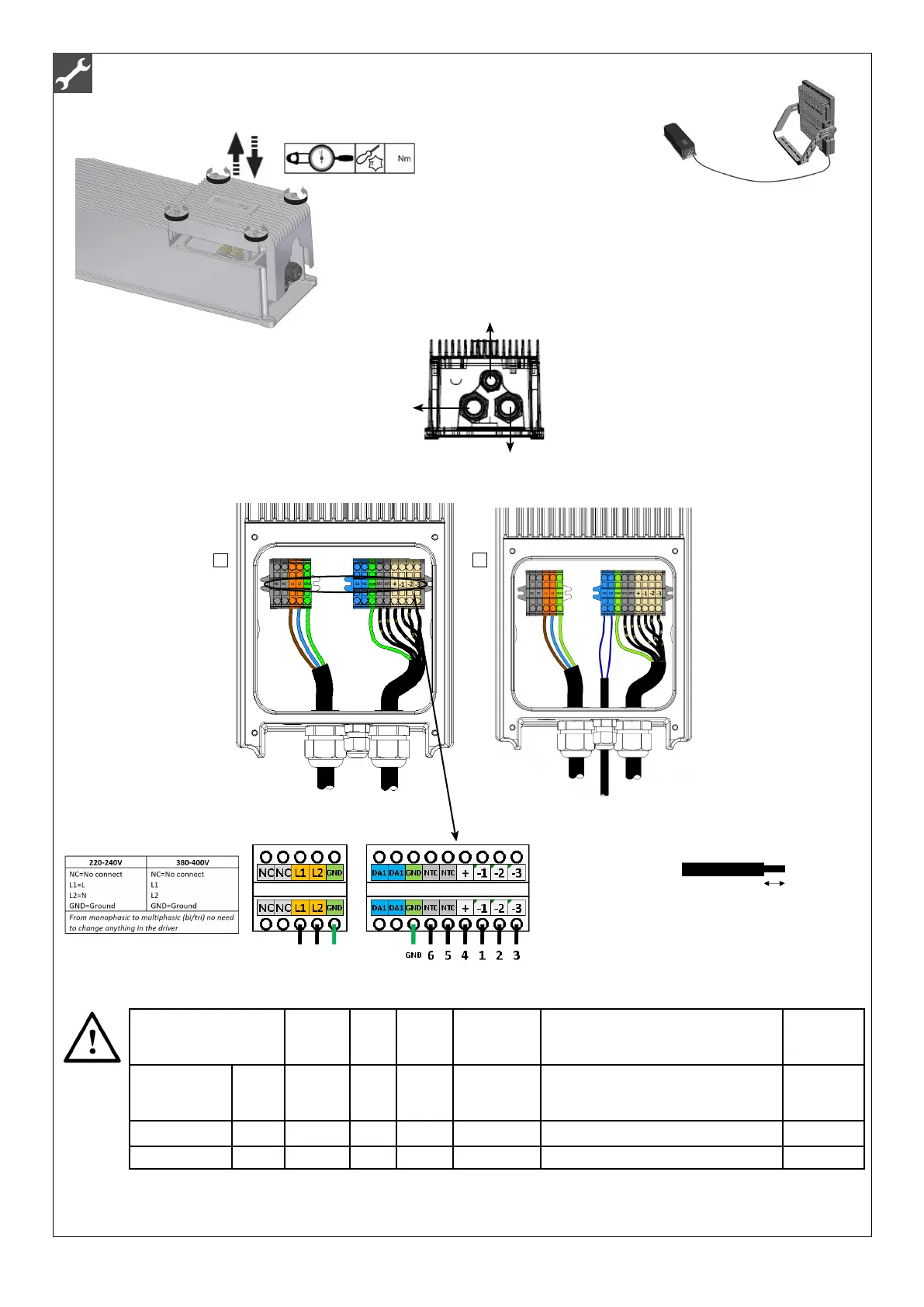

ELECTRICAL CONNECTION FOR EVP500 DALI L< 50m
a
CONNECTION
BOX
DALI
MAINS
MAINS
CONNECTION
BOX
Cable from Driver box
to Connection Box
MAINS
DALI
b
Ø min
(mm)
Ø max
(mm)
TORQUE MAX VOLTAGE
SUPPORTED
RECOMMENDED CABLE TYPE CONNECTOR
SECTION
MAX
DALI Cable M20
Ø6 Ø12
3 Nm
1000 V
H05VV-F (3182-Y) 2
core x 1.5mm or H05VV-F (3182-Y) 2
core x 2.5mm
2.5 mm2
MAINS Cable M25
Ø13 Ø18
5 Nm
1000 V H07RN-F 450V/750V
4 mm2
Connection Box M25
Ø13 Ø18
4.5 Nm 1000 V
H07RN-F 450V/750 or A11VV U-600/1000V
2.5 mm2
20
1.6
L
9/24
STRIPPING LENGTH:
8-9 mm
8-9 mm
