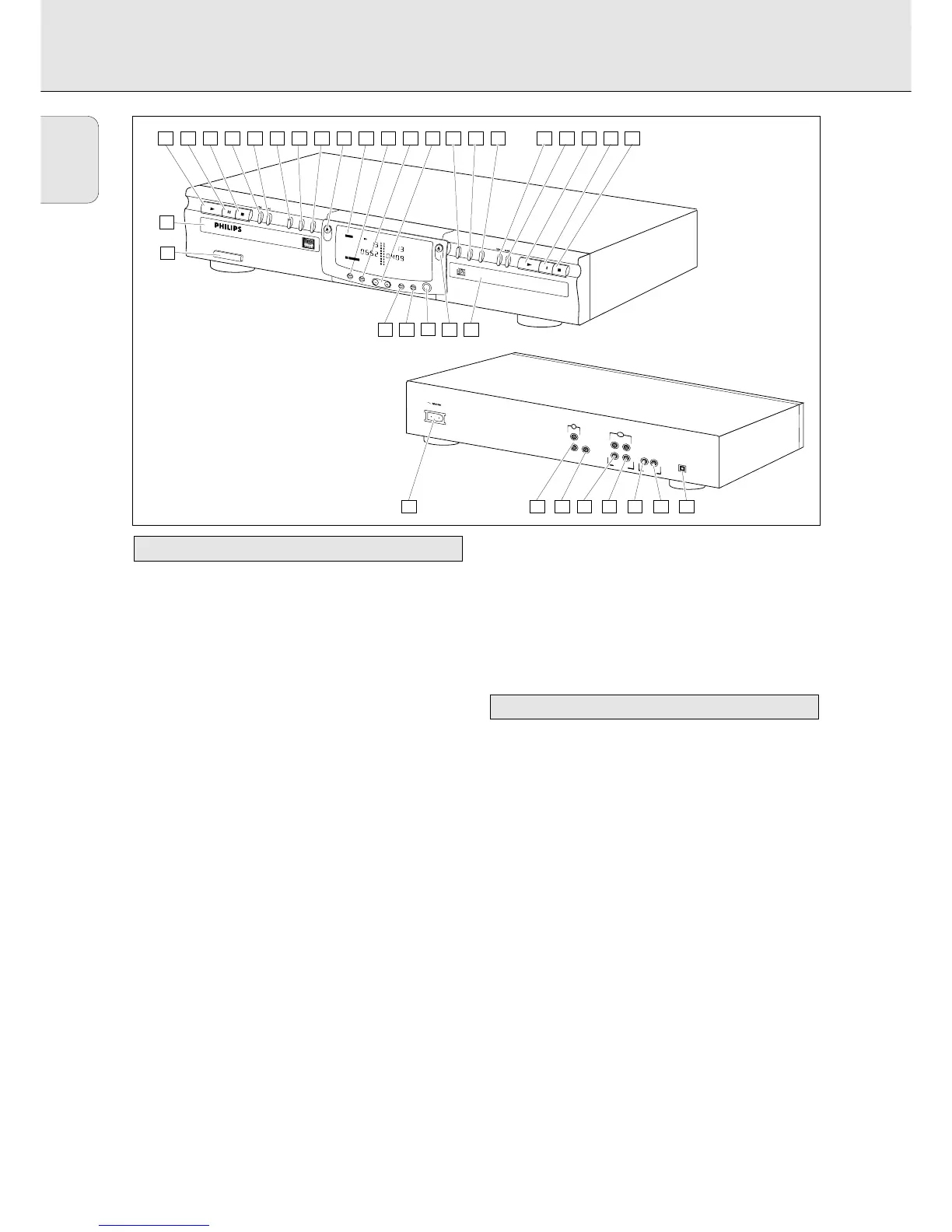

Philips CDR 765 - Operating Buttons and Connections; Operating Buttons on the Front; Connections on the Back

CD recorder
1 ON/OFF . . . . . . . . . . . turn the CD recorder/player ON and OFF
2 Disc tray
3 PLAY 2. . . . . . . . . start play or record
4 PAUSE ; . . . . . . . . interrupt play
5 STOP 9 . . . . . . . . . stops
6 ∞ . . . . . . . . . . . . . previous track/search back
7 § . . . . . . . . . . . . . next track/search forward/new track
8 RECORD. . . . . . . . . record
9 FINALIZE . . . . . . . . finalize recording
0 ERASE . . . . . . . . . . erase recording
! OPEN/CLOSE . . . . .open/close disc tray
@ DISPLAY (information screen)
# DISPLAY . . . . . . . . select display information
$ SOURCE. . . . . . . . . select digital or analogue input
%
RREECC LLEEVVEELL
. . . . . .adjusts the recording level (analogue)
^ CD-SYNC. . . . . . . . synchronized recording; recording
starts automatically
&
DDUUBBBB
. . . . . . . . . . . digital dubbing (normal or high
speed) from CD Player to CD
Recorder
* AUTO/MANUAL . . select track numbering method
CD player
( ∞ . . . . . . . . . . . . . . previous track/search back
) § . . . . . . . . . . . . . . next track/search forward
¡ PLAY 2. . . . . . . . . start play
™ PAUSE ; . . . . . . . . interrupt play
£ STOP 9 . . . . . . . . . stops
≤ Disc tray
∞ OPEN/CLOSE. . . . . open/close disc tray
§ PHONES . . . . . . . . plug for headphones
≥ DISPLAY . . . . . . . . select display information
• DUAL . . . . . . . . . . . plays CD Recorder and CD Player
separately
1 Connection to power supply
4 ANALOG IN . . . . . . connects to the line output of an
amplifier. (left and right)
5 ANALOG OUT CDR & CD
. . . . . . . . . . . . . . . . connection for input line on amplifier
(left and right)
6 DIGITAL IN . . . . . . connection for digital coaxial input
from external source, e.g. amplifier
or recording device
7 DIGITAL OUT CDR & CD
. . . . . . . . . . . . . . . . connects to the digital coaxial input
of e.g. amplifier or recording device
8 OPTICAL IN . . . . . . connection for digital optical input
from external CD player
For use only in the DUAL mode (simultaneous play-back):
3 DIGITAL OUT CD. . connection for digital coaxial output
from CD deck to external device, e.g.
amplifier or recording device
2 ANALOG OUT CD . connection for analogue output from
CD deck to input line on an amplifier
(left and right)
