Philips CE152 - Mount into the Dashboard

8 EN
2 
illustrated, if applicable.

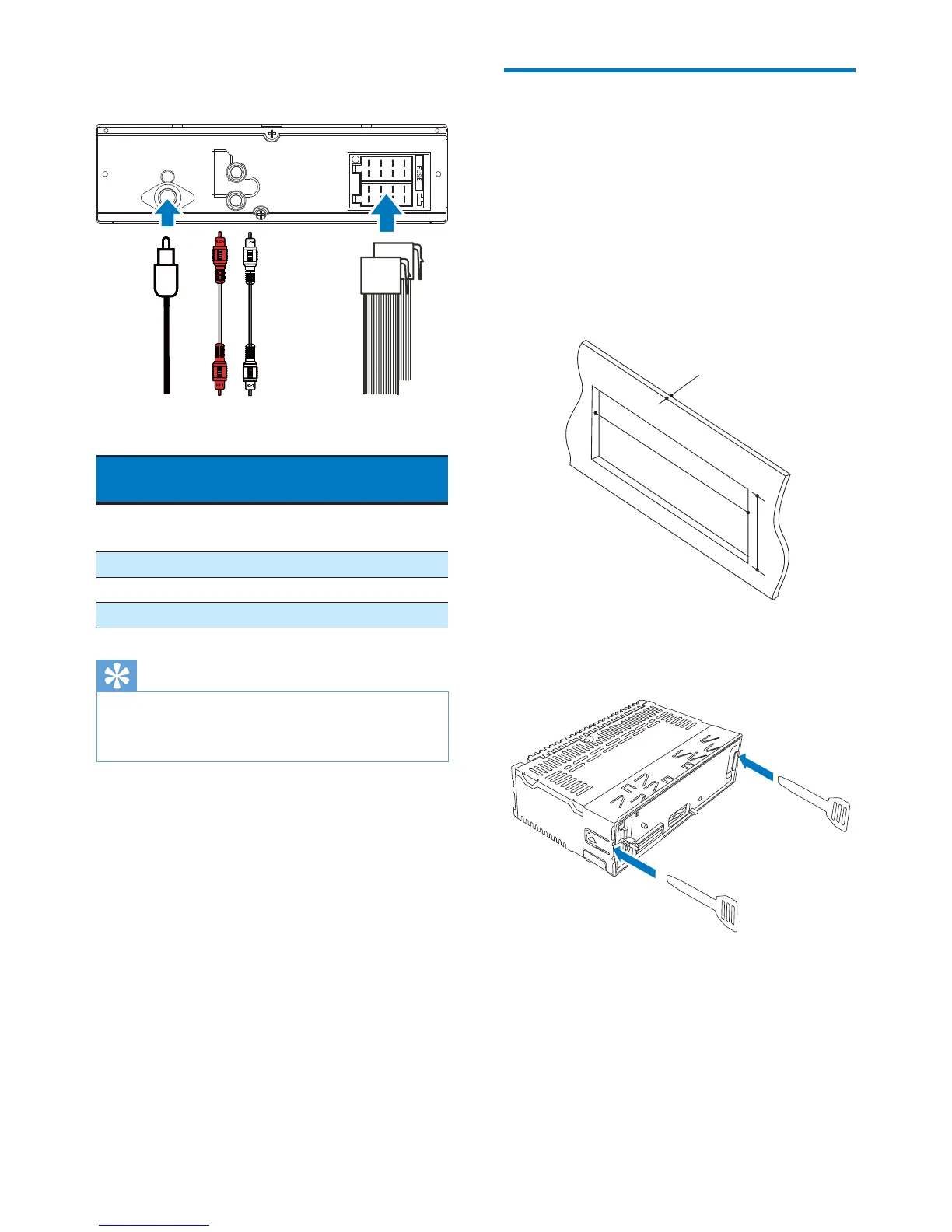

Sockets on rear
panel
External sockets or
connectors
1 For ISO male
connectors
As indicated above
2 REAR L Rear left speaker
3 REAR R Rear right speaker
4 ANTENNA Antenna
Tip
 The pin arrangement for the ISO connectors depends
on the type of your vehicle. To avoid damage to the
unit, connect properly.
REAR
L
R
abcd
Mount into the dashboard
 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
 If the car battery is not disconnected, to
avoid short-circuit, make sure that the bare
wires do not touch each other.
1 Make sure that the car dashboard opening
is within these measurements:
2 Remove the mounting sleeve with the
supplied disassembly tools.
183 mm
53mm
5mm
