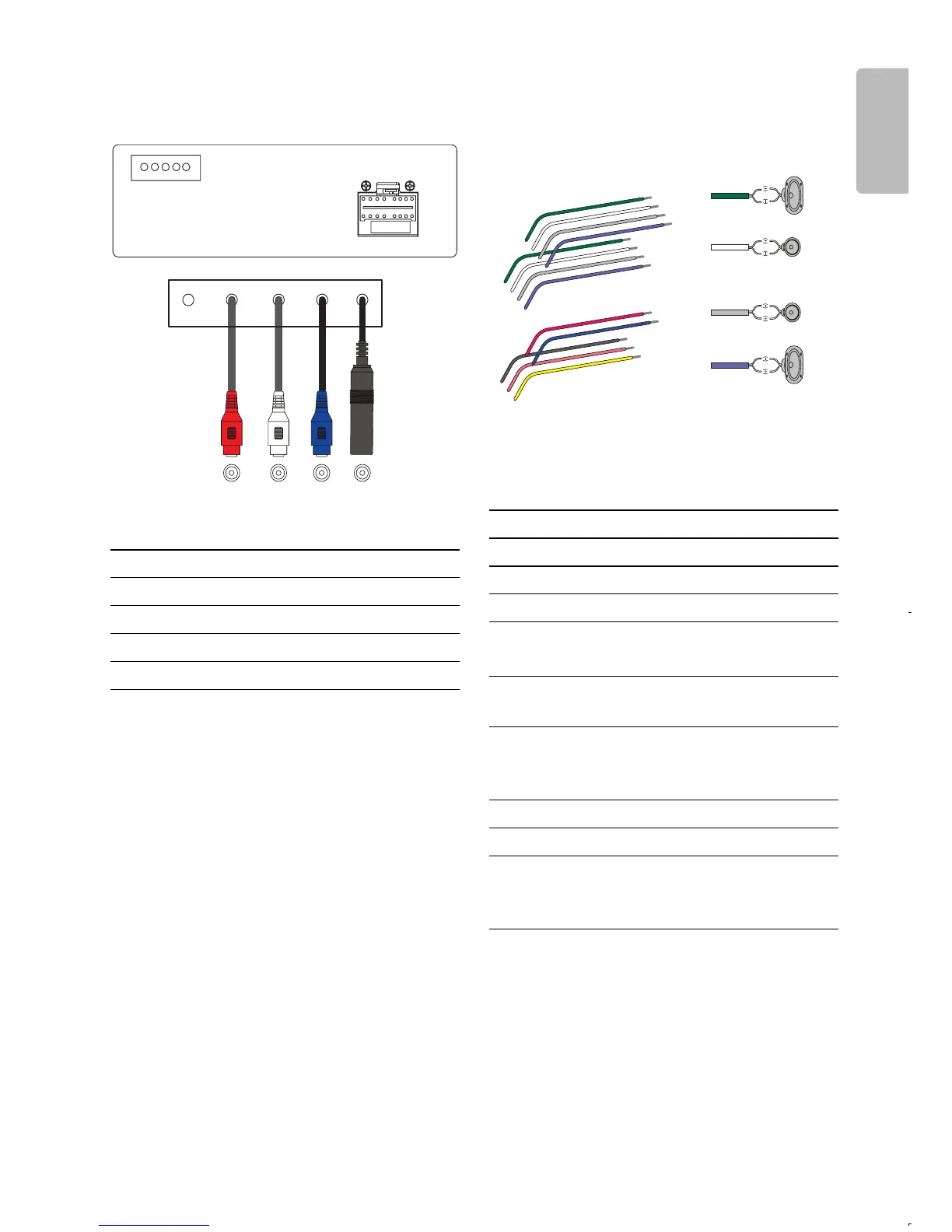

1 Connect the antenna and amplifi er as
illustrated, if applicable.
Connector Connect to
1 REAR LINE OUT R Rear right speaker
2 REAR LINE OUT L Rear left speaker
3 SUB OUT Subwoofer
4 ANTENNA Antenna
2 Cut off the bigger end of the supplied
standard connector.
3 Check the car’s wiring carefully and
connect them to the supplied standard
connector.
A1 A2 A3 A4 A5 A6 A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
A
A
B
abcd
1 Green/black strip Left speaker (Rear)
2 White/black strip Left speaker (Front)
3 Gray/black strip Right speaker (Front)
4 Purple/black strip Right speaker (Rear)
e RED Ignition key +12V DC
when ON/ACC
f BLUE Motor/electric antenna
relay control lead/Amplifi er
relay control lead
g BLACK Ground
h PINK Illumination switch
i YELLOW To the +12V car battery
which is energized at all
times
B
b
a
c
d
aa
b
c
d
a
b
e
f
c
d
g
h
i
b
c
d
