8 EN
Connection: for cars with ISO
connectors
Caution
Ensure that all loose leads are insulated with electrical •
tape.

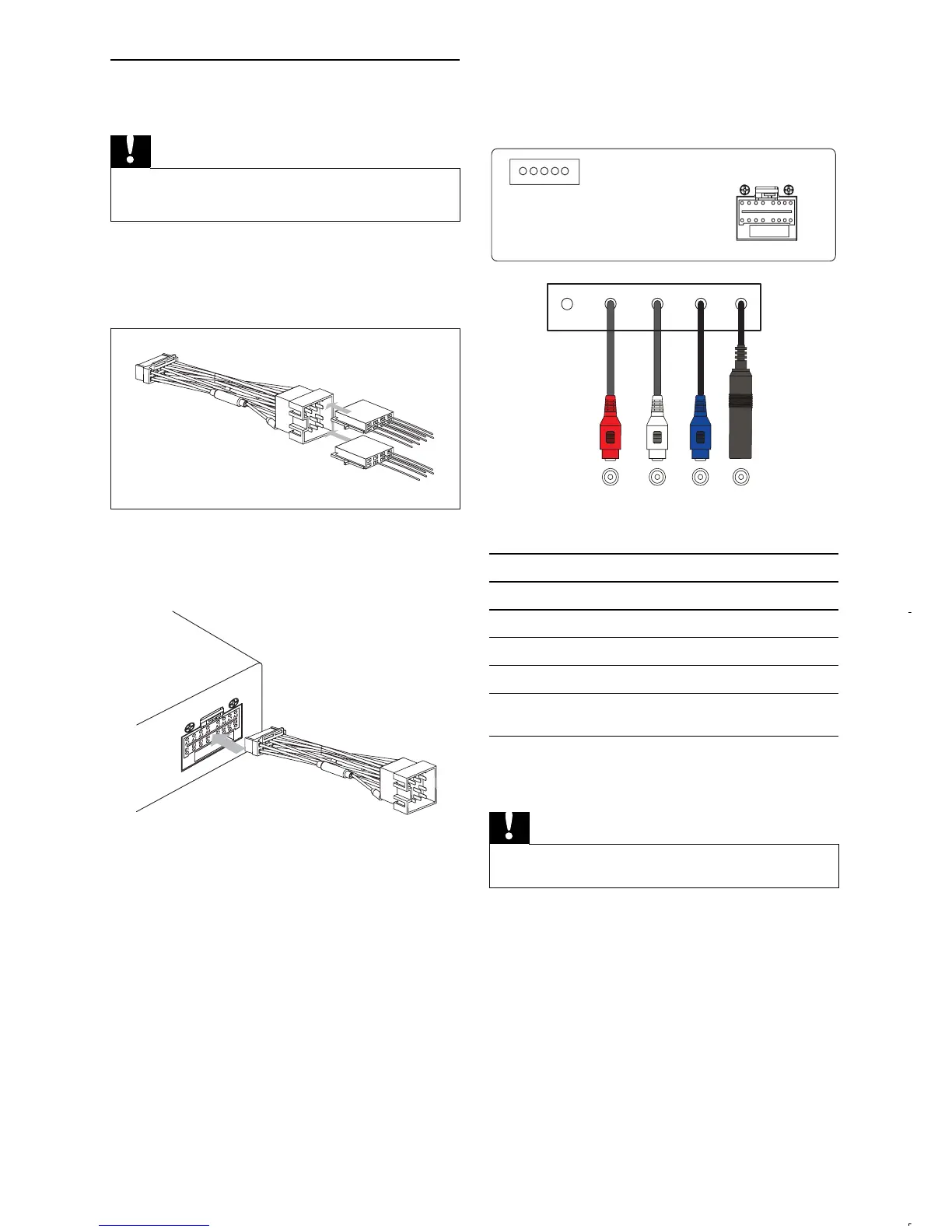

1 Pull out the ISO connectors from car
dashboard and connect them to the bigger
end of the supplied standard connector.
2 Connect the other end of the supplied
standard connector to the unit.
3 Connect the antenna and amplifi er as
illustrated, if applicable.
Connector Connect to
1 REAR LINE OUT R Rear right speaker
2 REAR LINE OUT L Rear left speaker
3 SUB OUT Subwoofer
4 ANTENNA Antenna
Connection: for cars without ISO
connectors
Caution
Be sure to connect the black ground (earth) lead fi rst.•
A1 A2 A3 A4 A5 A6 A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
A
A
B
abcd
