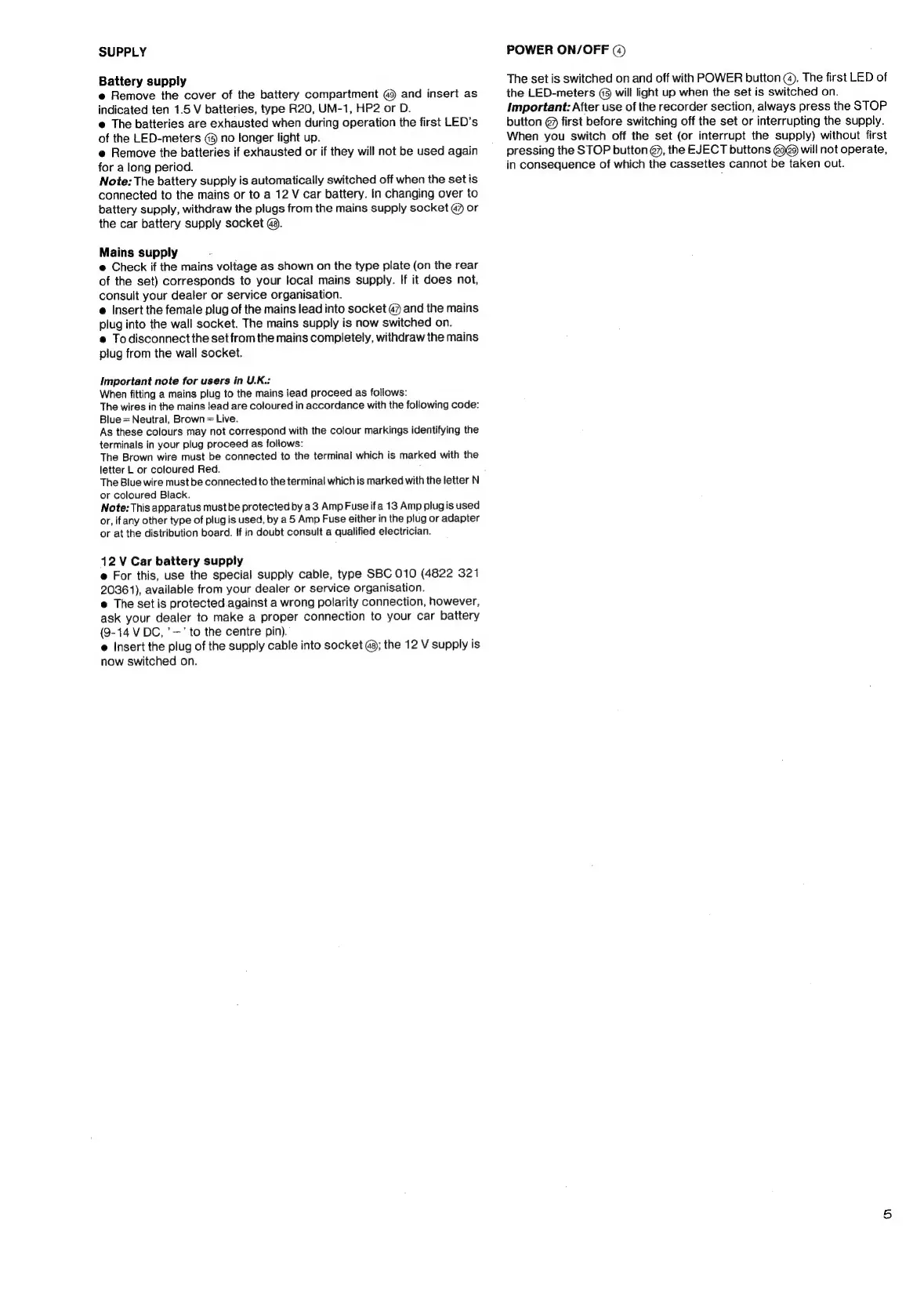

SUPPLY
Battery supply
e Remove the cover of the battery compartment @9 and insert as
indicated ten 1.5 V batteries, type R20, UM-1, HP2 or D.
@ The batteries are exhausted when during operation the first LED’s
of the LED-meters G no longer light up.
@ Remove the batteries if exhausted or if they will not be used again
for a long period.
Note: The battery supply is automatically switched off when the setis
connected to the mains or to a 12 V car battery. In changing over to
battery supply, withdraw the plugs from the mains supply socket @ or
the car battery supply socket @.
Mains supply
@ Check if the mains voltage as shown on the type plate (on the rear
of the set) corresponds to your local mains supply. If it does not,
consult your dealer or service organisation.
e Insert the female plug of the mains lead into socket @ and the mains
plug into the wall socket. The mains supply is now switched on.
e Todisconnect the set from the mains completely, withdraw the mains
plug from the wail socket.
Important note for users in U.K.:
When fitting a mains plug to the mains lead proceed as follows:
The wires in the mains lead are coloured in accordance with the following code:
Blue = Neutral, Brown = Live.
As these colours may not correspond with the colour markings identifying the
terminals in your plug proceed as follows:
The Brown wire must be connected to the terminal which is marked with the
letter L or coloured Red.
The Blue wire must be connected to the terminal which is marked with the letter N
or coloured Black.
Note: This apparatus mustbe protected by a3 Amp Fuse ifa 13 Amp plugis used
or, if any other type of plug is used, by a 5 Amp Fuse either in the plug or adapter
or at the distribution board. ff in doubt consult a qualified electrician.
12 V Car battery supply
e For this, use the special supply cable, type SBC 010 (4822 321
20361), available from your dealer or service organisation.
@ The set is protected against a wrong polarity connection, however,
ask your dealer to make a proper connection to your car battery
(9-14 V DC, ’—’ to the centre pin).
@
Insert
the
plug
of
the
supply
cable
into
socket
@;
the
12
V
supply
is
now
switched
on.
POWER ON/OFF ()
The set is switched on and off with POWER button @). The first LED of
the LED-meters ( will light up when the set is switched on.
Important: After use of the recorder section, always press the STOP
button @ first before switching off the set or interrupting the supply.
When you switch off the set (or interrupt the supply) without first
pressing the STOP button @, the EJECT buttons will not operate,
in consequence of which the cassettes cannot be taken out.
