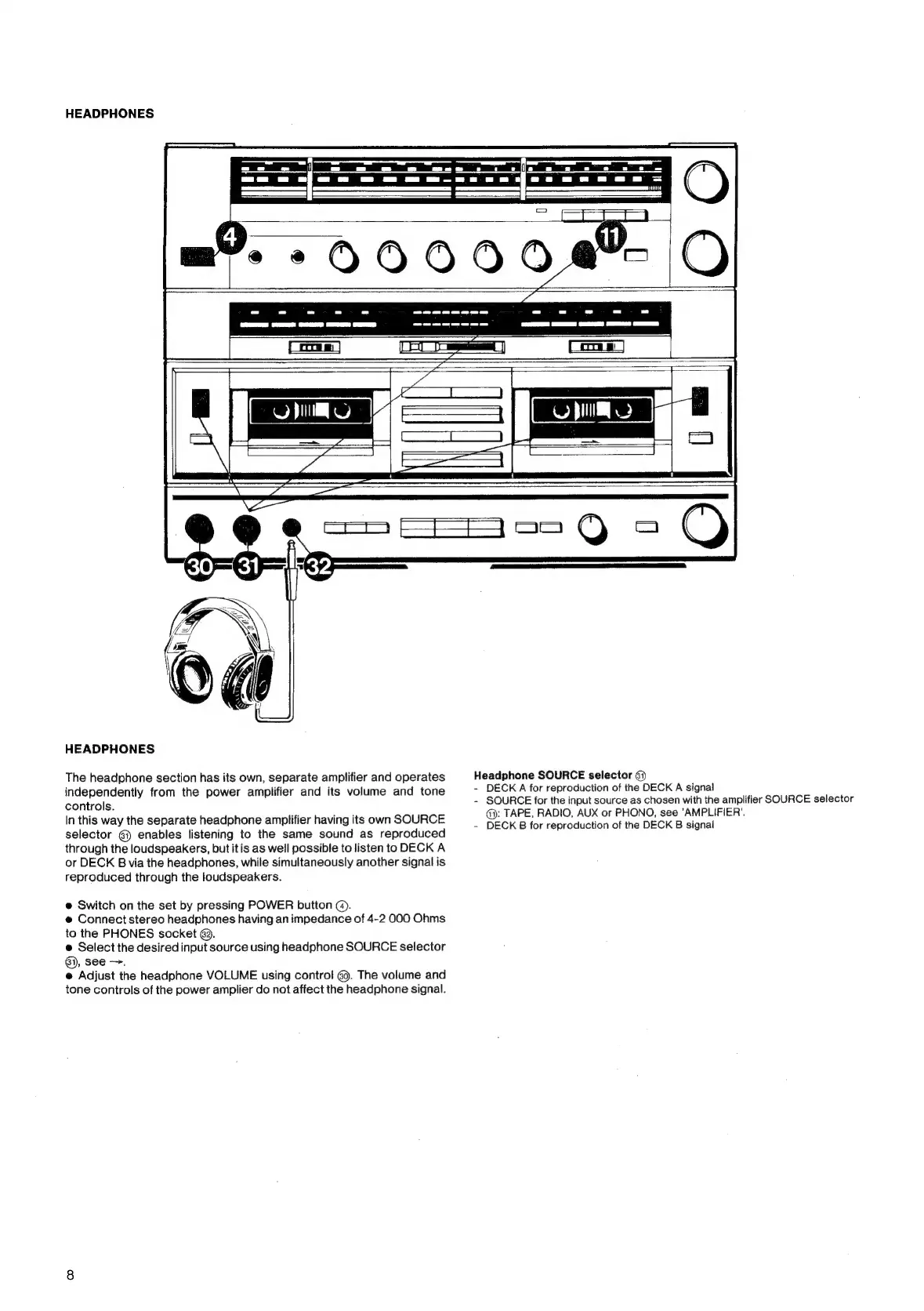

HEADPHONES
| Le
err
aoe
———l
HEADPHONES
The headphone section has its own, separate amplifier and operates
independently from the power amplifier and its volume and tone
controls.
In this way the separate headphone amplifier having its own SOURCE
selector @ enables listening to the same sound as reproduced
through the loudspeakers, but it is as well possible to listen to DECK A
or DECK B via the headphones, while simultaneously another signal is
reproduced through the loudspeakers.
e Switch on the set by pressing POWER button @).
@ Connect stereo headphones having an impedance of 4-2 000 Ohms
to the PHONES socket 69.
e Select the desired input source using headphone SOURCE selector
@), see —.
@ Adjust the headphone VOLUME using control é9. The volume and
tone controls of the power amplier do not affect the headphone signal.
Headphone SOURCE selector ¢)
- DECK A for reproduction of the DECK A signal
- SOURCE for the input source as chosen with the amplifier SOURCE selector
@: TAPE, RADIO, AUX or PHONO, see 'AMPLIFIER’.
- DECK 8B for reproduction of the DECK B signal
