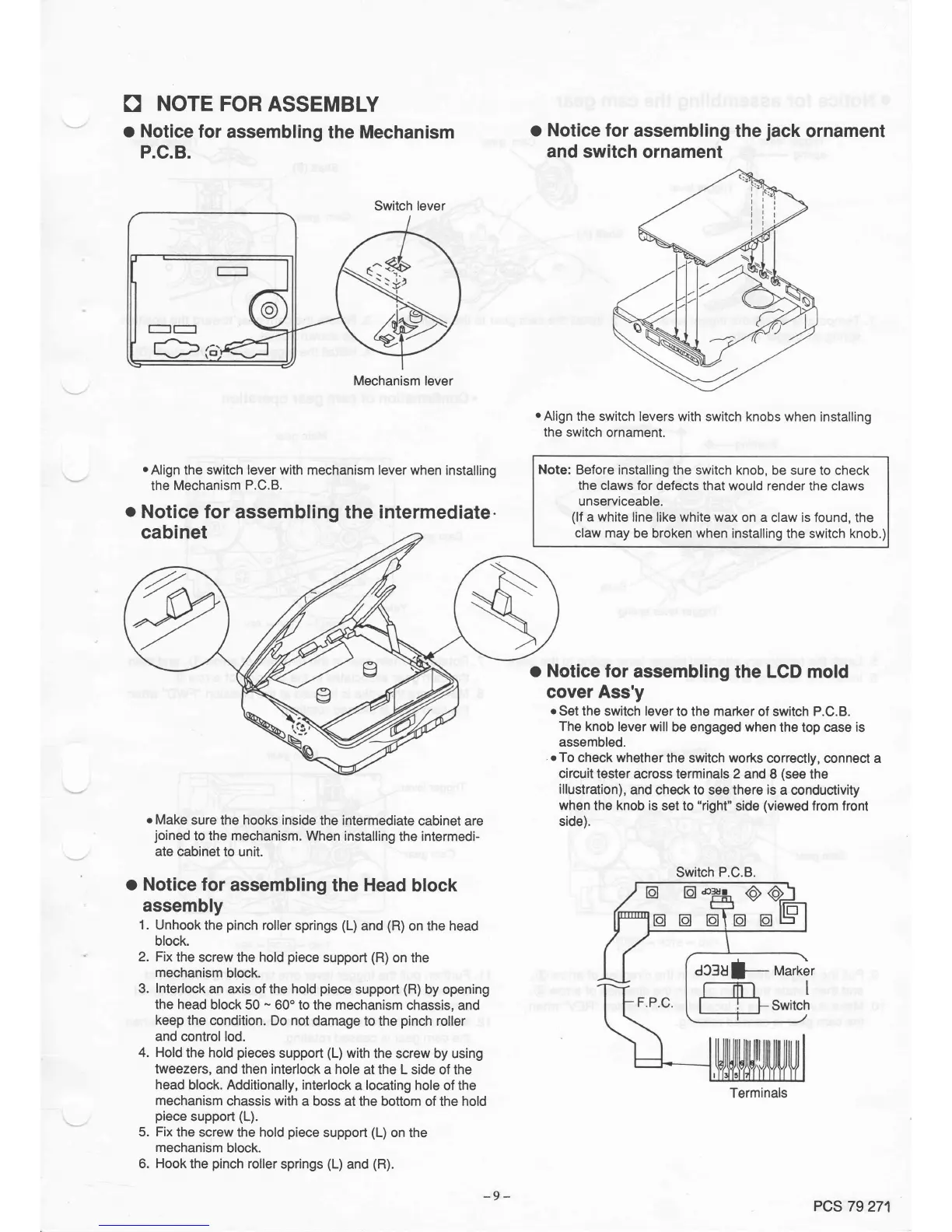

Switch lever
Mechanism
lever
O
NOTE
FOR
ASSEMBLY
o
Notice
Íor
assembling
the
Mechanism
P.C.B.
o
Align
the
switch lever with
mechanism
lever when
installing
the
Mechanism
P.C.B.
o
Notice for
assembling the intermediate-
cabinet
o
Make
sure
the hooks inside
the intermediate
cabinet are
joined
to the mechanism.
When
installing
the
intermedi-
ate
cabinet
to unit.
o
Notice
Íor
assembling
the
Head
block
assembly
1.
Unhook
the
pinch
roller
springs
(L)
and
(R)
on
the head
block.
2. Fix the
screw
the hold
piece
support
(R)
on the
mechanism
block.
3.
Interlock
an axis
of the
hold
piece
support
(R)
by opening
the head
block
50
-
60"
to the mechanism
chassis,
and
keep
the condition.
Do not
damage
to
the
pinch
roller
and
control lod.
4. Hold
the
hold
pieces
support
(L)
with
the screw by using
tweezers,
and then interlock
a hole
at
the L side
of the
head
block.
Additionally, interlock
a
locating
hole of the
mechanism
chassis with
a boss
at the bottom
of the
hold
piece
support
(L).
5. Fix
the screw
the hold
piece
support
(L)
on the
mechanism
block.
6.
Hook
the
pinch
roller
springs
(L)
and
(R).
o
Notice
Íor
assembling
the
jack
ornament
and
switch
ornament
.
Align the
switch
levers with switch
knobs when
installing
the switch
ornament.
Note:
BeÍore installing
the switch
knob, be sure
to check
the
claws for deÍects
that
would render
the
claws
unseryiceable.
(lÍ
a white
line like white
wax
on a claw is Íound,
the
claw
may
be broken
when
installing the switch
knob.)
o Notice
Íor
assembling
the
LCD mold
cover Ass'y
o
Set
the switch lever
to the
marker
of switch
P.C.B.
The knob
lever
will
be engaged when
the
top
case
is
assembled.
.
o
To
check whether
the switch
woks
correctly,
connect a
circuit
tester
across terminals 2
and
I
(see
the
illustration),
and check to
see there
is
a conductivity
when
the
knob
is
set to
"right"
side
(viewed
from
front
side).
Switch
P.C.B.
dJ3U
t-
Marker
o
o o-fo oLLtr
Terminals
-9-
PCS
79
271
