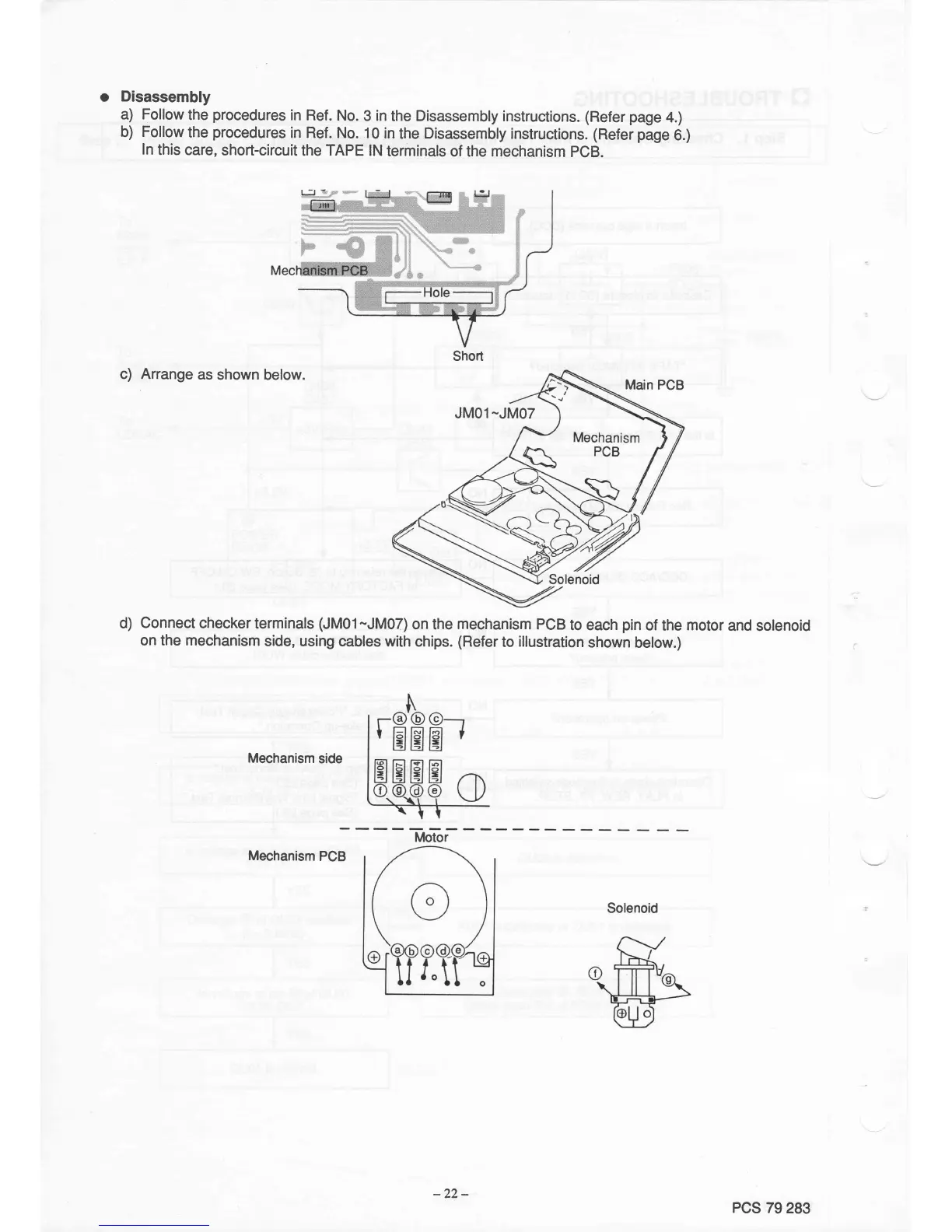

Disassembly
a)
Follow
the
procedures
in Ref. No.
3
in
the Disassembly
instructions.
(ReÍer
page
4.)
b) Follow
the
procedures
in
ReÍ. No.
10 in
the
Disassembly
instructions.
(ReÍer page
6.)
ln
this
care,
short-circuit
the TAPE lN
terminals
oÍ the mechanism
pCB.
c)
Arrange
as
shown
below.
Connect
checker
terminals
(JM01-JM07)
on the
mechanism
PCB
to each
pin
oÍ thê
motor
and solenoid
on the
mechanism
side,
using
cables with
chips.
(ReÍer
to
illustration
shown below.)
Mechanism
side
Mechanism
PCB
Solenoid
PCS
79
283
Short
Main
PCB
JMOl
^,JMO7
Motor
-22-
