Philips DCD322/12 - Technical Specification and Connection Facilities and Version Variation

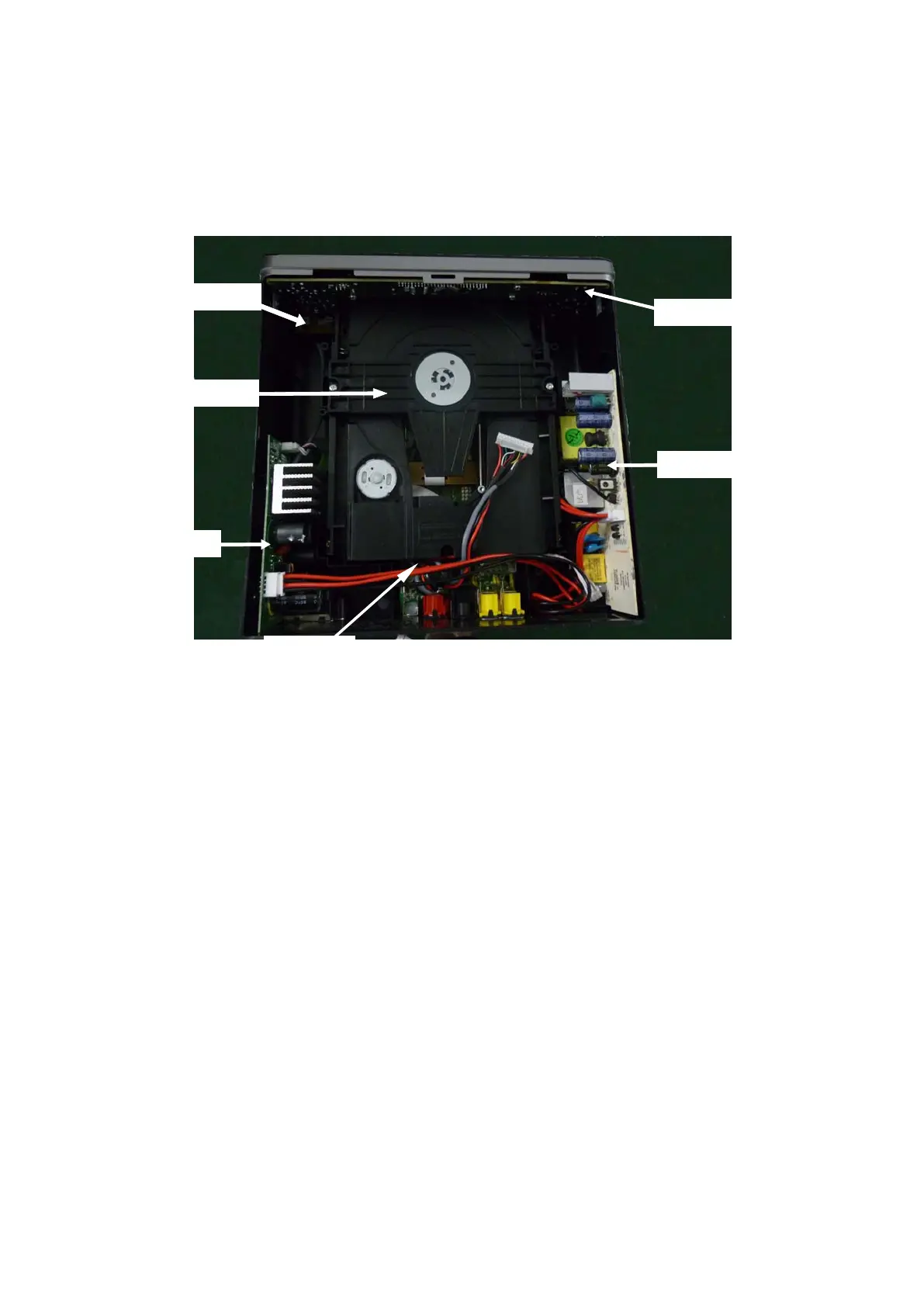

1.1 PCB Locations
1.2 General
Power supply : 100-240V, 50Hz~60Hz
Power consumption : 45W
Standby power consumption : < 1 W
Signal system : PAL/NTSC
HDMI output : 480p,576p,720p,1080i,
1080p,1080p24
Video output : 480/576i,480/576p,
720p,1080i
Video Supporting Format
1-1
Technical Specification and Connection Facilities
1. Technical Specification and Connection Facilities
1.3 Radio
1.4 Amplifier
Tuning Frequency Rang : 87.5MHz - 108MHz
Frequency Response : 63Hz~12.5KHz±3dB
Signal to Noise Ratio : >55dB
Search Selectivity : >28dB
Distortion : <2%
Output voltage : 1Vpp
±0.1Vpp
,QSXWLPSOHGDQFH!.ȍ
＞
Output voltage : 1Vpp ± 0.1V
2XWSXWLPSOHGDQFHȍ
S/N RQRXWSXWG%
Audio Input/Output
COAXIAL Digital In
DTS : according IEC 61937+
1.5 Connectivity
Video In/Output
USB
Compatibility : USB2.0
Type of connector : Series A Connector
Class support : UMS(USB Mass Storage Class)
File System : FAT12,FAT16,FAT32
Sampling Frequency
MP3 : 22kHz, 44.1kHz, 48kHz
WMA : 44.1kHz, 48kHz
Canstant bit rate
CVBS
MP3 : 32 - 320 kbps
Amplitude Output : 1Vpp±10%
White Bar : 714mV±10%
Sync.Amplitude : 286mV±10%
S/N Luminance G%
DC Level 9
WMA : 44 kbps - 192 kbps
Tuning Grid :50KHz
LPCM : according IEC 60958-3
MPEG1,MPEG2,AC3 : according IEC 61937
Output signal amplitude : 0.5Vpp±20%
Input impledance ȍ
DC Output Voltage : ＜0.05V
Display Board
Headphone and USB Board
Power Board
AMP Board
Decoder Board
DVD Loader
Rated Output Power : 2X30W RMS
Frequency Response : 40Hz-20000Hz,
±3dB
Signal to Noise Ratio : >65dB
Aux Input : 1V RMS 20k ohm
