Philips DFR9000 - Hardware Component Identification

3-1 3-1
Video I/O DABASP
AM/FM Tuner
Speaker TerminalDigital I/O
Front Left Front I/OFront Keys Front Control Front Right
UCD Amplifier (3x)
DAB Interface
VPB
Standby
Supply
Power Supply

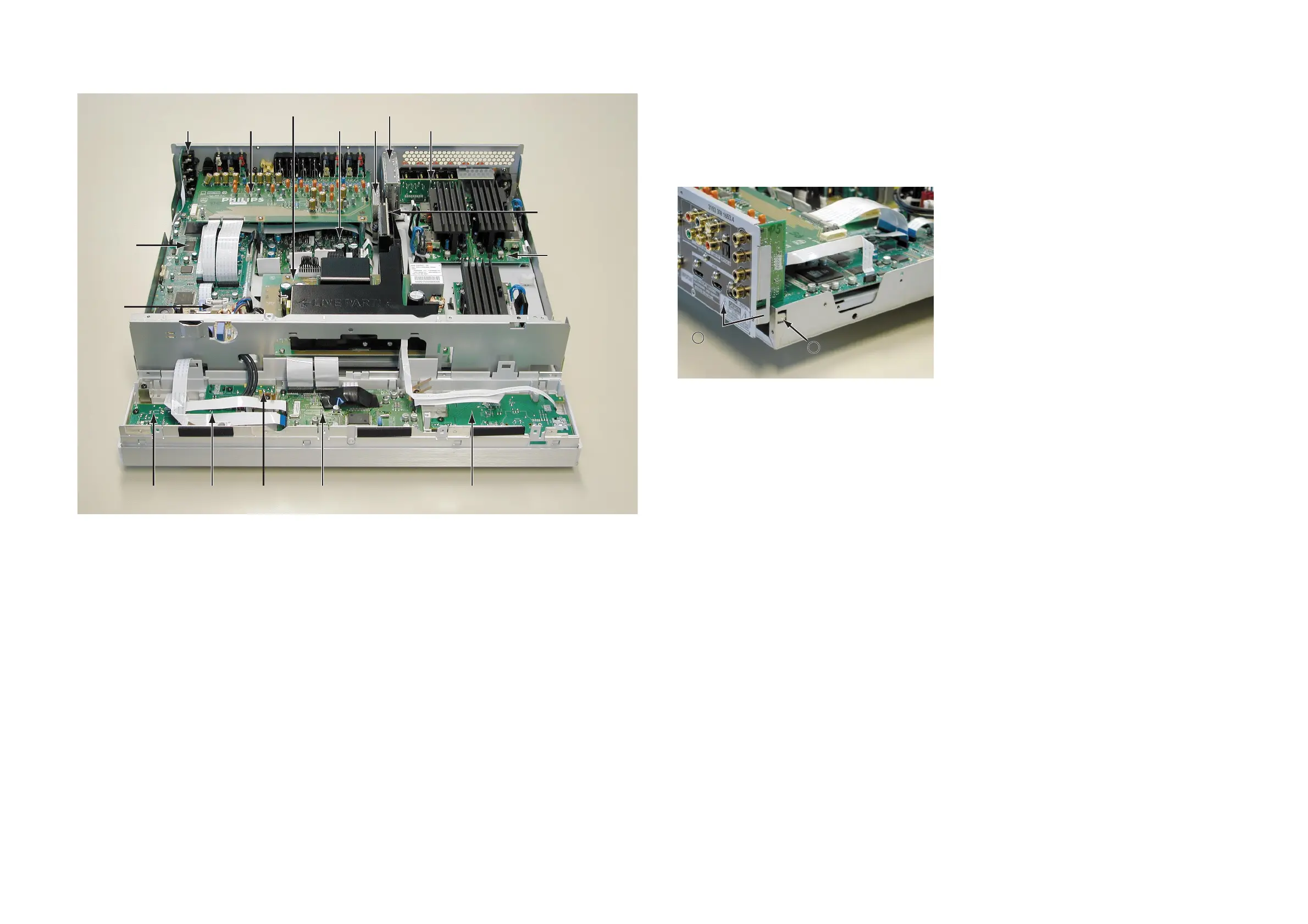

LOCATION OF PRINTED BOARDS DISMANTLING
• Remove top cover (2 screws on the left, 2 screws on the
right, 5 screws on the rear)
• Remove front (4 screws on top, 4 screws on bottom)
• Remove air channel (4 screws in corners)
• Remove safety cover
• Loosen frame screws (2 screws on the left, 2 screws on
the right, 3 screws on the rear, 1 screw on the bottom)
• Loosen snaps and pull out frame as shown below
Pull out frame
2
Loosen left&right snap
1
