Step 1: Basic Recorder Connections
A
B

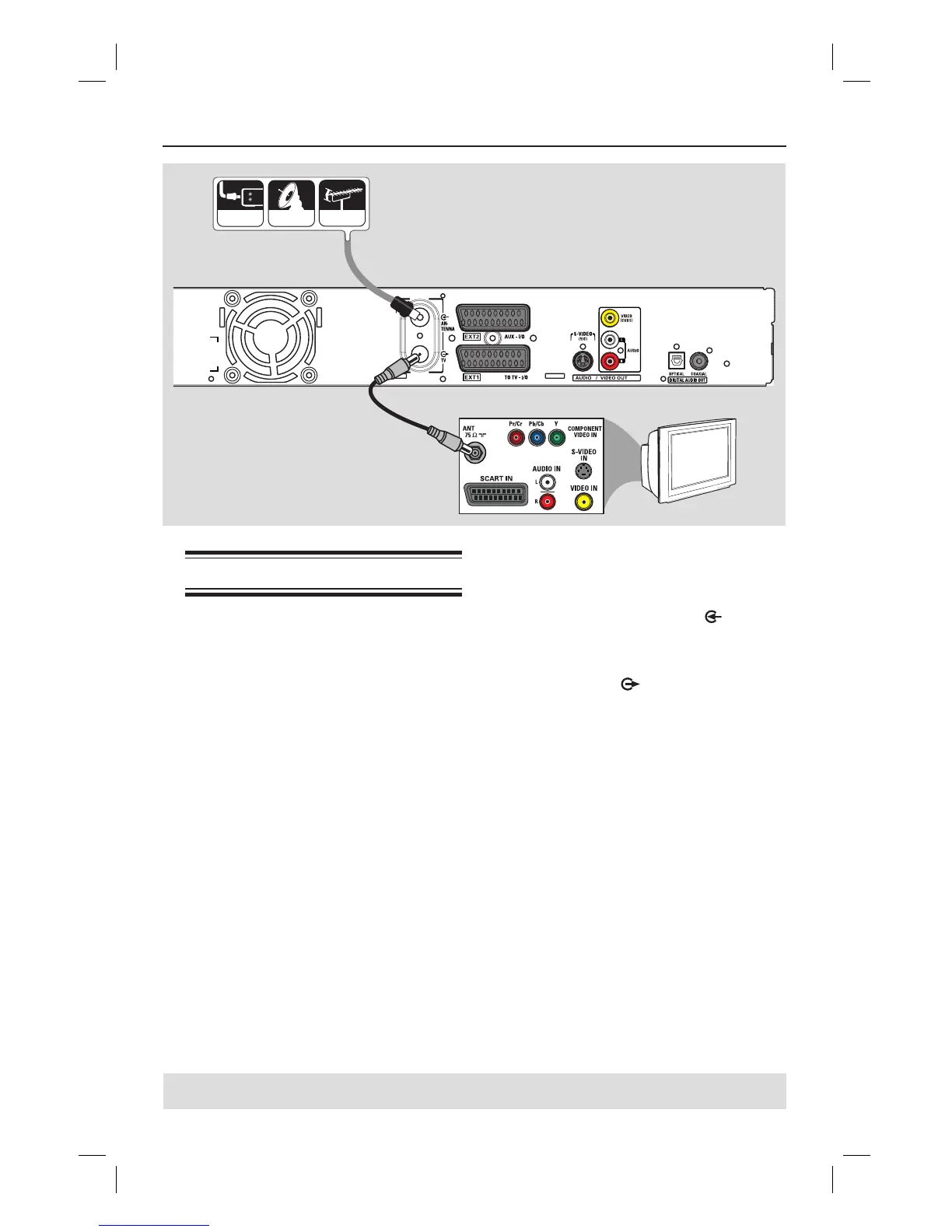

Connecting the aerial cables
These connections enable you to watch
and record TV programmes using this
recorder. If the aerial signal is connected
via a Cable Box or Satellite Receiver,
ensure that these devices are turned on
in order to watch or record the cable
programmes.
If you want to connect to a VCR
and/or a separate Cable Box/
Satellite Receiver, see page 19~21 for
other possible connections.
A
Connect the existing Aerial/Satellite/
Cable TV signal (or from the Cable Box/
Satellite Receiver, labelled as RF OUT or
TO TV) to the ANTENNA
socket
on the recorder.
B
Use the supplied RF coaxial cable to
connect the TV
socket on the
recorder to the aerial input socket (or
labelled as VHF/UHF RF IN) on your TV.
Helpful Hint:
– Depending on how you have currently
connected your TV channel (directly from an
off-air aerial or Cable box or VCR), you’ll
have to disconnect some of the cables before
you make the above connection.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
