English
15
Step 1: Basic Recorder Connections
AN-
TENNA
TV
S-VIDEO
(Y/C)
VIDEO
(CVBS)
AUDIO
R
L
AUDIO / VIDEO OUT
COAXIAL
DIGITAL AUDIO OUT
TO TV - I/O
AUX - I/
O
EXT
1
EXT2
CABLE
SATELLITE
ANTENNA
TV
A
B

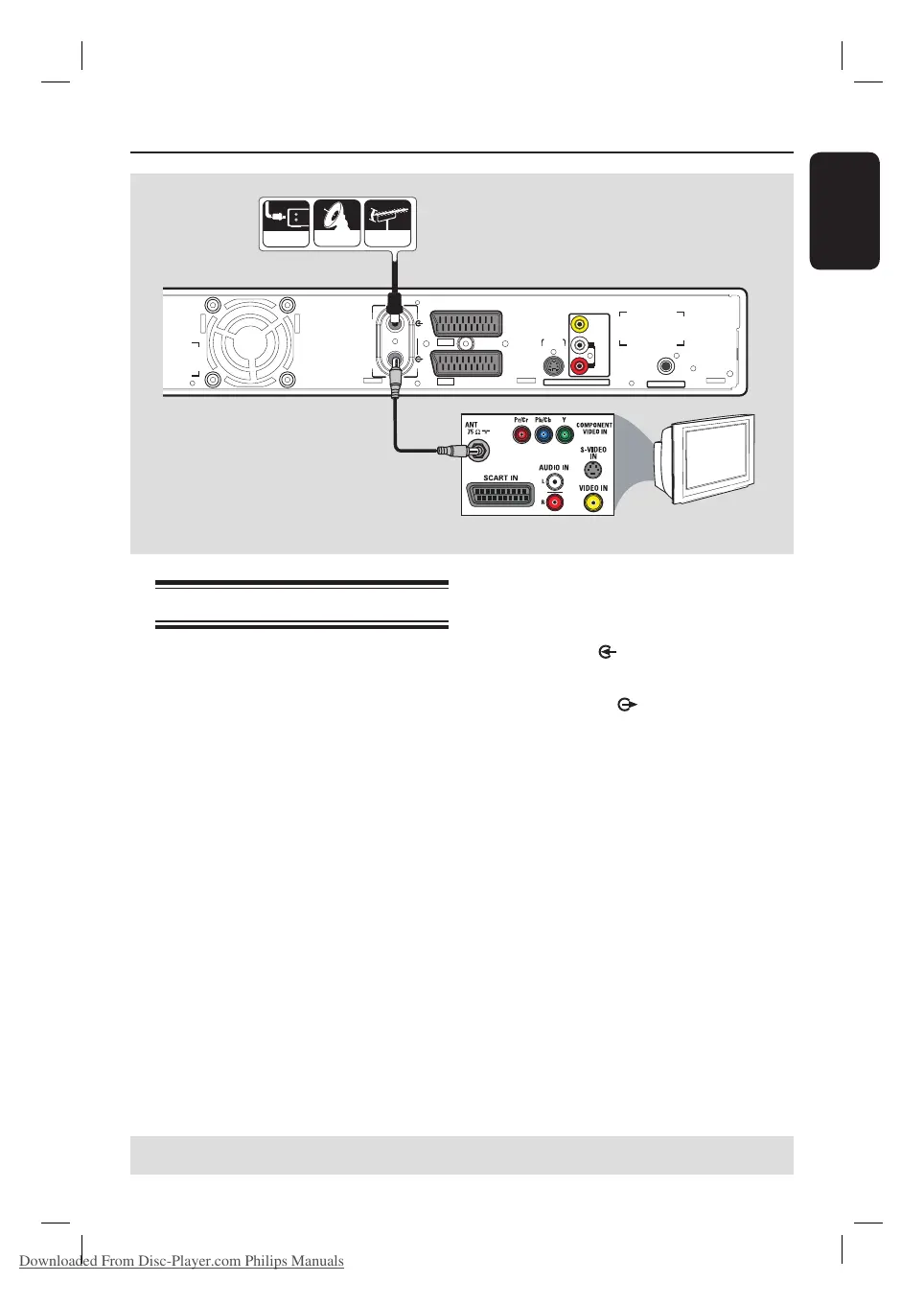

Connecting the aerial cables
These connections enable you to watch
and record TV programmes using this
recorder. If the aerial signal is
connected via a VCR, Cable Box or
Satellite Receiver, ensure that these
devices are turned on in order to watch
or record the cable programmes.
If you want to connect to a VCR
and/or Cable Box/Satellite Receiver,
see the chapter “Step 2 : Optional
Connections” for the possible
connections to your TV.
A Connect the existing Aerial/Cable TV
signal (or from the Cable Box/Satellite
Receiver {RF OUT or TO TV}) to the
ANTENNA socket on the recorder.
B Use the supplied RF coaxial cable to
connect the TV socket on the
recorder to the aerial input socket (or
labelled as VHF/UHF RF IN) on your TV.
Helpful Hint:
– Depending on how you have currently
connected your TV (directly from an
off-air aerial or Cable box or VCR), you will
have to disconnect some of the cables before
you make the above connection.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
