Step 2: Optional Connections
AN-
TENNA
TV
S-VIDEO
(Y/C)
VIDEO
(CVBS)
AUDIO
R
L
AUDIO / VIDEO OUT
COAXIAL
DIGITAL AUDIO OUT
TO TV - I/O
AUX - I/
O
EXT
1
EXT2
~
MAINS
RF
S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
TO TV
CABLE
SATELLITE
ANTENNA
TV
B
D
E

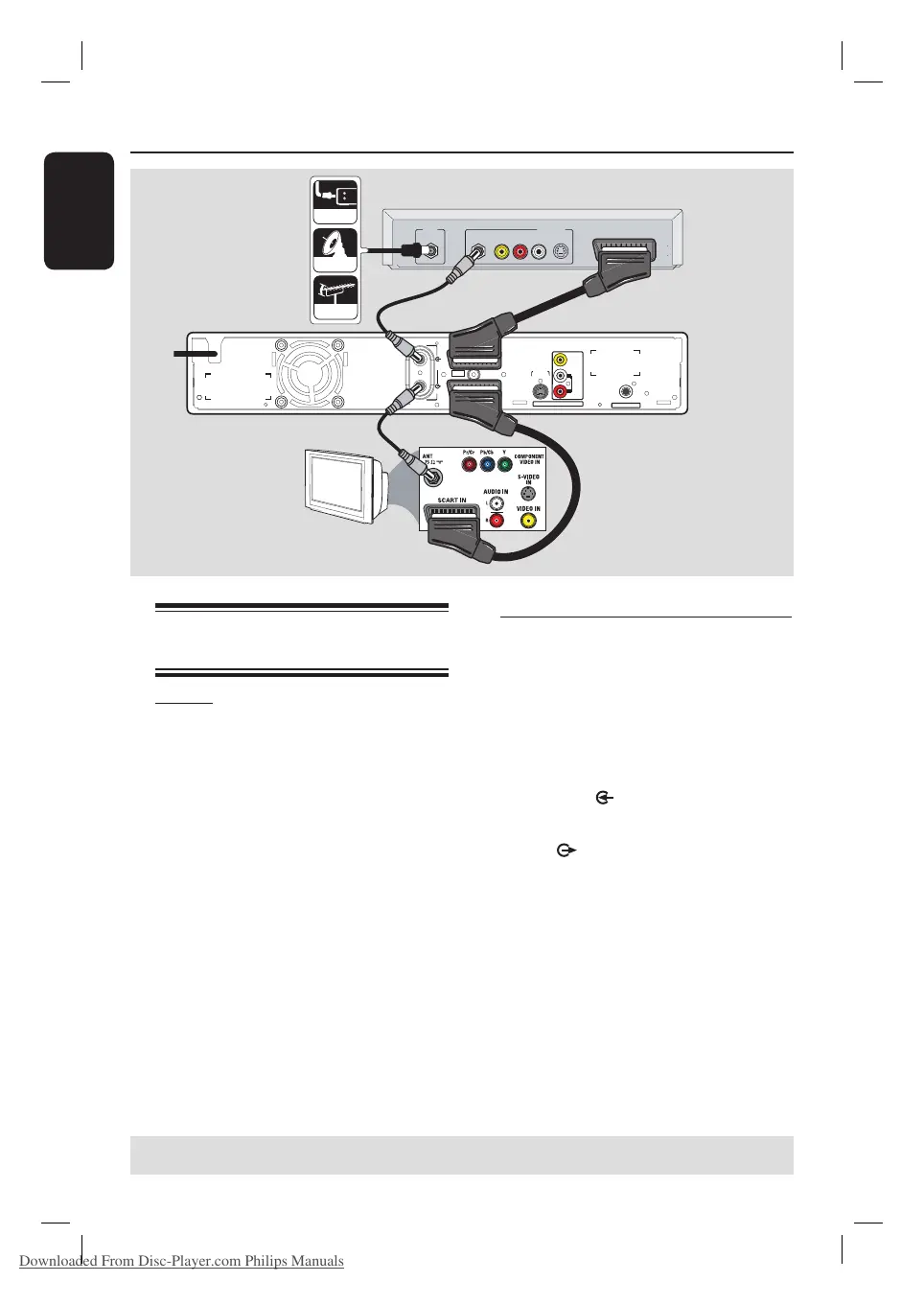

Back of a Cable Box or Satellite
Receiver (Example only)
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an aerial output socket
(RF OUT or TO TV),
see “Step 1: Basic Recorder Connections
– Connecting the aerial cables” for the
complete connections to your TV.
Option 2 (as shown on the above illustration)
If your Cable Box/Satellite Receiver
has a SCART output socket
A Keep the existing aerial connection to
your Cable Box/Satellite Receiver.
B Use a RF coaxial cable to connect the
Cable Box/Satellite Receiver signal (or
labelled as RF OUT or TO TV) to the
ANTENNA
socket on the recorder.
C Use another RF coaxial cable to connect
the TV socket on the recorder to the
aerial input socket on the TV.
D Use the SCART cable to connect the
EXT1 TO TV-I/O scart socket on the
recorder to the corresponding SCART
input socket on the TV.
E Use another SCART cable to connect the
EXT2 AUX-I/O scart socket on the
recorder to the SCART output socket
(or labelled as TV OUT or TO TV) on
the Cable Box/ Satellite Receiver.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
C
A
