Philips DVDR3440H - Connecting the Audio Cables

English
17

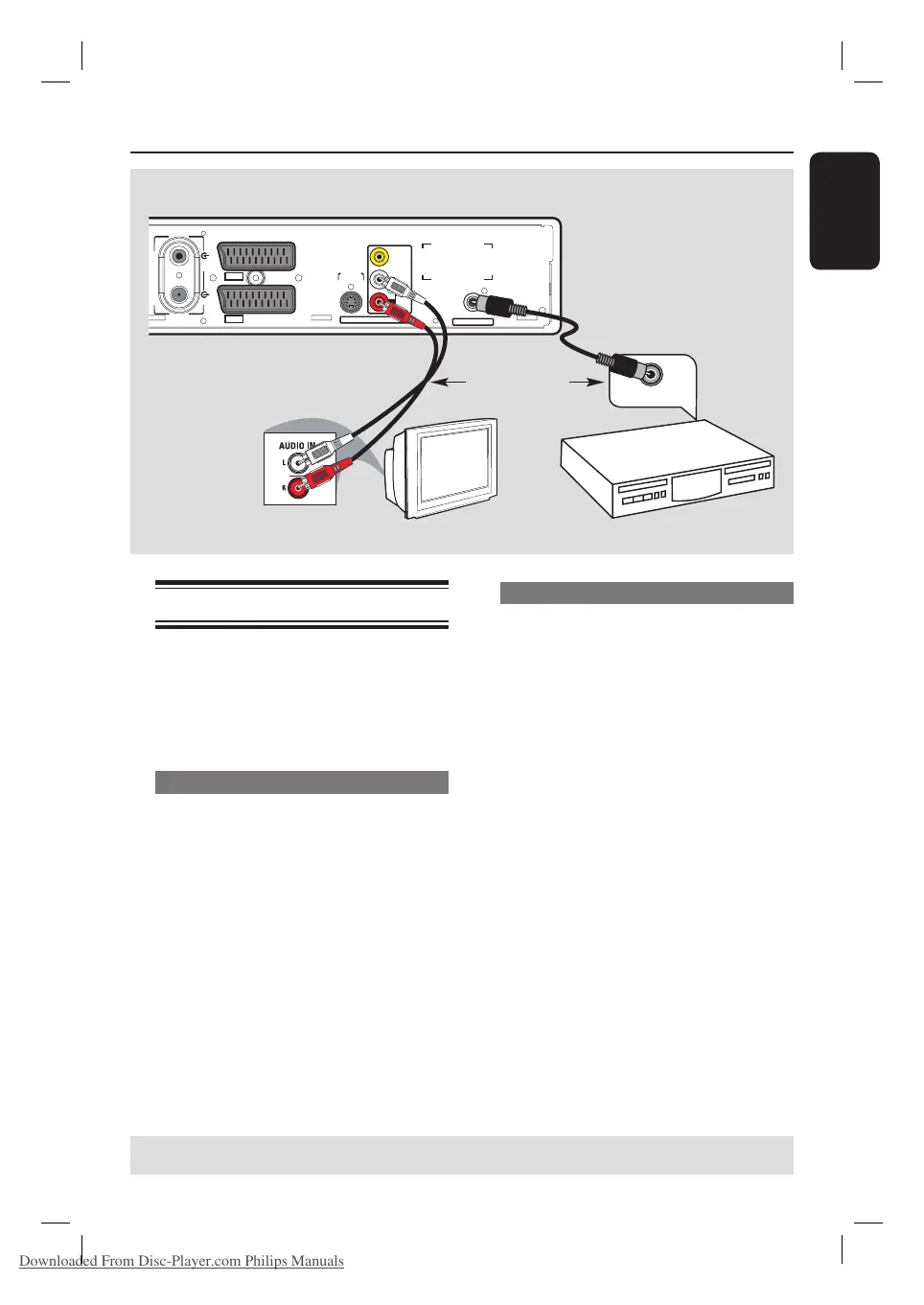

Connecting the audio cables
This connection enables you to listen to
the sound. However, this connection is
not required if this recorder is connected
to the TV using the supplied SCART
cable.
Option 1: Using an audio cable
You can connect the recorder to a two
channel stereo system (mini system, TV)
or receiver in order to enjoy the stereo
sound system.

Use the supplied audio cable (red/white
ends) to connect the AUDIO L/R OUT
sockets to these devices with the same
input sockets.
Step 1: Basic Recorder Connections (continued)
AN-
TENNA
TV
S-VIDEO
(Y/C)
VIDEO
(CVBS)
AUDIO
R
L
AUDIO / VIDEO OUT
COAXIAL
DIGITAL AUDIO OUT
TO TV - I/O
AUX - I/
O
EXT
1
EXT2
DIGITAL IN
TV
AV ampli er/
receiver
Option 1
Option 2
Option 2: Using a coaxial cable
You can connect the recorder to an AV
ampli er/receiver in order to enjoy
multichannel surround sound.

Use a coaxial cable (not supplied).
Connect the COAXIAL (DIGITAL
AUDIO) socket on the recorder to the
digital input of the ampli er/receiver.
Before you start operating, set the digital
audio output settings accordingly (see the
section “PLAYBACK settings – Digital
Audio Output”). If the AUDIO settings
do not match your ampli er’s capabilities,
the ampli er may produce a strong,
distorted sound or no sound at all.
Helpful Hint:
– Do not connect your TV’s audio output
sockets to the AUDIO L/R (IN-EXT) sockets
on this recorder, this may cause unwanted
noise.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
OR
TV/Stereo
