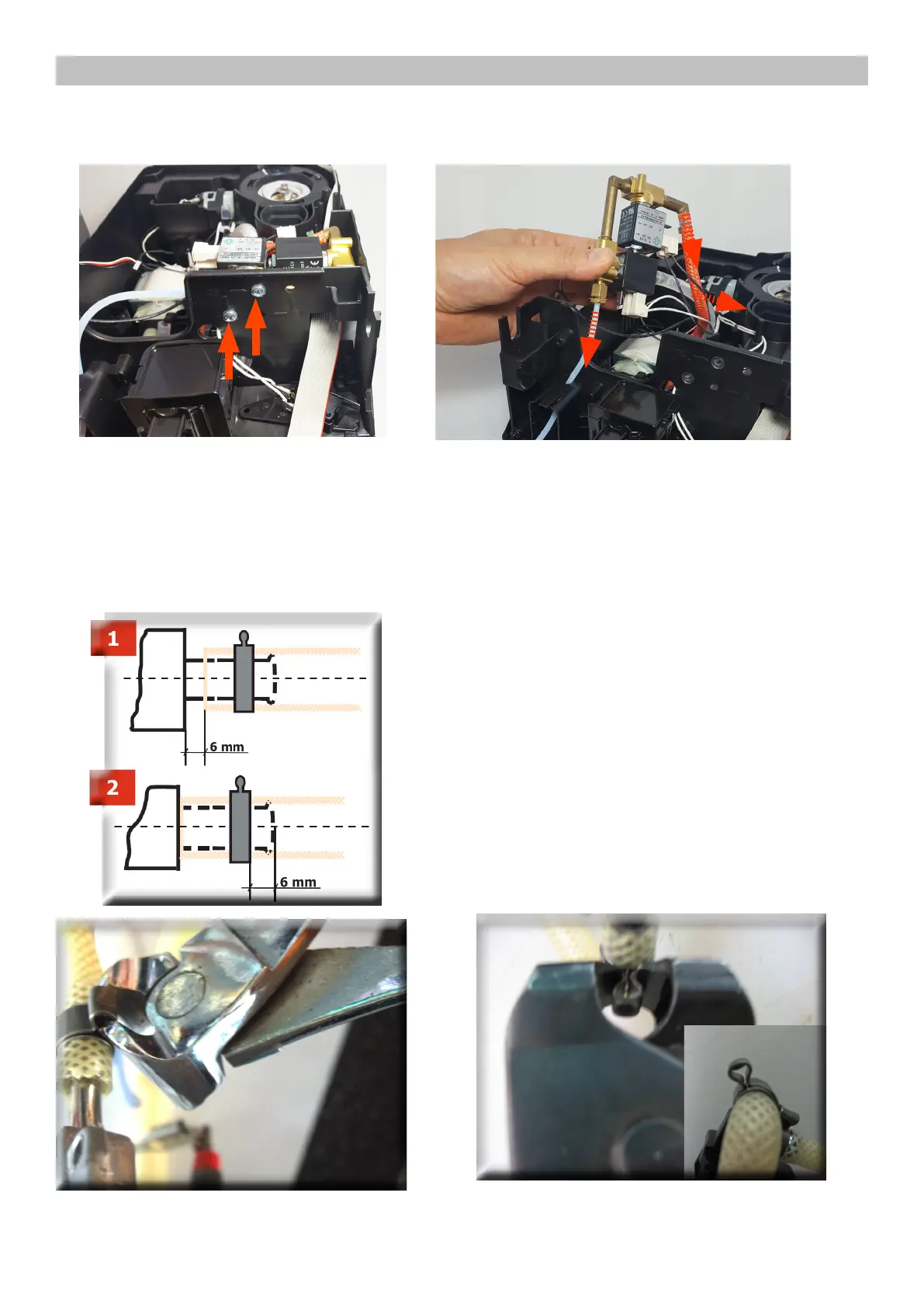

PHI 5000 LATTE GO / GO+ 08 DISASSEMBLY
10/7
Use a suitable pair of pliers to remove
the clamp (as illustrated).
Tighten the clamp as illustrated.
1) Boiler connection.
2) Other connections.
7.17. Fitting and removing Oetiker clamps
7.16. Two/three-way solenoid valve
Loosen the screws holding
the solenoid valve to the
upper plate
Disconnect all electrical and water
circuit connections
