Philips EP5360/10 - Firmware Version Test (Page 0); High Voltage Loads Test (Heater, Grinder) (Page 5)

PHI 5000 04 DIAGNOSTIC MODE
2/8

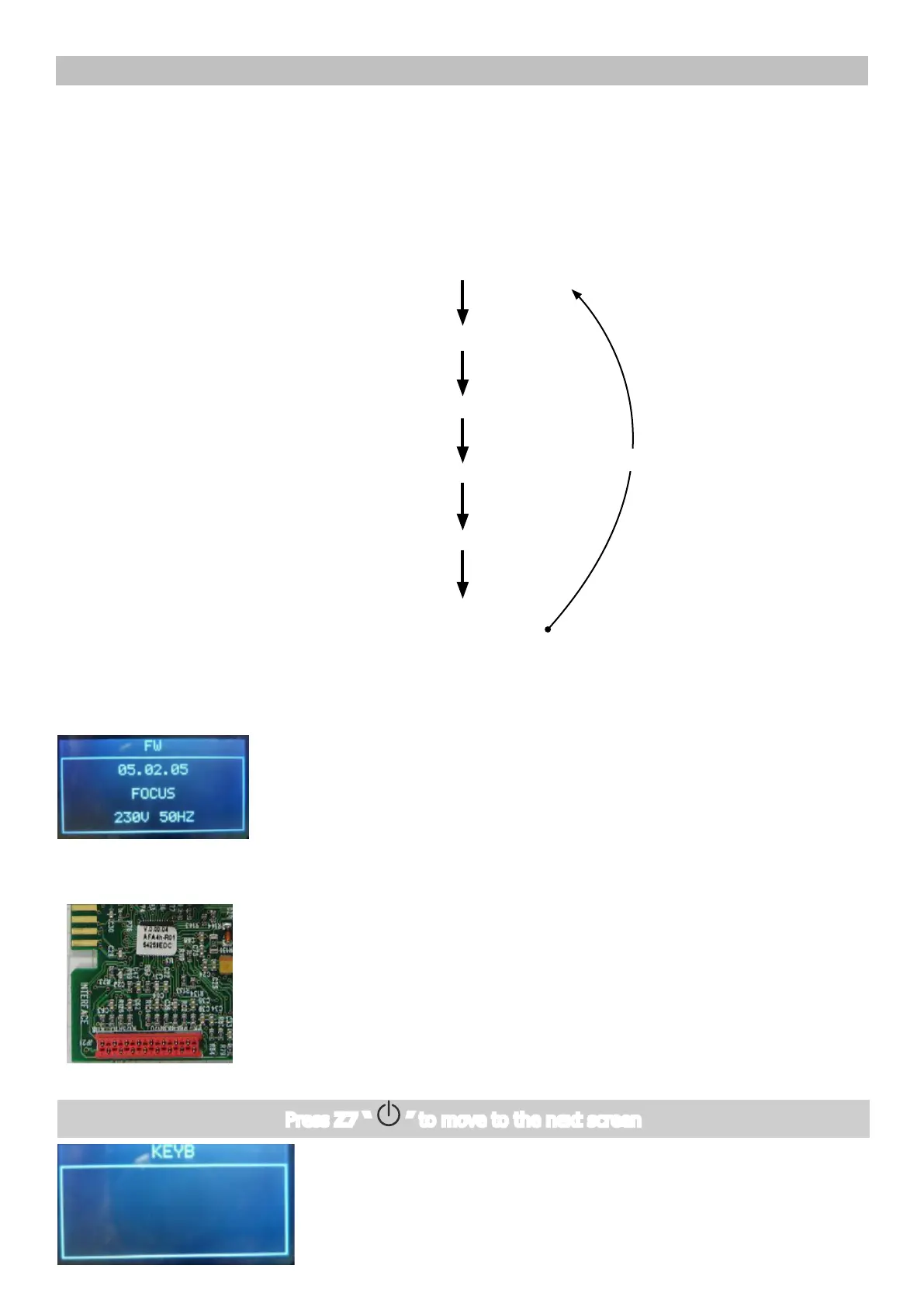

Verify the rmware version
Page 0 (FIRMWARE)
Firmware version on the display.
The machine model is shown (Focus ⇒CMF, Class ⇒AMF, Top ⇒OTC)
The voltage of the main supply “120 or 230V”
The frequency of the main supply is shown (50 or 60 Hz)
The rmware version is the same as the label on MicroController
ERROR: The rmware version is dierent from the label on MicroCon-
troller; change the CPU_POWER Boards !
ERROR: If in machine model eld is written “Unknow” and backlight
of display is Red, check the jumper in interface.
The machine passes to the Page 1 (KEYBOARD)
ERROR: The page does not change; Check the interface board and
the at cable (JP21)
Press Z7 “ ” to move to the next screen
Page 5: High voltage loads test (Heater , Grinder ):
a) Heater (230V AC and 120V AC)
b) Grinder (320V DC and 170V DC)
The user can change the page by pressing the Z7 button.
Page 0 is accessible only entering Test Mode from power-o mode; at the start up all loads are
turned o.
TEST MODE Level0
TEST MODE Level1
TEST MODE Level2
TEST MODE Level3
TEST MODE Level4
TEST MODE Level5
Pressing button Z7
Pressing button Z7
Pressing button Z7
Pressing button Z7
Pressing button Z7
Pressing button Z7
