Philips EP5360/10 - Water Circuit Diagram

PHI 5000 01 INTRODUCTION
4/9
Pump
Safety valve
Water
discharge
Steam pipe
Wa
ter tank
Two-way solenoid valve
Brewing Unit
Flowmeter
Boiler
Water
Hot water /steam
From this point circuit
High temperaure
From this point circuit
in pressure
Flowmeter
Steam and hot water
Two-way solenoid valve
Pump
Brewing Unit
Boiler
Safety valve
Water
discharge
Water tank
Image 1

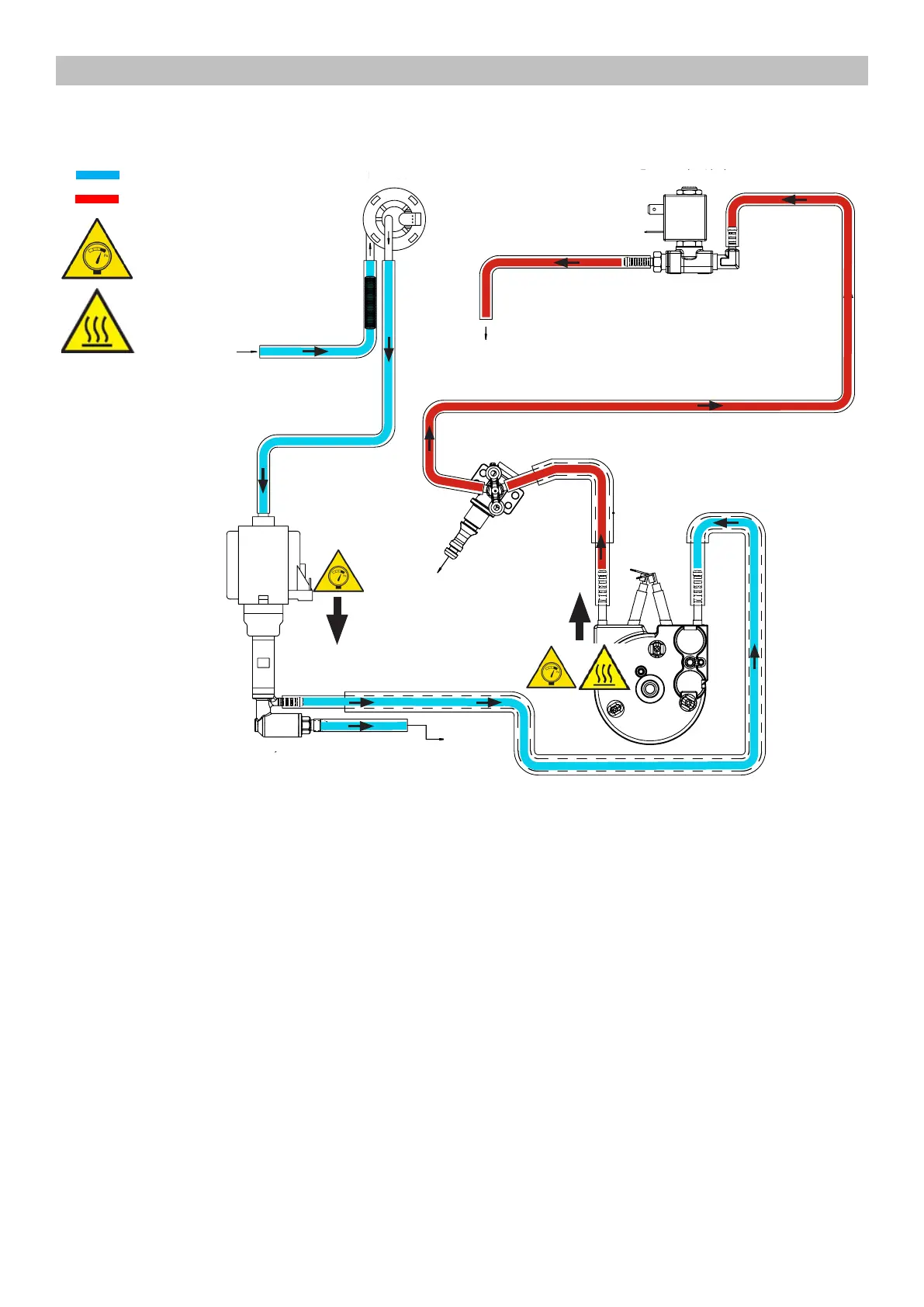

1.5. Water circuit diagram
