PHI 5000 04 DIAGNOSTIC MODE
4/8

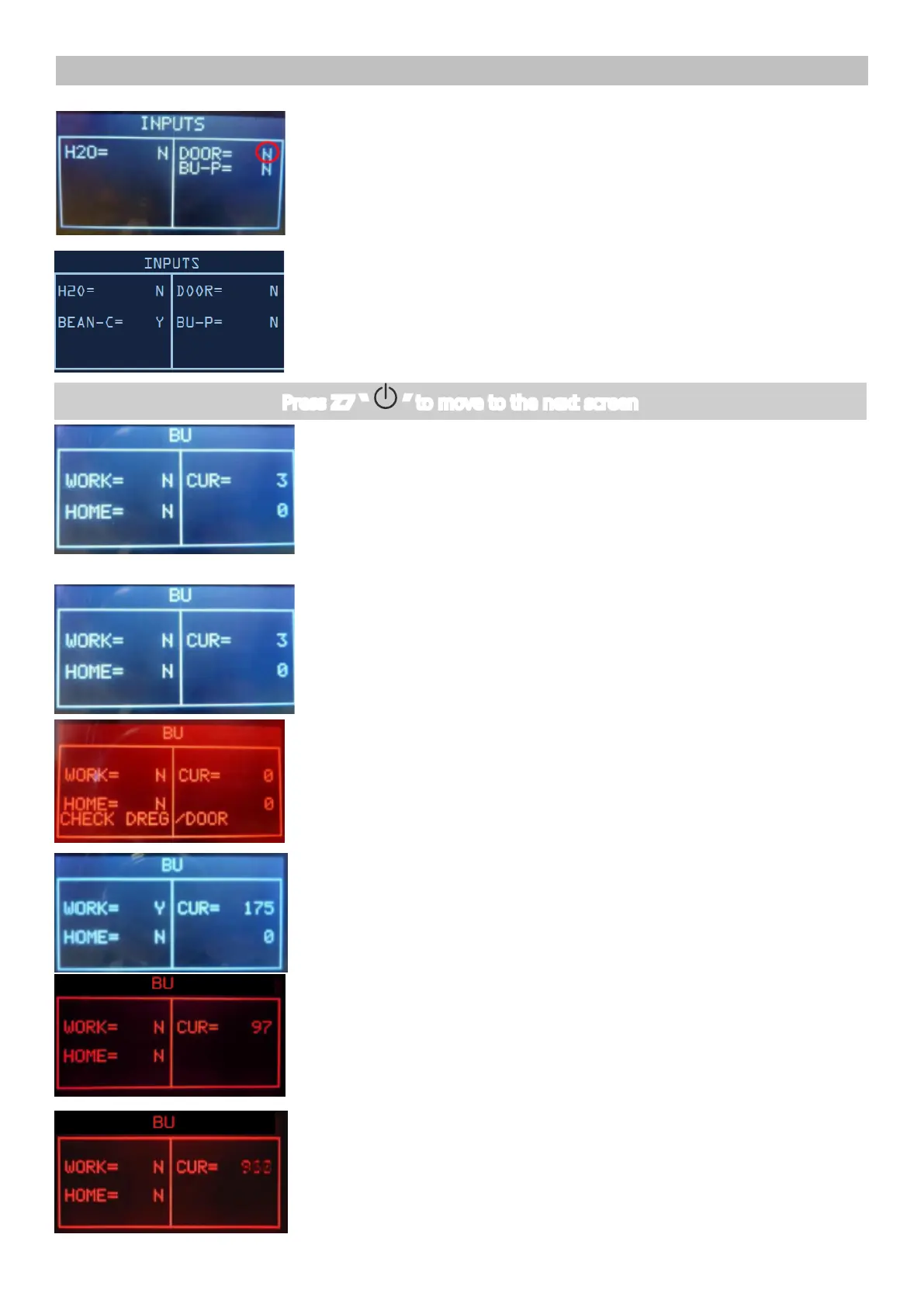

Close the Door and Dreg Drawer
The indication DOOR change from “N” to “Y”
ERROR: The indication DOOR does not change; check
the Microswitch for the door and the wiring (JP14).
Note: without the Dreg Drawer correctly inserted the DOOR indica-
tion cannot change!
The machine passes to the Page 3 (BU PAGE)
Press Z7 “ ” to move to the next screen
Page 3 (BU)
Start condition
Press the Z1 button to move the BU to Work
IMPORTANT NOTE: If the DREGDRAWER is not inserted or the
DOOR is not closed the BU test cannot be performed. If these 2
inputs are not in the right position, a warning message will be
shown and the display turns to red.
When the BU reaches the work position the indication WORK chang-
es from “N” to “Y”, the number of the current is less than 200mA
(without BU) or 300mA (with BU).
ERROR: The indication WORK doesn’t change and remain “N”,
the display backlight changes from white to red; Check the work
microswitch (broken?), the BU motor (blocked?) and the wiring
(JP16).
ERROR: (Without BU) The absorbed current is more than
200mA, the display backlight changes from white to red; check the
BU and the motor.
Close the Beans door (only for 120V)
The indication BEAN-C change from “N” to “Y”
ERROR: The indication BEAN-C does not change; check the
reed for the door and the wiring (JP25)
Test Mode Gaggia Anima 120V
Filename
20150707_GaggiaAnima_120V_TestMode_v01.doc
01 E. Urgese 07/07/2015 6/15
revNum
Author
Veried
Approved
SaveDate
P/PP
1.3 Page 2 (INPUTS)
Start condition
Insert a full
W
ater
T
ank
The indication
H
20
changes from “N” to “Y”.
NOTE: the switching from “N” to “Y” requires about 1-2 seconds.
ERROR: The indication TANK-H2O doesn’t change; check the
capacitive sensor (xing) and the wiring (JP23)
Insert the
BrewUnit
The indications
BU
-
P
changes from “N” to “Y”.
NOTE: removing the BrewUnit the indication from “Y” to “ N”
requires about 2-3 seconds to switch.
ERROR: Check the BU presence Microswitch and the wiring
(JP16).
Close the
D
oor
and
Dreg Drawer
The indication
DOOR
change from “N” to “Y”
ERROR: The indication
DOOR
does not change; check the
Microswitch for the door and the wiring (JP14). NOTE : without
the Dreg Drawer correctly inserted the DOOR indication cannot
change !
Close the
Beans door
The indication
BEAN
-
C
change from “N” to “Y”
