Mechanical Instruction
EN 15S/SD/HD 3.1 PDP 4.

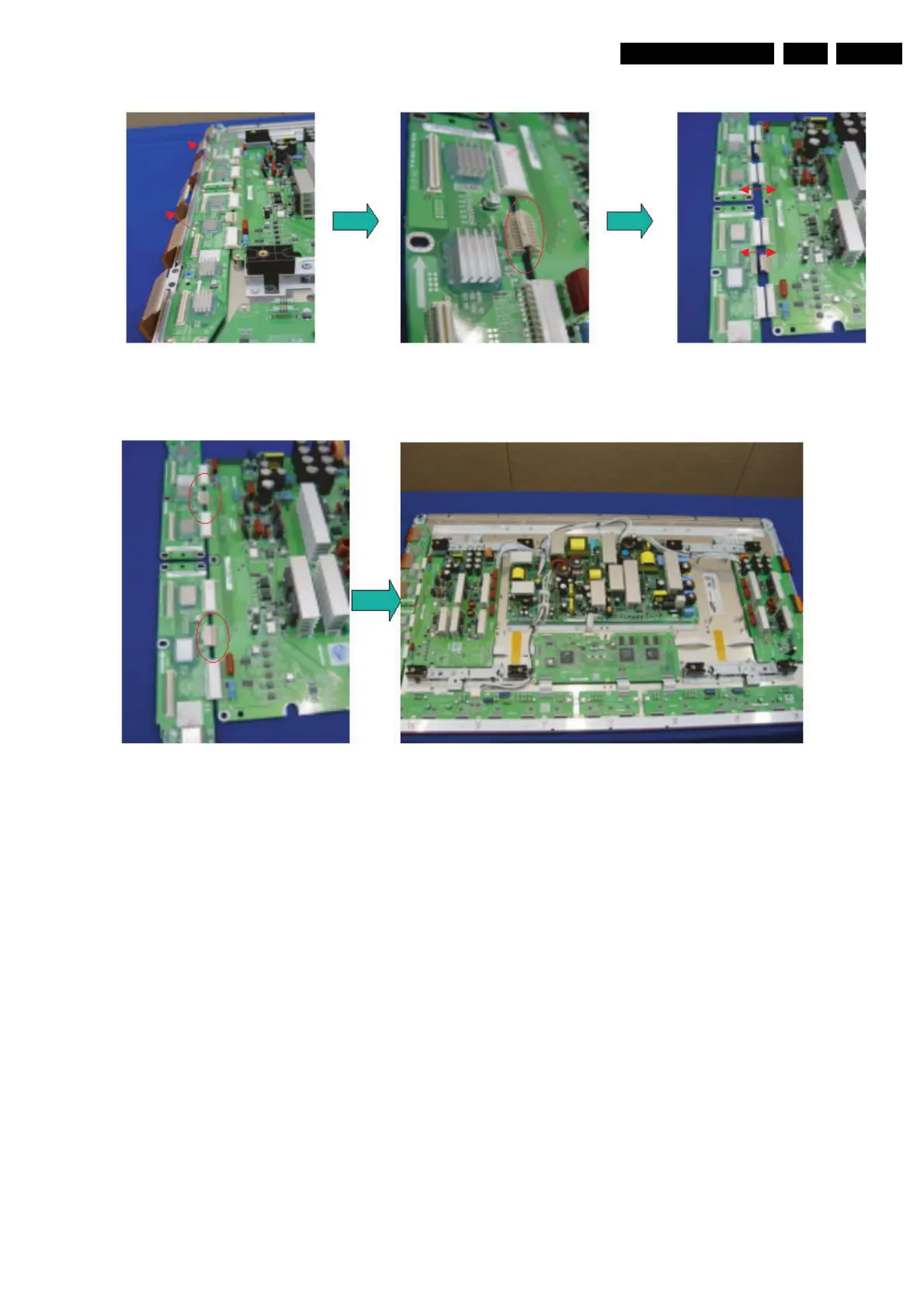

8. Reassemble the YBU and YBL to the Y-Main.
9. Connect the connector of CN5006 and CN5007 among
YBU, YBL and YM.
10. Arrange the board on the chassis and then screw to fix.
11. Connect the FPC and YM of panel to the connector.
12. Supply the electric power to the module and then check the
waveform of board.
13. Turn off the power after the waveform is adjusted.
To Next Page
