Mechanical Instruction
EN 9S/SD/HD 3.1 PDP 4.
4. Mechanical Instruction
4.1 Disassembling / Re-asssembling

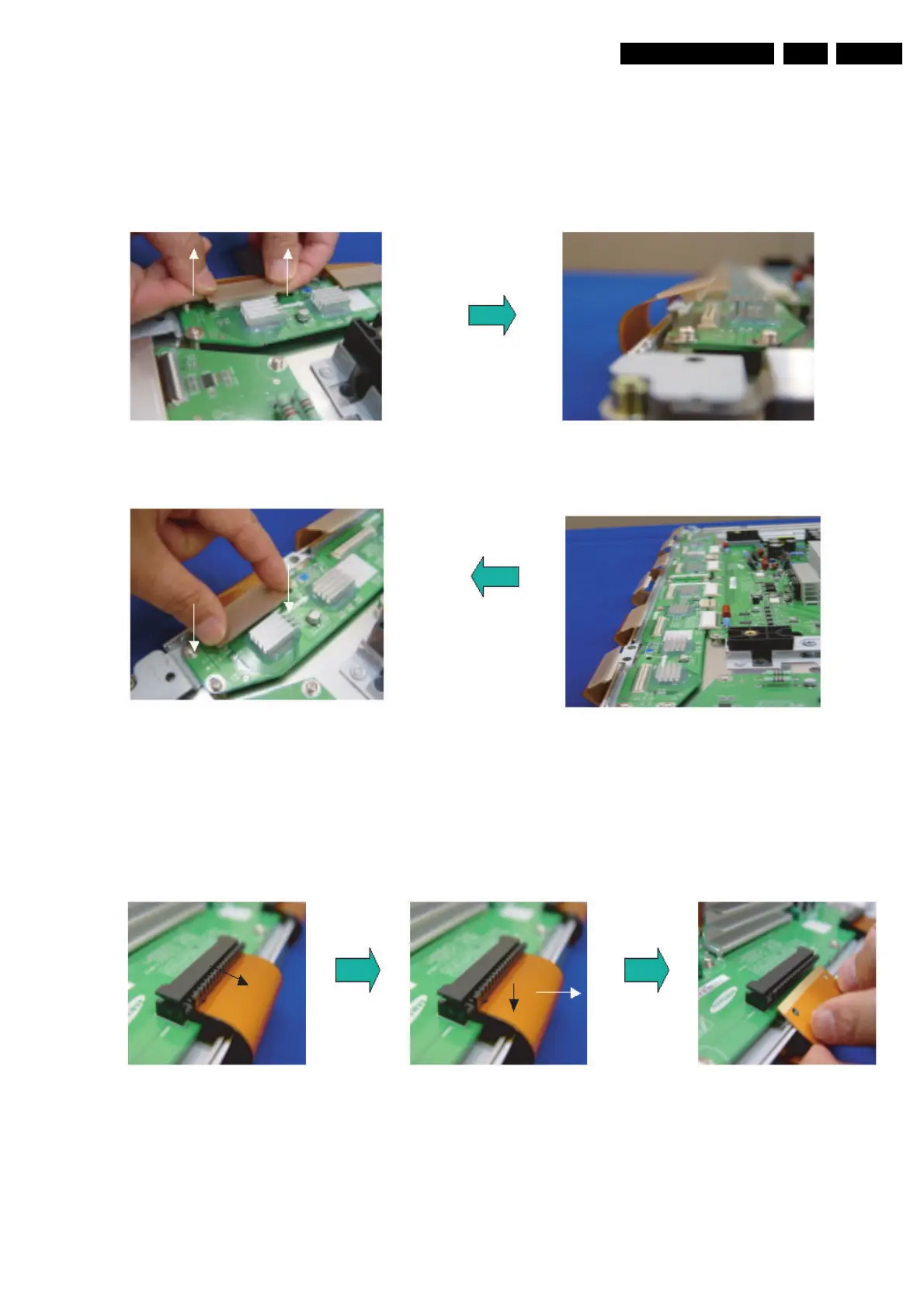

4.1.1 Disassembling & Re-assembling of FPC (Flexible Printed Circuit) and Y-Buffer (Upper and Lower)
1. Removal procedure
• Pull out the FPC from Connector by holding the lead of the
FPC with both hands.
2. Assembling procedures
• Push the lead of FPC with same force on both sides into
the connector.
Notice: Be careful do not get a damage on the connector pin
during connecting by mistake.
4.1.2 Assembling & Disassembling of Flat Cable Connector of X-main Board
1. Disassembling Procedure
• Pull out the clamp of connector.
• Pull Flat cable out press down lightly.
• Turn the Flat cable reversely.
To Next Page
