Mechanical Instruction
EN 10 S/SD/HD 3.1 PDP4.

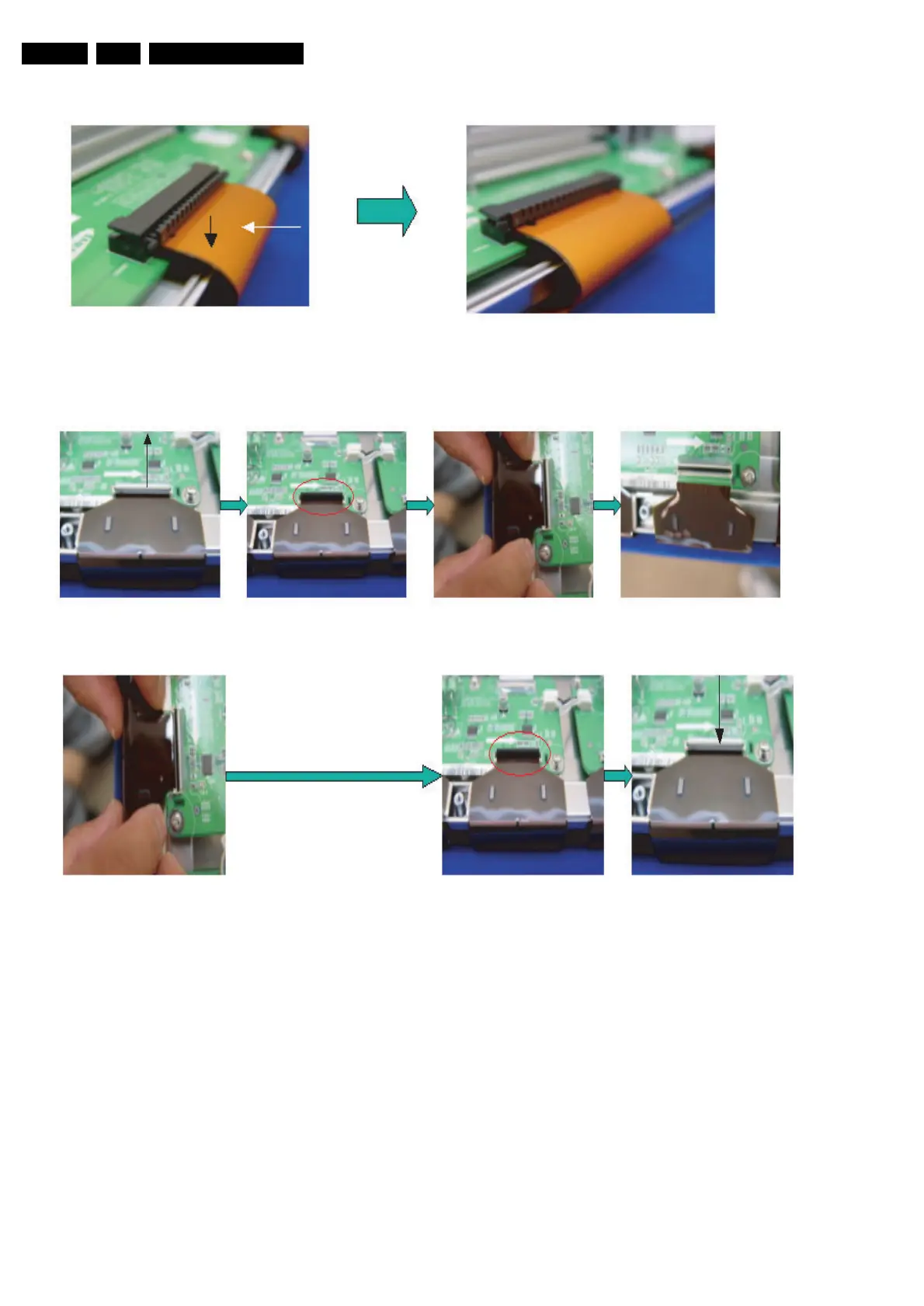

2. Assembling Procedures
• Put the Flat cable into the connector press down lightly until
locking sound (“Click.“) comes out.
4.1.3 Assembling & Disassembling the FFC and TCP form Connector
1. Disassembling of TCP
• Open the clamp carefully. • Pull the TCP out from connector.
2. Assembling of TCP
• Put the TCP into the Connector carefully
• Close the clamp completely.
(The sound “Click.” comes out.)
Notice:
• 1) Checking whether the foreign material is on the
Connector inside before assembling of TCP.
• 2) Be careful do not get a damage on the board by ESD
during handling of TCP.
To Next Page
