Mechanical Instruction
EN 11S/SD/HD 3.1 PDP 4.
3. Misassembling of TCP
• The misassembling of TCP is the cause of defect.
4. Assembling & Disassembling of FFC

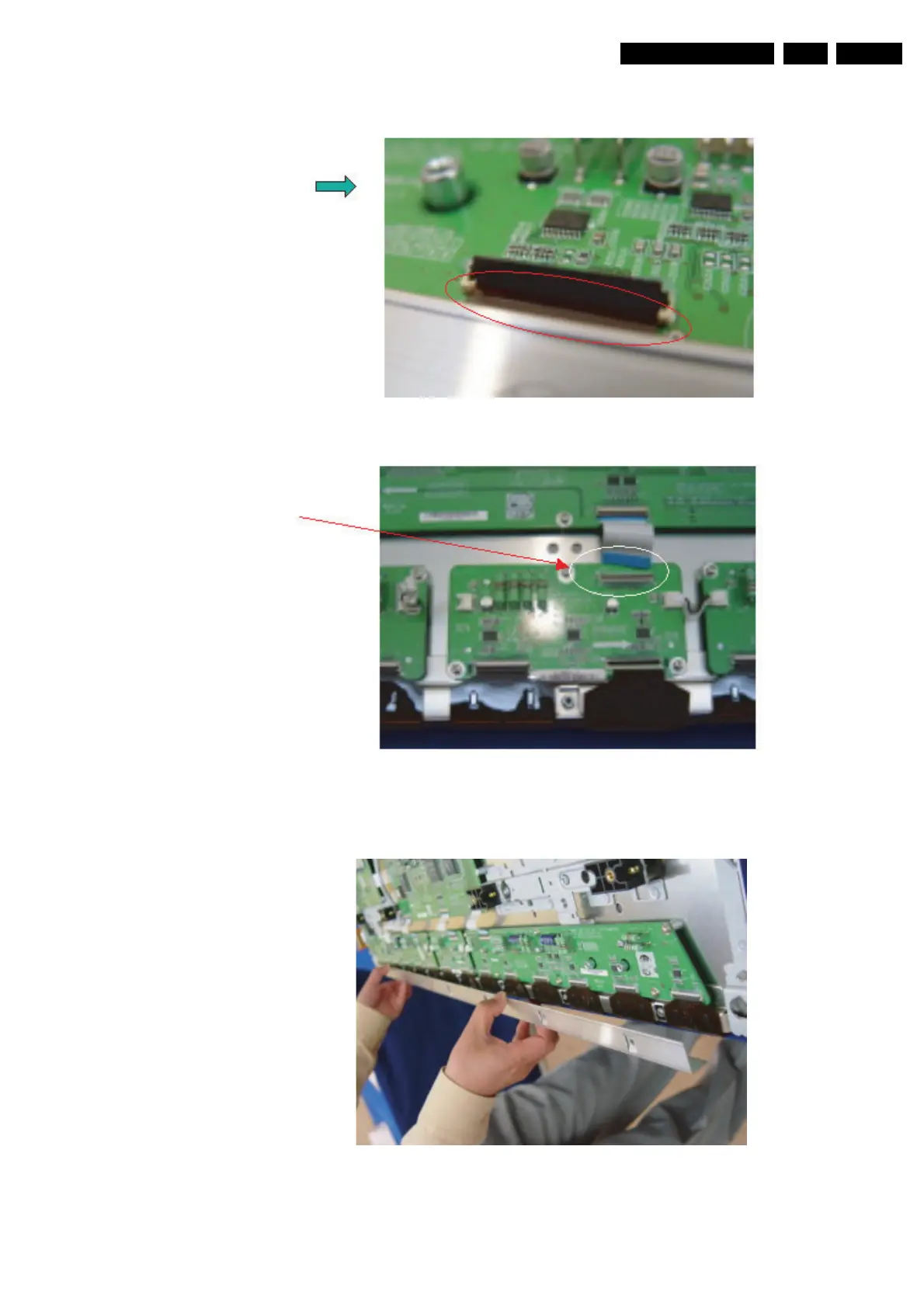

• This is the photo of the assembling of FFC.
4.1.4Exchange of LBE, LBF, LBG board
Photo 1
The procedure of
assembling and disassembling of
FFC is same as TCP
