Technical Specifications
EN 2 S/SD/HD 3.1 PDP1.

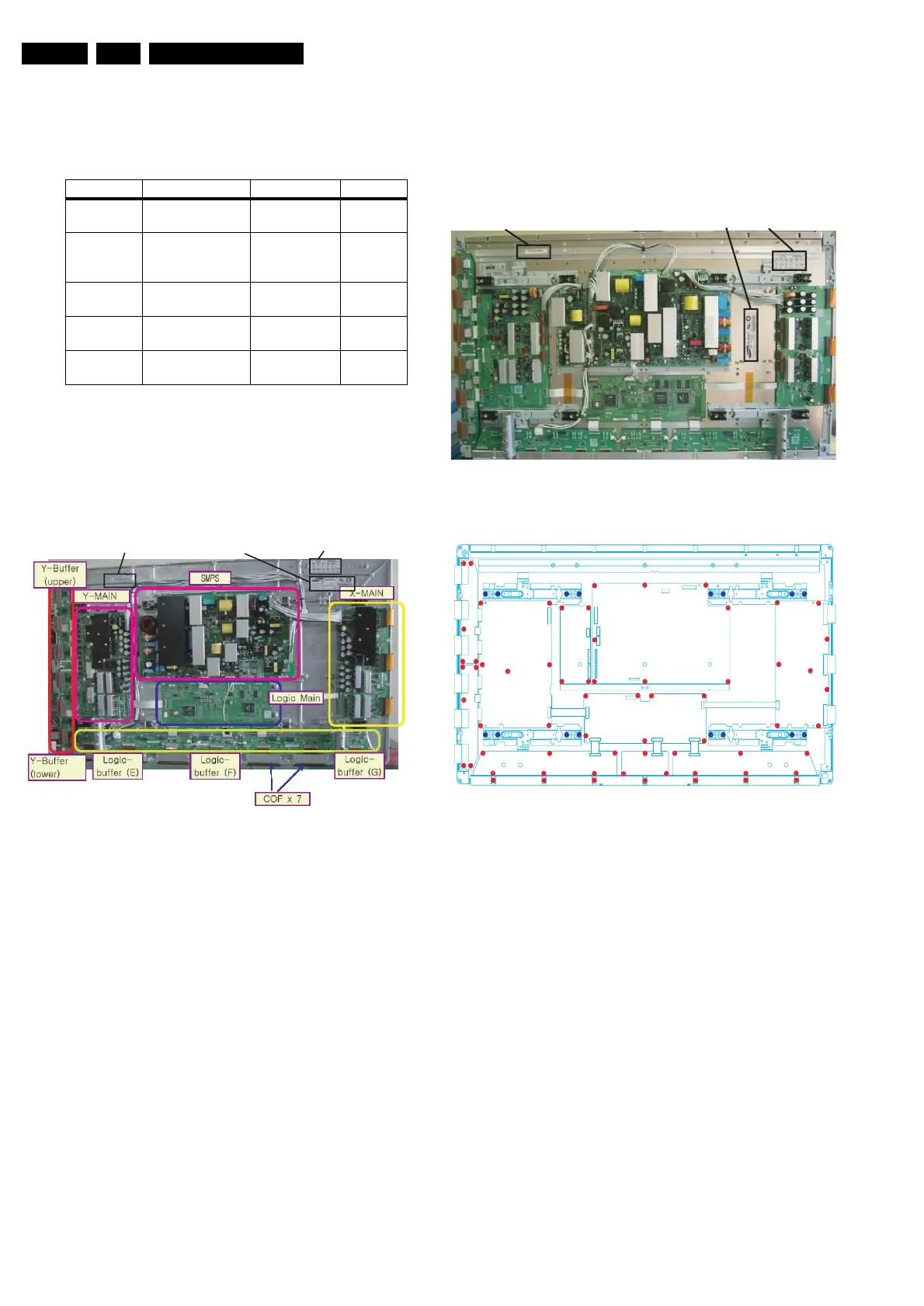

1. Technical Specifications
1.1 Model / Chassis overview
(*) are Model names with PSU, but only PDP model without
PSU will be delivered as spare part
42" SDv2
External View
M3 = X Board + Y Board + Logic Board + PSU + SUB PSU
Figure 1-1
42" SDv3
External View
M3 = X Board + Y Board + Logic Board + PSU + SUB PSU
Figure 1-2
Points of Screw Mount
Figure 1-3
PDP Type Model Name H x V Pixel Chassis
37”SDv4 S37SD-YD02 (*)
S37SD-YB01
852 x 480 LC4.7
42”SDv2 S42SD-YD06 (*)
S42SD-YB04
852 x 480 FM242
(FTV2.1)
FTP1.1
42”SDv3 S42SD-YD05 (*)
S42SD-YB03
852 x 480 LC4.7
FTP2.2x
42”HDv3 S42AX-XD03 (*)
S42AX-XB01
1024 x 768 FTP2.2U
50HDv3 S50HW-XD03 (*)
S50HW-XB02
1366 x 768 FTP2.2E
Serial number Model label Voltage label
Serial number label Model label Voltage label
