Aligments
EN 37S/SD/HD 3.1 PDP 8.
8.1.3 42" HDv3

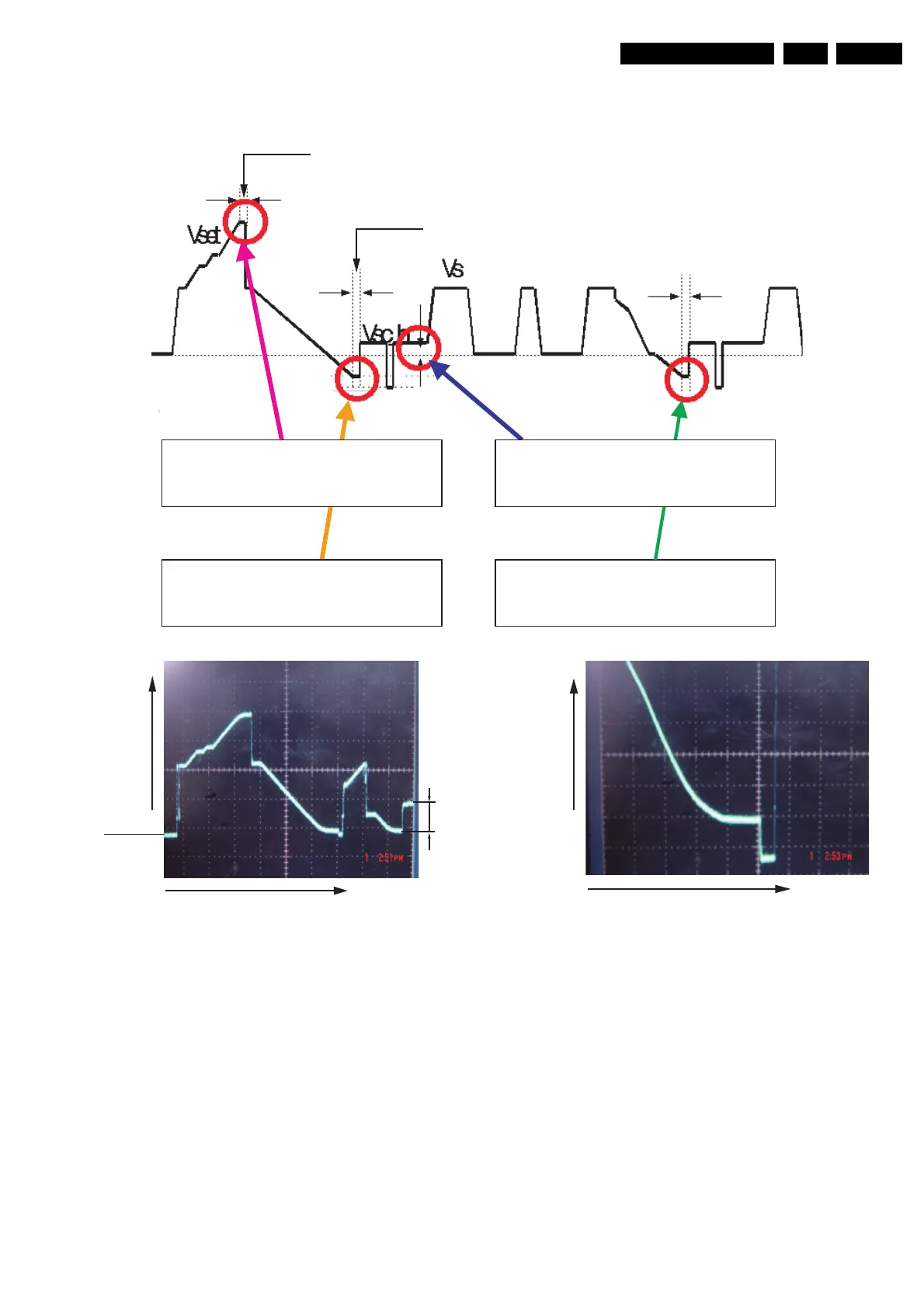

V3.1 TCP Ramp Waveform Inclination Adjustment (Y-Board)
Rising Ramp Falling Ramp
Adjust VR5003 to set the time of
Yfr (Falling Ramp_1st) 20 ㎲
Adjust VR5002 to set the time of
Yrr (Rising Ramp) 20 ㎲
Adjust VR5001 to set the time of
Yfr (Falling Ramp_3rd) 10 ㎲
Adjust VR5004 to set the voltage of
Vsch (Scan high voltage) 40 V
rising maintance time
falling maintance time
(V)
50V/div.
DC=0V
20µs/div.
(
t
)
40V
(V)
20V/div.
50µs/div.
(t)
