Aligments
EN 39S/SD/HD 3.1 PDP 8.
8.1.4 S37" SDv4

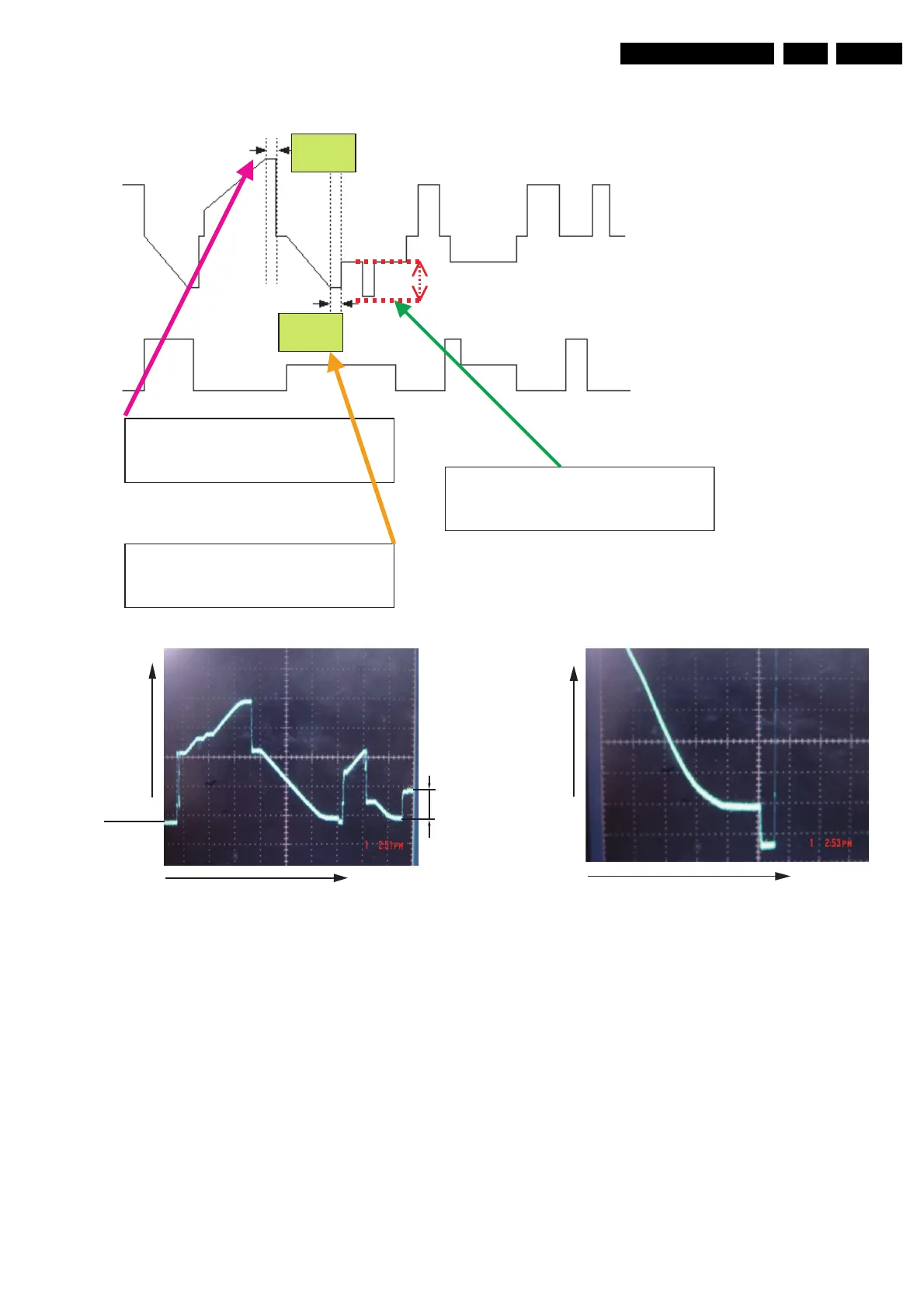

V3.1 TCP Ramp Waveform Inclination Adjustment (Y-Board)
Rising Ramp Falling Ramp
Adjust VR5002 to set the time of Yfr
(Falling Ramp_1st) 16 µs
Adjust VR5000 to set the time of
38 V
40 µs
16 µs
Adjust VR5001 to set the time of
Yrr( Rising Ramp) 40 µs
(V)
50V/div.
DC=0V
20µs/div.
(
t
)
40V
(V)
20V/div.
50µs/div.
(t)
