Philips FR975 - Page 66

1961 2422 026 05158 SOC MDIN H 4P
1962 2422 026 05158 SOC MDIN H 4P
1963 2422 026 05158 SOC MDIN H 4P
1964 2422 026 05158 SOC MDIN H 4P
1965 2422 026 05158 SOC MDIN H 4P
2859 4822 124 11947 10UF 20% 16V
2870 4822 124 11947 10UF 20% 16V
2889 4822 124 11947 10UF 20% 16V
2890 4822 124 11947 10UF 20% 16V
2960 4822 126 14585 100NF 10% 50V
2961 5322 122 34098 10NF10% 63V
2962 4822 124 41643 100UF 20% 16V
2963 5322 122 32654 22NF10% 63V
2964 5322 122 34098 10NF10% 63V
2966 4822 126 14585 100NF 10% 50V
2968 5322 122 32654 22NF10% 63V
2969 4822 126 14585 100NF 10% 50V
2970 4822 124 22651 1UF20% 50V
2971 4822 124 11947 10UF 20% 16V
2972 4822 126 13692 47PF 1% NP0 63V
2973 4822 126 14585 100NF 10% 50V
2975 4822 126 14585 100NF 10% 50V
2977 5322 122 32654 22NF10% 63V
2980 4822 126 14585 100NF 10% 50V
2981 5322 122 34098 10NF10% 63V
2982 4822 124 41643 100UF 20% 16V
2983 4822 124 22651 1UF20% 50V
2984 5322 122 34098 10NF10% 63V
2985 4822 124 41643 100UF 20% 16V
2986 4822 126 14585 100NF 10% 50V
2988 4822 126 14585 100NF 10% 50V
2989 4822 124 22651 1UF20% 50V
2991 5322 122 32654 22NF10% 63V
2992 4822 126 13692 47PF 1% NP0 63V
2994 4822 126 14585 100NF 10% 50V
2995 4822 126 14585 100NF 10% 50V
2996 5322 122 32654 22NF10% 63V
2997 4822 124 41643 100UF 20% 16V
2998 4822 124 22651 1UF20% 50V
2999 4822 124 11947 10UF 20% 16V
3861 4822 051 20109 10R00 5% 0,1W
3862 4822 051 20109 10R00 5% 0,1W
3863 4822 051 20109 10R00 5% 0,1W
3961 4822 117 12521 68R 1% 0,1W
3962 4822 117 11449 2K2 1% 0,1W
3964 4822 117 12521 68R 1% 0,1W
3965 4822 051 20471 470R00 5% 0,1W
3966 4822 117 11504 270R 1% 0.1W
3967 4822 117 12521 68R 1% 0,1W
3968 4822 051 20109 10R00 5% 0,1W
3969 4822 117 11503 220R 1% 0.1W
3970 4822 117 12521 68R 1% 0,1W
3971 4822 117 12521 68R 1% 0,1W
3972 4822 051 20121 120R00 5% 0,1W
3973 4822 117 12521 68R 1% 0,1W
12-4
PCS 105 734
12-3

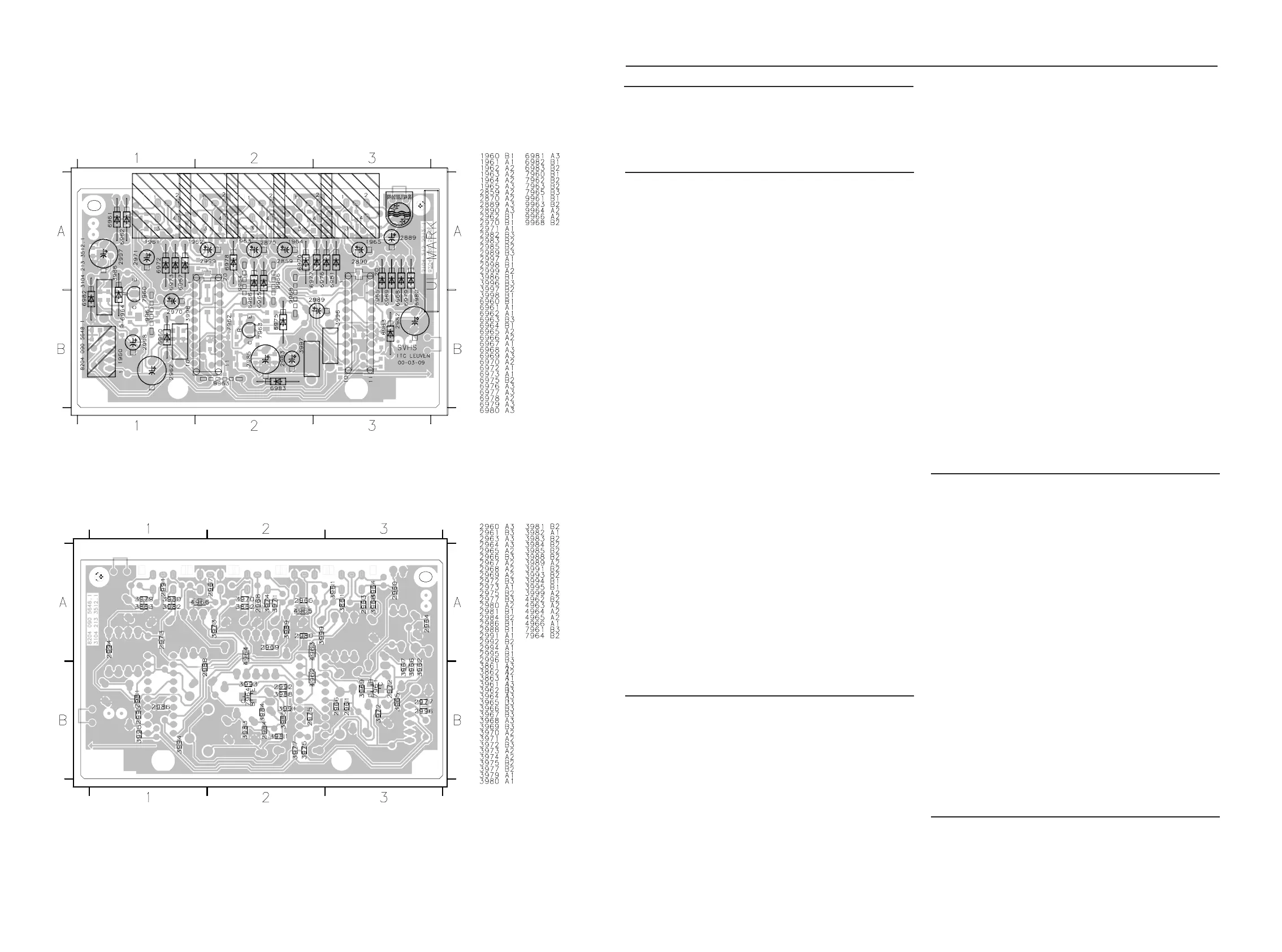

S-VHS VIDEO SELECTOR BOARD
Component side view
Copperside view
ELECTRICAL PARTSLIST - S-VHS VIDEO SELECTOR BOARD
3974 4822 051 20109 10R00 5% 0,1W
3975 4822 051 10102 1K00 2% 0,25W
3977 4822 051 10102 1K00 2% 0,25W
3979 4822 117 12521 68R 1% 0,1W
3980 4822 117 12521 68R 1% 0,1W
3981 4822 117 11449 2K2 1% 0,1W
3982 4822 051 20109 10R00 5% 0,1W
3983 4822 051 20471 470R00 5% 0,1W
3984 4822 117 11504 270R 1% 0.1W
3985 4822 117 12521 68R 1% 0,1W
3986 4822 053 10101 100R00 5% 1W
3988 4822 117 11503 220R 1% 0.1W
3989 4822 117 12521 68R 1% 0,1W
3991 4822 051 20121 120R00 5% 0,1W
3993 4822 117 12521 68R 1% 0,1W
3994 4822 051 10102 1K00 2% 0,25W
3995 4822 051 10102 1K00 2% 0,25W
3996 4822 053 10101 100R00 5% 1W
3997 4822 053 10101 100R00 5% 1W
3998 4822 053 10101 100R00 5% 1W
3999 4822 117 12521 68R 1% 0,1W
4962 4822 051 20008 0R00 JUMP. (0805)
4963 4822 051 20008 0R00 JUMP. (0805)
4964 4822 051 20008 0R00 JUMP. (0805)
4965 4822 051 20008 0R00 JUMP. (0805)
4966 4822 051 20008 0R00 JUMP. (0805)
6960 4822 130 34174 BZX79-B4V7
6961 4822 130 34278 BZX79-B6V8
6962 4822 130 34278 BZX79-B6V8
6963 4822 130 34174 BZX79-B4V7
6964 4822 130 30621 1N4148
6965 4822 130 34278 BZX79-B6V8
6966 4822 130 34278 BZX79-B6V8
6967 4822 130 34278 BZX79-B6V8
6968 4822 130 34278 BZX79-B6V8
6969 4822 130 34278 BZX79-B6V8
6970 4822 130 34278 BZX79-B6V8
6972 4822 130 34278 BZX79-B6V8
6973 4822 130 34278 BZX79-B6V8
6975 4822 130 30621 1N4148
6976 4822 130 34278 BZX79-B6V8
6977 4822 130 34278 BZX79-B6V8
6978 4822 130 34278 BZX79-B6V8
6979 4822 130 34278 BZX79-B6V8
6980 4822 130 34278 BZX79-B6V8
6981 4822 130 34278 BZX79-B6V8
6982 4822 130 34382 BZX79-B8V2
6983 4822 130 34382 BZX79-B8V2
7960 4822 130 44568 BC557B
7961 4822 130 60511 BC847B
7962 4822 209 16886 STV6401
7963 4822 130 44568 BC557B
7964 4822 130 60511 BC847B
7965 4822 209 16886 STV6401
MISCELLANEOUS
CAPACITORS
RESISTORS
DIODES
TRANSISTORS
