EN 2 FTL2.4E AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connections
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD, VA
Screen size : 32” (82 cm), 16:9
Resolution (HxV pixels) : 1366(*3)x768 WXGA
Contrast ratio : 800:1 (32-inch)
Light output (cd/m
2
) : 500 (32-inch)
LCD response time (ms) : 12
Viewing angle (HxV degrees) : 176 (32-inch)
Tuning system : PLL
Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
Supported computer formats (60 Hz) : VGA (640x480)
: SVGA (800x600)
: XVGA (1024x768)
: WXGA (1280x768)
Supported video formats : 640x480i - 1fH
: 720x576i - 1fH
: 640x480p - 2fH
: 720x576p - 2fH
: 1920x1080i - 2fH
: 1920x1152i - 2fH
: 1280x720p - 3fH
AV (playback only) : NTSC, PAL, SECAM
Tuner bands : UHF, VHF, S, Hyper
1.1.2 Sound
Sound systems : AV stereo,
:FM/FM B/G
: NICAM B/G, D/K, I
Maximum power (W
RMS
) : 2 x 15 (int.)
1.1.3 Miscellaneous
Mains voltage (V
AC
) : 220 - 240
Mains frequency : 50 / 60 Hz
Ambient temperature (qC) : +5 to +40
Maximum humidity (R.H>) : 90%
Power consumption
- Normal operation (W) : 145 (32-inch)
- Stand-by (W) : < 2
1.2 Connections
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
1.2.1 Side I/O

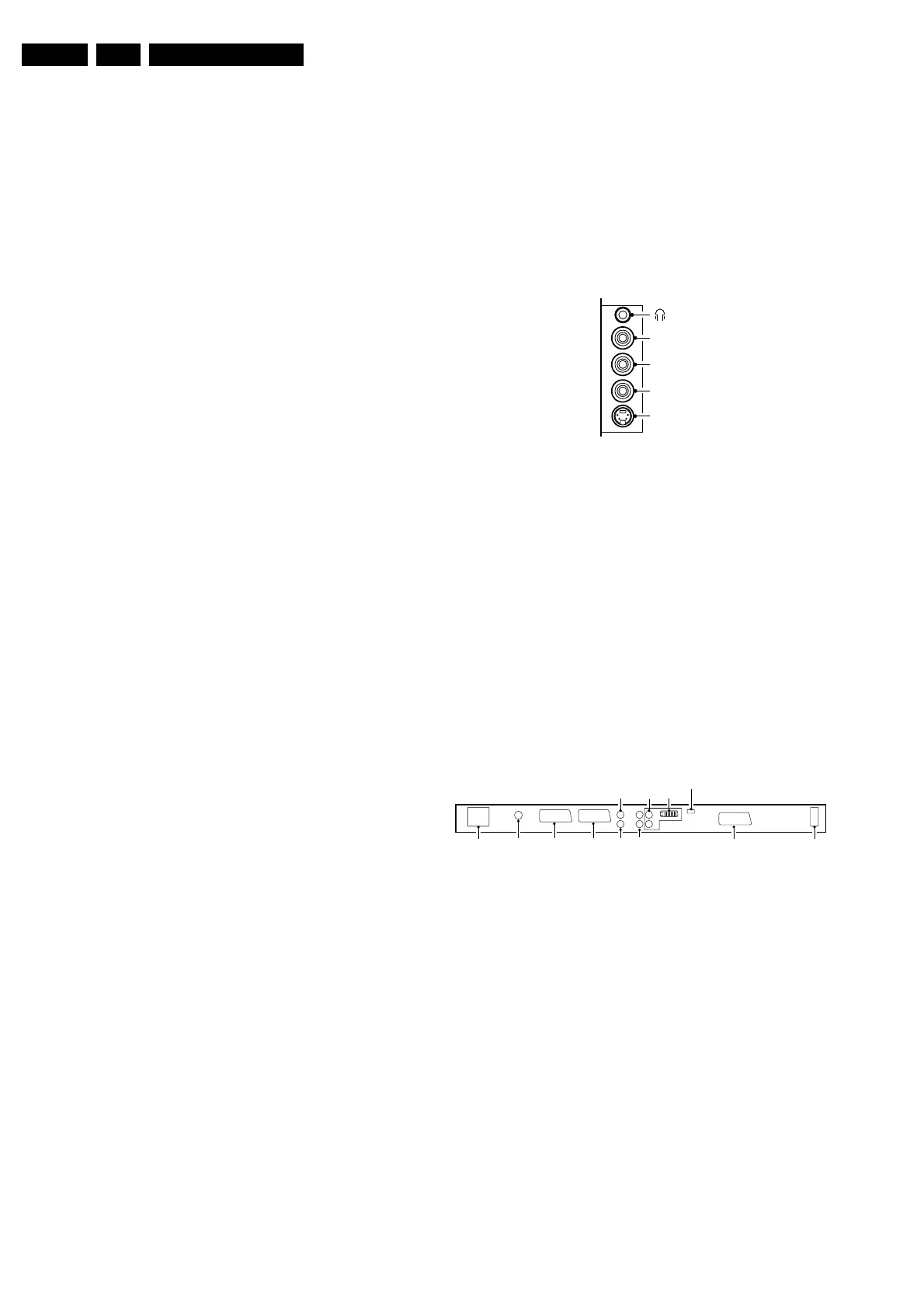

Figure 1-1 Side I/O connections
Headphone (Output)
- Headphone 32 - 600 ohm / 10 mW ot
Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
SVHS (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
1.2.2 Rear Connections
Figure 1-2 Rear connections
Aerial - In
- IEC-type Coax, 75 ohm D
E_14620_022.eps
050404
SIDE I/O
SVHS
CVBS
R
AUDIO
L
E_14620_023.eps
170604
AERIAL IN EXT2 EXT1
R
L
R
L
EXT3
SUBW
OUT
CENTRE
IN
DVI
SERVICE
AUDIO
OUT
AUDIO
IN
MAINS
(LCD SETS)
MAINS
(PLASMA SETS)
