Mechanical Instructions
EN 9FTL2.4E AA 4.
1. Disconnect all cables from the AmbiLight Inverter panel.
2. Remove all mounting screws [1] from the AmbiLight
Inverter panel.
3. Take out the panel.

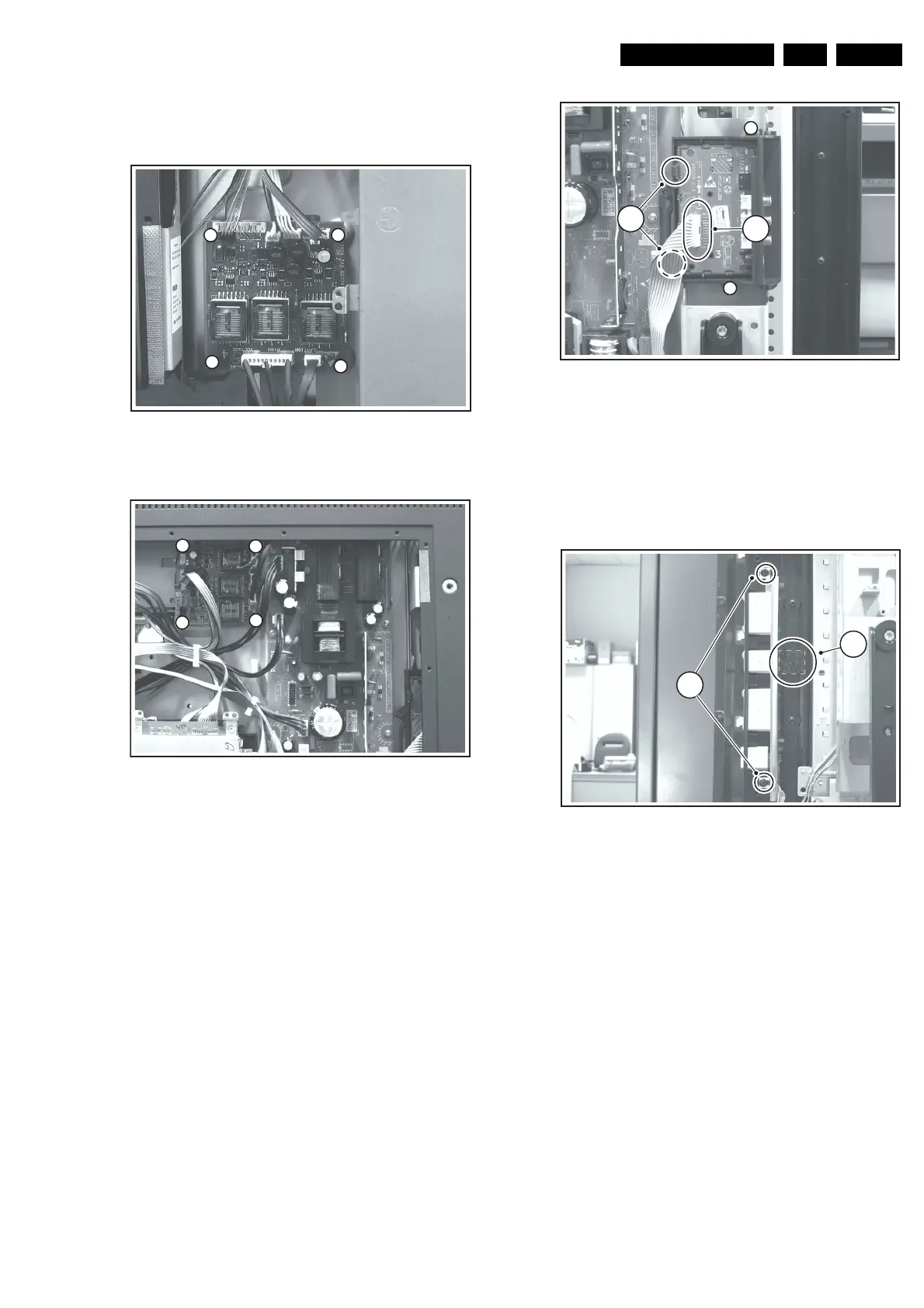

Figure 4-6 AmbiLight inverter (left lower side)
Figure 4-7 AmbiLight inverter (right upper side)
4.3.5 3th SCART Panel
1. Disconnect all cables from the 3th SCART panel.
2. Remove the two mounting screws near the SCART
connector at the connector plate (see [7] in figure
“Connector plate” further on).
3. Take out the panel.
4.3.6 Stand-by Supply/Audio Panel
1. Disconnect all cables from the Stand-by Supply/Audio
panel.
2. Remove all T10 mounting screws at the top of the Stand-
by Supply/Audio panel.
3. Take out the panel (it hinges at the bottom side).
4.3.7 Side I/O Panel
1. Disconnect the cable [1] from the Side I/O panel.
2. Remove the assy mounting screws [2].
3. Take out the assy.
4. Release the clamps [3] and take out the panel.
Figure 4-8 Side I/O panel
4.3.8 (Top) Control Panel
1. Remove the glued foam block [1].
2. Remove the assy mounting screws [2].
3. Take out the assy.
4. Release the clamps and take out the panel.
Figure 4-9 Local keyboard
4.3.9 LED Panel
1. Disconnect all cables from the LED panel.
2. Remove the mounting screws from the LED panel.
3. Take out the panel.
4.3.10 Speakers
1. After removal of the cover plate, you can access the
speakers.
2. Be sure that the foam that makes the unit airtight is not
damaged. Otherwise replace it.
F_15490_014.eps
230605
1
1
1
1
F_15490_013.eps
230605
1
1
1
1
F_15490_024.eps
240605
2
2
3
1
F_15490_016.eps
240605
1
2
