Philips HTS3440 - Step 5: Connecting to TV; Option 1: Using the Video (CVBS) Jack (Good Picture Quality); Option 2: Using the S-Video Jack (Excellent Picture Quality)

16
English
R
L
Option 1
Option 2
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Basic Connections (continued)

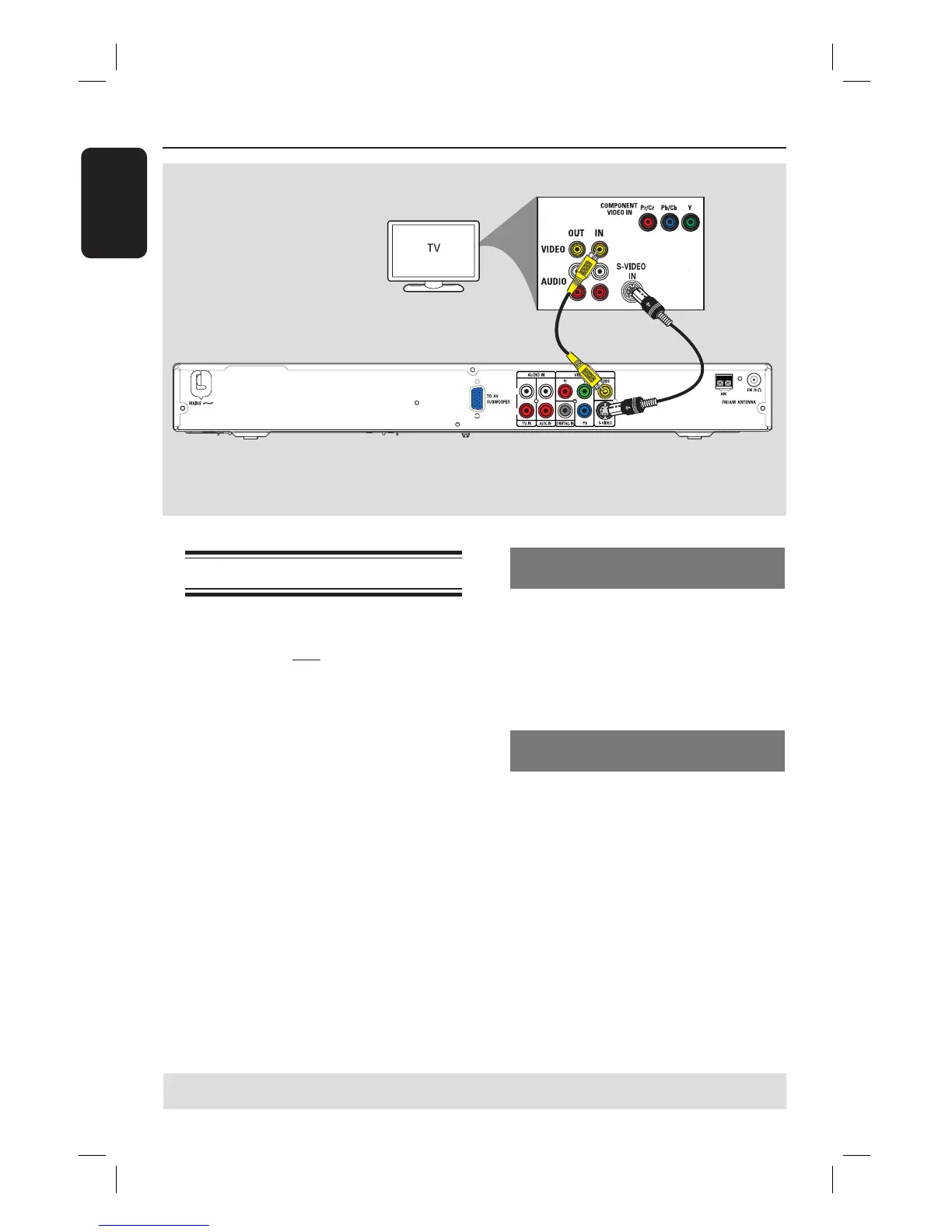

Step 5: Connecting to TV
This connection enables you to view the
playback from this DVD system. You only
need to choose one of the options
below to make the video connection.
– For a standard TV, follow option 1 or
2.
– For a progressive scan TV, follow
option 3.
– For TV with only a single antenna
input jack, follow option 4.
IMPORTANT!
Connect the DVD system directly
to the TV.
Option 1: Using the Video (CVBS)
jack (good picture quality)

Use the supplied composite video cable
(yellow) to connect the CVBS jack on
the DVD system to the video input jack
(or labelled as A/V In, Video In,
Composite or Baseband) on the TV.
Option 2: Using the S-Video jack
(excellent picture quality)

Use an S-video cable (not supplied) to
connect the S-VIDEO (Y/C) jack on the
DVD system to the S-Video input jack
(or labelled as Y/C or S-VHS) on the TV.
